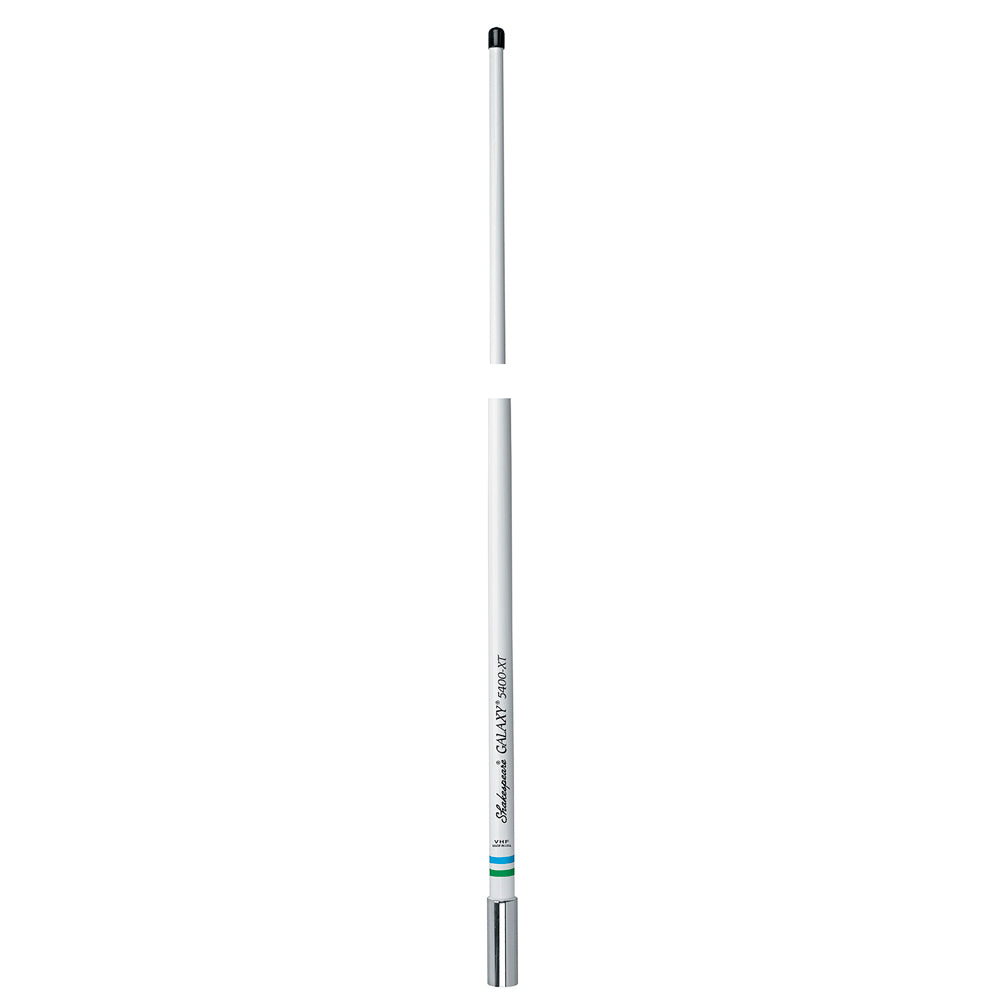

Shakespeare 5400-XT Galaxy 4' VHF Antenna - 5400-XT
Manufacturer Part #: 5400-XT
Couldn't load pickup availability
Shakespeare 5400-XT Galaxy 4' VHF Marine Antenna – 5400-XT
The Shakespeare 5400-XT Galaxy Antenna is a compact, high-performance 4-foot marine VHF antenna engineered for reliable communication on boats where space is limited but performance still matters. Ideal for powerboats, sailboats, center consoles, and smaller cruisers, this antenna delivers clear VHF transmission and reception in near-shore and inland waters.
Featuring Shakespeare’s Galaxy™ design, the 5400-XT provides improved efficiency and signal clarity compared to standard short VHF antennas. Its 3 dB gain offers balanced performance for short-to-medium range communication, making it well suited for coastal cruising, day boating, and inland waterways.
Constructed with a durable white fiberglass radome, the antenna is built to withstand harsh marine environments, including UV exposure, salt spray, vibration, and weather extremes. The 5400-XT is compatible with standard marine antenna mounts (sold separately) and integrates easily with most marine VHF radios.
Trusted by boaters worldwide, Shakespeare Galaxy antennas are known for their durability, consistent performance, and long service life.
Key Performance Features
-
High-Strength Radome: Extra-thick fiberglass construction designed specifically for high-speed boats and extreme weather conditions.
-
3dB Gain: Provides a broad, hemispherical radiation pattern, which is ideal for smaller vessels that pitch and roll, ensuring your signal stays connected to the horizon.
-
Stainless Steel Ferrule: Includes a heavy-duty 1"-14 thread stainless steel mounting nut for a professional, secure installation.
-
Low-Loss Cable: Pre-wired with 20 feet of RG-8/X "low-loss" coaxial cable, which provides significantly better signal retention than standard RG-58.
-
Brass and Copper Elements: High-quality internal components maximize range and reception clarity.
Technical Specifications
| Feature | Details |
| Model Number | 5400-XT |
| Length | 4 Feet (1.2 Meters) |
| Gain | 3dB |
| VSWR | Less than 1.5:1 at 156.8 MHz |
| Mounting | 1"-14 Thread (Stainless Steel Ferrule) |
| Cable / Connector | 20' RG-8/X with PL-259 |
| Material | High-Gloss Fiberglass |
In The Box
-
1 x Shakespeare 5400-XT Galaxy Antenna
-
1 x 20-foot RG-8/X Coaxial Cable (Pre-attached)
-
1 x PL-259 Connector (Included, requires installation after routing cable)
Are you mounting this on a folding ratchet mount?
Because the 5400-XT is built with a heavier radome, I recommend using a stainless steel ratchet mount rather than plastic to ensure the base can handle the leverage. Would you like me to suggest a compatible heavy-duty mount for your installation?
The Shakespeare 5400-XT Galaxy 4' VHF Marine Antenna – 5400-XT is an excellent choice for boaters seeking dependable VHF performance in a space-saving antenna design.
Manufacturer : Shakespeare
Manufacturer Part No : 5400-XT
UPC : 719441100605
