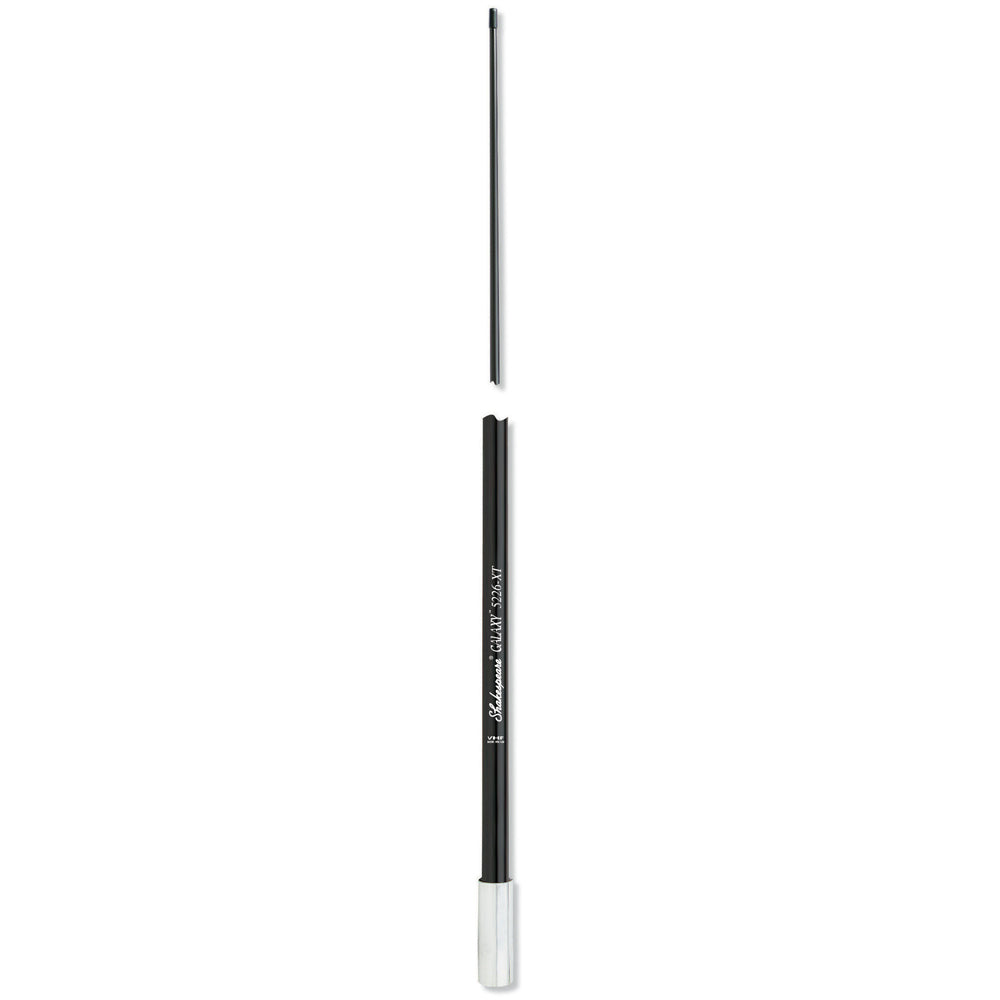

Shakespeare 5226-XT 8' Black VHF Antenna - 5226-XT

Shakespeare 5226-XT 8' Black VHF Antenna - 5226-XT

Shakespeare Galaxy Style 5226-XT
8 VHF 6dB Gain
Collinear-phased 5/8 wave elements

EXTRA TOUGH!

This antenna is the same as Style 5225-XT, but with the exclusive Galaxy gloss black finish. Its Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

• Brass and copper elements for maximum range and efficiency

• Stainless steel ferrule with standard 1 inch-14 thread

• 20 RG-8/X low-loss cable plus a PL-259 connector

• Suggested mount: Shakespeare Style 4187 Ratchet Mount

• One section

• Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	3 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Impedance:	50 ohms
Gain:	6 dB
Max Input (Watts):	100 watts
DC Ground:	YES
Height (feet):	8
Polarization:	Vertical

Product : SHAKESPEARE VHF 8FT 5226-XT BLACK GALAXY
Manufacturer : SHAKESPEARE
Manufacturer Part No : 5226-XT
UPC : 719441200237
