Shakespeare 5225-XT 8' VHF Galaxy Antenna 6dB Gain - 5225-XT

Shakespeare 5225-XT 8' VHF Galaxy Antenna 6dB Gain - 5225-XT

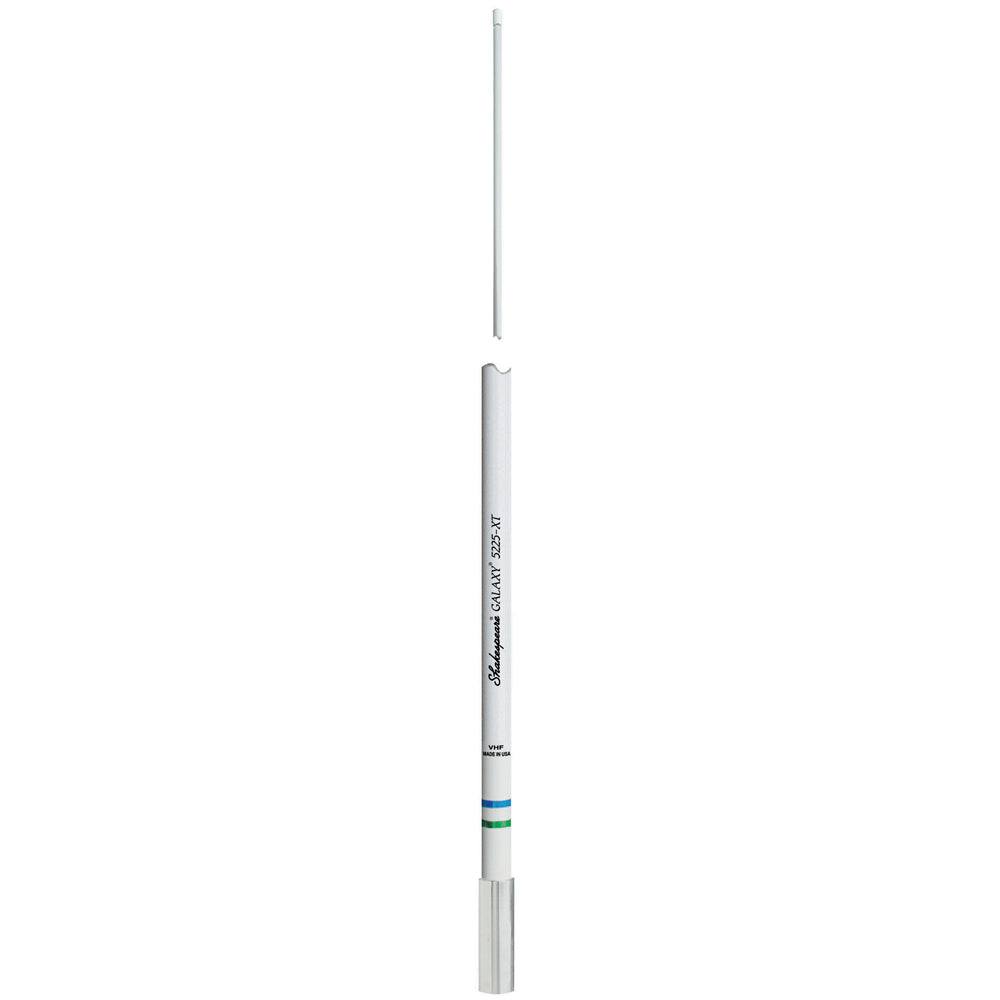

5225-XT 8' VHF Galaxy Antenna 6dB Gain

Collinear-phased 5/8 wave elements

EXTRA TOUGH!

Shakespeare's best 8', 6dB Gain antenna. Its Galaxy design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1 inches-14 thread
• 20' RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: nominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Max Input (Watts): 100 watts
• DC Ground: YES
• Height (feet): 8'
• Polarization: Vertical

Product : SHAKESPEARE VHF 8FT 5225-XT GALAXY
Manufacturer : Shakespeare
Manufacturer Part No : 5225-XT
UPC : 719441200220
Product : SHAKESPEARE VHF 8FT 5225-XT GALAXY
