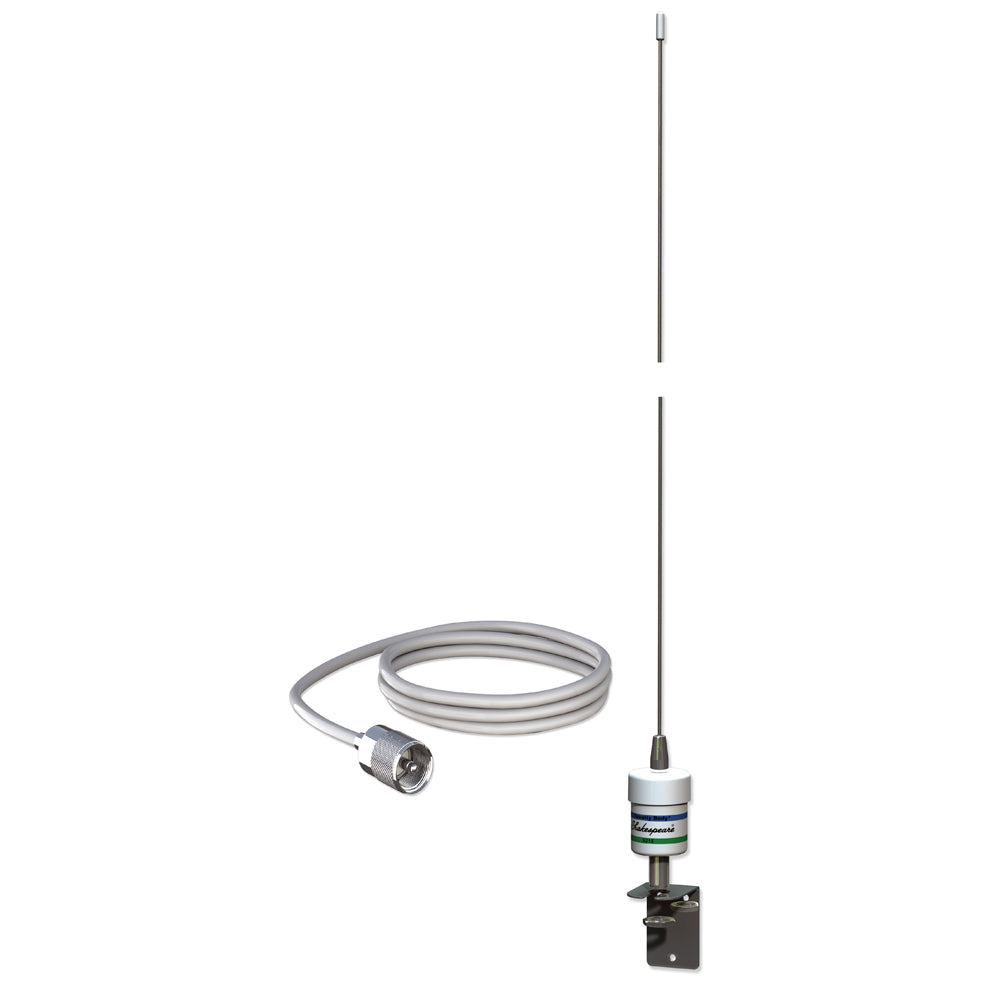

Shakespeare 5215-C-X 3' VHF Antenna - 5215-C-X

Shakespeare 5215-C-X 3' VHF Antenna - 5215-C-X

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

• Hermetically sealed, tin-plated copper wire coil

• Stainless steel body and whip

• SO-239 connector

• Includes 60' RG-8/X low-loss cable and PL-259 connectors.

• Mount: Stainless steel "L" bracket supplied, for mast mounting

• One section

• Shakespeare Limited Warranty: 2 years


Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	7 MHz
SWR:	1.5:1 @ 156.8 MHz
Impedance:	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	60' RG-8X cable
Height (feet):	3'
Polarization:	Vertical
Radiation pattern:	Omni-directional

Manufacturer : Shakespeare
Manufacturer Part No : 5215-C-X
UPC : 719441100155
