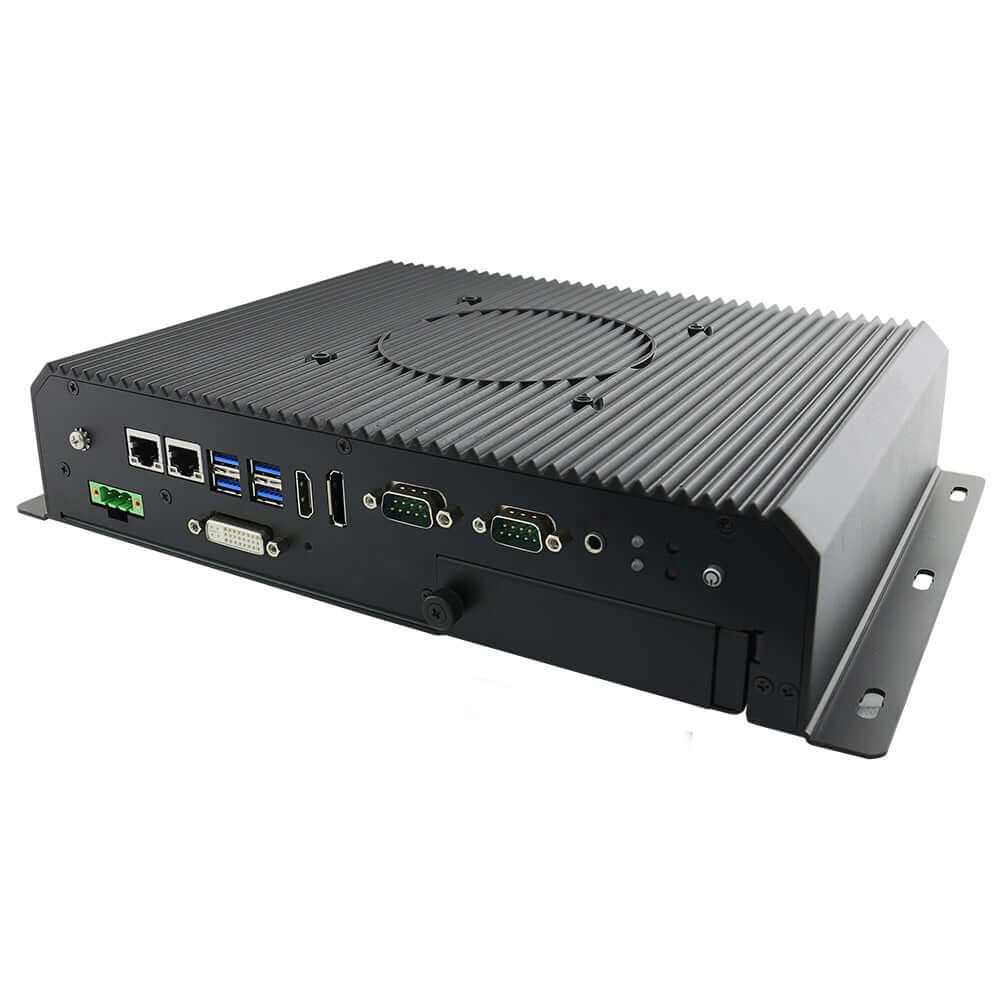

Seatronx MPC-E10-1300-i7 ECS Compliant Marine Black Box Computer

Seatronx MPC-E10-1300-i7 ECS Compliant Marine Black Box Computer

The Seatronx MPC-E10-1300-i7 ECS Compliant Marine Black Box Computer is a powerful, ruggedized computing solution engineered to meet the demanding needs of modern maritime operations. Designed for reliability, performance, and compliance, this advanced marine computer is ideal for ECS navigation systems, vessel monitoring, radar processing, and mission-critical onboard applications.

Built with durability at its core, the MPC-E10-1300 features a fanless, solid-state black box design that eliminates moving parts—reducing failure points and ensuring long-term reliability in harsh marine environments. Whether operating in extreme temperatures, high humidity, or heavy vibration conditions, this system is built to perform consistently.

High-Performance Marine Computing

At the heart of this system is a powerful Intel Core i7 processor, delivering fast processing speeds and efficient multitasking capabilities. This ensures smooth operation of complex marine software, including electronic chart systems (ECS), navigation platforms, sonar, and surveillance systems.

With support for high-speed data handling and multiple applications running simultaneously, the MPC-E10-1300 is perfectly suited for commercial vessels, offshore platforms, workboats, and specialized marine operations.

ECS Compliance for Professional Navigation

This unit is fully ECS (Electronic Chart System) compliant, making it a dependable choice for vessels requiring accurate and regulation-ready navigation solutions. It integrates seamlessly with industry-standard marine software and hardware, helping ensure safe navigation and regulatory adherence.

Rugged, Fanless Black Box Design

The MPC-E10-1300 is purpose-built for marine conditions with a rugged aluminum chassis that provides:

• Excellent heat dissipation without the need for fans

• Resistance to shock and vibration

• Protection against dust, salt air, and humidity

The fanless architecture not only enhances durability but also ensures silent operation, making it ideal for bridge and control room environments.

Flexible Installation & Integration

Thanks to its compact black box form factor, this marine computer can be easily installed in tight or enclosed spaces. It offers a wide range of I/O connectivity options, enabling seamless integration with:

• Marine displays and monitors

• Radar and sonar systems

• GPS and navigation sensors

• Network and communication systems

This flexibility makes it a versatile solution for both new vessel builds and retrofits.

Reliable Operation in Harsh Environments

Designed for continuous operation, the MPC-E10-1300 supports:

• Wide operating temperature ranges

• Industrial-grade components for long lifespan

• Stable performance in demanding maritime conditions

This ensures your critical systems remain operational when it matters most.

Key Features

• Powerful Processing: Equipped with an Intel® Tiger Lake Core™ i7 2.4GHz processor and expandable RAM (up to 32GB) to handle complex navigation data and multi-tasking without lag.

• Marine Certified Safety: Fully compliant with IEC60945, DNVGL-CG0339, and IACS E10 standards, ensuring it withstands extreme temperatures, vibration, and electromagnetic interference.

• Extensive Connectivity: Features 8x NMEA 0183 ports and 4x Digital I/O, allowing seamless integration with your ship’s sensors, GPS, and radar systems.

• Rugged Construction: A fanless aluminum enclosure provides silent operation and prevents dust or salt-air intake, while the 1.5KV Isolation Power Protection shields against voltage spikes.

• Triple Video Output: Includes DVI, HDMI, and DisplayPort outputs to support multiple high-definition bridge displays simultaneously.

• Intel Core i7 processor for high-performance computing

• ECS compliant for professional marine navigation systems

• Fanless black box design for silent, maintenance-free operation

• Rugged aluminum housing مقاوم to shock, vibration, and corrosion

• Compact footprint for flexible installation

• Multiple I/O ports for easy system integration

• Built for harsh marine environments including salt, humidity, and temperature extremes

Ideal Applications

• Commercial shipping vessels

• Offshore and oil & gas platforms

• Workboats and tugboats

• Fishing vessels

• Marine navigation and control stations

• Surveillance and onboard monitoring systems

Why Choose the Seatronx MPC-E10-1300-i7?

When reliability, compliance, and performance are non-negotiable, the Seatronx MPC-E10-1300-i7 Marine Computer delivers. Its rugged design, powerful processing, and ECS compliance make it a trusted solution for professionals who demand consistent performance in the toughest marine environments.

In the Box

• Seatronx MPC-E10-1300-i7 Marine Black Box Computer

• Removable Storage Drive (Pre-installed M.2 SSD or 2.5" SSD)

• Power Input Connector (9-36V DC terminal block)

• Wall/Table Mounting Brackets (Set of 2)

• NMEA/IO Terminal Blocks (Phoenix-style connectors for wiring)

• Quick Start Installation Guide

• Driver Utility Disk (or digital download instructions)
