Jabsco Replacement Sealed Beam for 135SL Searchlight - 18753-0178
Manufacturer Part #: 18753-0178
Couldn't load pickup availability

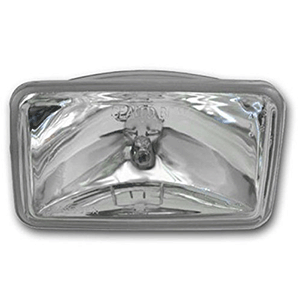

Jabsco Replacement Sealed Beam for 135SL Searchlight – Model 18753-0178
The Jabsco Replacement Sealed Beam for 135SL Searchlight (Model 18753-0178) is a genuine marine sealed beam light replacement designed to restore brightness and reliability to your Jabsco 135SL searchlight. Engineered to meet original OEM specifications, this sealed beam unit delivers powerful illumination and long-lasting performance in demanding marine environments.
Built with rugged, marine-grade materials, the 18753-0178 sealed beam provides consistent, high-output lighting ideal for boating applications where visibility and safety are critical. Whether you’re replacing a worn-out bulb or upgrading an aging searchlight, this easy-to-install sealed beam ensures dependable performance with superior beam focus and clarity.
Perfect for recreational and commercial vessels alike, the Jabsco 18753-0178 sealed beam is the exact fit for 135SL searchlight housings, delivering reliable illumination for night-time navigation, docking, and onboard tasks.
Key Features:
-
Replacement sealed beam for Jabsco 135SL searchlight
-
Model: 18753-0178
-
High-output marine illumination
-
Precision beam focus for optimal visibility
-
Marine-grade construction for corrosion resistance
-
Simple installation and exact OEM fit
Applications:
-
Marine navigation and searchlight systems
-
Boat docking and anchoring at night
-
Recreational and commercial vessels
-
Onboard lighting and safety applications
Key Specifications:
-
Part Number: 18753-0178
-
Wattage: 50 Watts
-
Brightness: 100,000 Candlepower
-
Bulb Size: 3-1/2" x 6" (approx. 5" diagonal)
-
Compatible Models: Jabsco 135SL series (e.g., 60020-0000 and 60020-0024)
Performance and Compatibility
This halogen sealed beam is engineered to deliver a focused spot beam capable of picking out buoys and markers at a distance of up to 865 feet (262 meters). Because it is a "sealed beam" unit, the reflector and lens are integrated into the bulb, ensuring the searchlight maintains its high-intensity output and weather-tight seal after the replacement.
Installation Pro-Tip:
When replacing the bulb in your 135SL, follow these steps for a secure fit:
-
Remove the Bezel: Unscrew the four small screws on the front retainer ring.
-
Disconnect Terminals: Gently pull the old bulb forward and disconnect the two spade terminals.
-
Check Connections: Before installing the new bulb, clean the spade connectors of any corrosion to ensure full power reaches the filament.
-
Reassemble: Reconnect the wires, place the new bulb into the housing, and secure the bezel screws.
