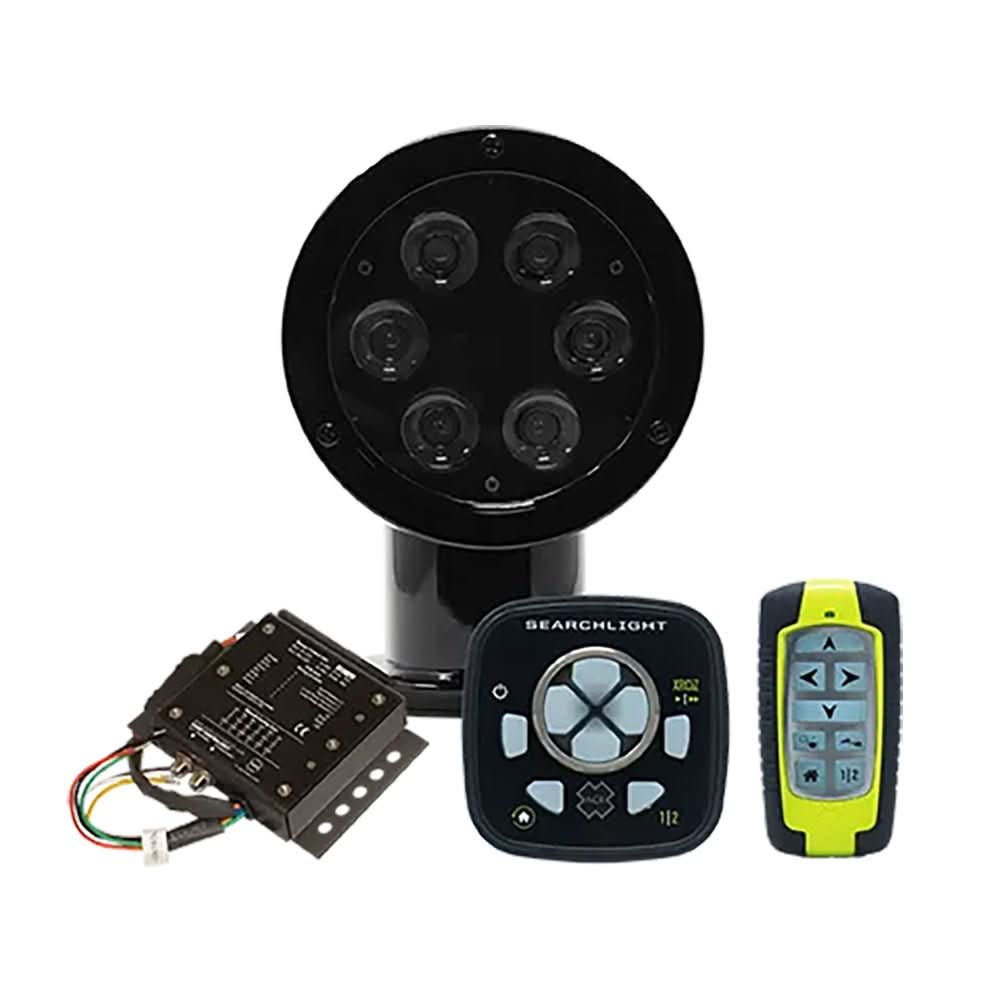

ACR Electronics RCL-50 LED Black Marine Searchlight with Remote Control Kit - 1981

ACR Electronics RCL-50 LED Black Marine Searchlight with Remote Control Kit – 1981

The ACR RCL-50 LED Marine Searchlight delivers powerful, energy-efficient illumination for safe nighttime navigation, docking, and on-water operations. Producing over 100,000 peak candela, this compact LED searchlight provides a focused spot beam for long-range visibility while consuming significantly less power than traditional halogen lights.

Designed for durability in harsh marine environments, the RCL-50 features a rugged marine-grade die-cast aluminum housing with a corrosion-resistant black finish. The searchlight offers 360-degree continuous rotation and ±20-degree tilt, allowing precise beam control from any direction. The included remote control kit, featuring the URC-104 master controller and URH-103 wireless handheld remote, enables smooth, convenient operation from the helm or anywhere onboard.

Compatible with 12-volt DC systems, the ACR RCL-50 also includes ACR’s XRCiZ™ technology, which periodically rotates the light to help prevent corrosion and keep internal components functioning smoothly. Ideal for boats, yachts, and commercial vessels, the RCL-50 LED Searchlight combines reliability, efficiency, and advanced control in a compact marine lighting solution.

Features:

• Ultra-bright 6 LED array with over 100,000 candela output

• Marine-grade die-cast aluminum housing for durability and corrosion resistance

• XRCiZ feature rotates and moves the light assembly every 30 days to prevent corrosion and maintain contacts

• Can be controlled with up to three controllers for flexible operation
• Simple installation process suitable for various vessel configurations

🔦 Light & Optics

• Light Source: High-output LED array

• Light Output: Over 100,000 peak candela

• Beam Pattern: Focused spot beam (~10°) for long-range visibility

• LED Life: Approximately 40,000 hours

⚙️ Movement & Control

• Rotation: 360° continuous rotation

• Elevation / Tilt: ±20° vertical adjustment

• Motor: Two-speed precision motor for smooth aiming

• Included Controls (1981 Kit):

  • URC-104 Master Controller (dash-mounted control module)

  • URH-103 Wireless Handheld Remote Control for cordless operation

🏗️ Housing & Construction

• Material: Marine-grade 518 die-cast aluminum

• Finish: Black, triple-primed and sealed for corrosion resistance

• Footprint Diameter: Approx. 4.75 in (120.7 mm)

• Dimensions: Approx. 8.4″ H × 6″ W × 8″ D

• Weight: Approx. 7.7 lb (3.5 kg)

⚡ Electrical

• Operating Voltage: 12 VDC systems

• Power Consumption: Significantly reduced vs. halogen searchlights

• XRCiZ™ Technology: Automatic periodic rotation to reduce corrosion and maintain internal components

🚤 Applications

• Ideal for marine navigation, docking, search and rescue, and nighttime operation on boats, yachts, and commercial vessels.

BRAND: ACR Electronics

Manufacturer Part Number: 1981
