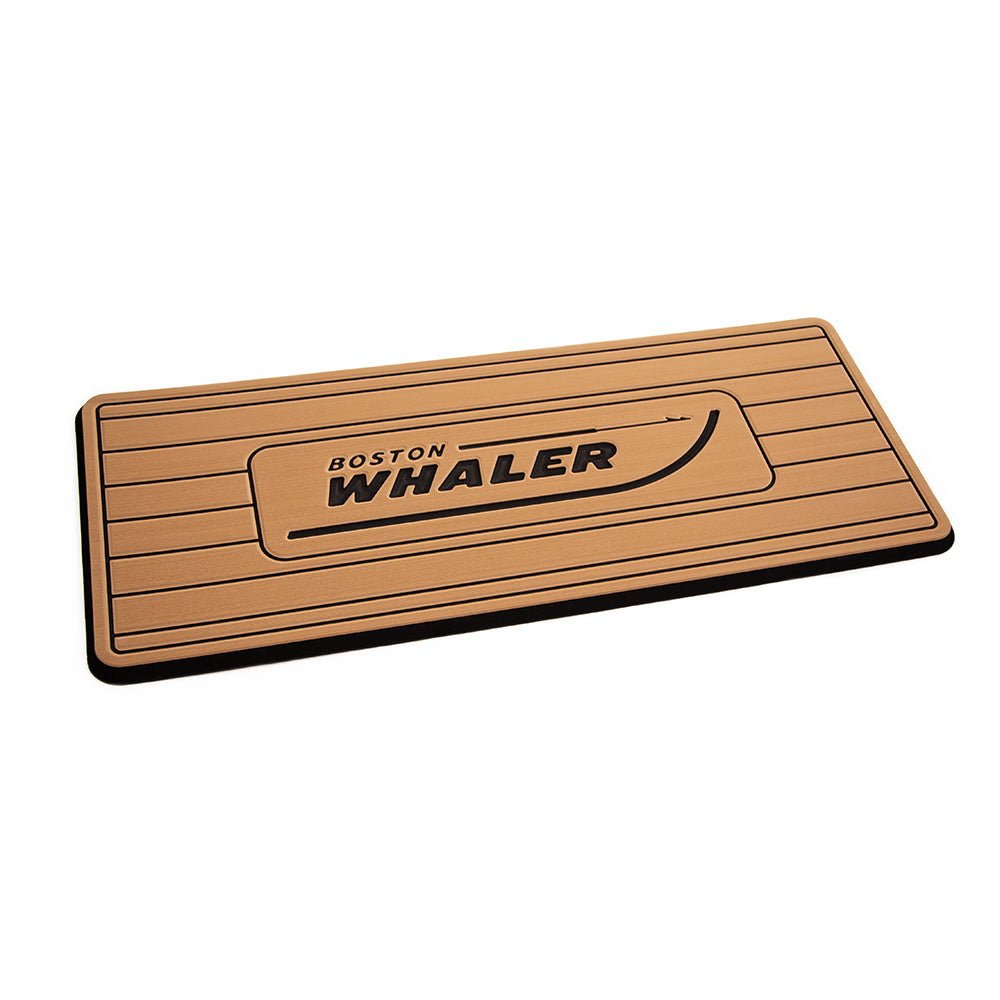

SeaDek Boston Whaler Helm Pad – Mocha/Black Brushed with Routed Teak Lines
MPN: 39615-80327
Enhance comfort and control at the helm with the SeaDek Boston Whaler Helm Pad, featuring a Mocha/Black brushed finish with routed teak lines. Designed to reduce fatigue during long days on the water, this premium helm pad combines marine-grade performance with a refined, factory-style appearance that complements Boston Whaler decks.
Constructed from closed-cell EVA foam, this pad delivers excellent shock absorption, slip resistance, and durability in harsh marine environments. The brushed texture provides secure footing even when wet, while the routed teak lines add a classic, high-end look without the maintenance of real teak.
Installation is fast and hassle-free thanks to pre-applied 3M pressure-sensitive adhesive, requiring no drilling or special tools.
Key Performance Features
-
Anti-Fatigue Properties: Made from 13mm thick closed-cell PE/EVA foam. This material absorbs the shock and vibration felt through the deck when running in heavy chop or crossing wakes.
-
Non-Skid Surface: The brushed texture provides exceptional grip, whether your feet are wet or dry, increasing safety at the helm during aggressive maneuvers.
-
Closed-Cell Technology: Unlike carpet or standard foam, SeaDek does not absorb water, salt, or odors. It is highly resistant to mold and mildew.
-
3M™ Pressure Sensitive Adhesive: Features a "peel-and-stick" backing using high-bond 3M adhesive. Once applied to a clean surface, it remains securely in place even in extreme heat and humidity.
-
UV Protected: Engineered to withstand the punishing sun exposure common to open cockpits without fading, cracking, or peeling.
Technical Specifications
| Feature | Details |
| Model Number | 39615-80327 |
| Colors | Mocha (Top) over Black (Bottom) |
| Texture | Brushed with Routed Teak Lines |
| Dimensions | Custom-fit for Boston Whaler Helm Stations |
| Thickness | 13mm |
| Material | Marine-Grade PE/EVA Foam |
In The Box
-
1 x SeaDek Helm Station Pad
-
Installation Instructions
The SeaDek Boston Whaler Helm Pad (39615-80327) is a "Large" format anti-fatigue mat. Its specific dimensions are designed to fit the standing area of most mid-to-large Boston Whaler center console helm stations.
Technical Dimensions | 39615-80327
-
Length: 39 Inches (990.6 mm)
-
Width: 16 Inches (406.4 mm)
-
Thickness: 20 mm (Total)
-
Note: This is a dual-density pad featuring a 17 mm low-density foundation for maximum shock absorption topped with a 3 mm high-density brushed traction layer.
-
-
Weight: approx. 3.4 lbs
Fitment Considerations
-
Logo Placement: This specific part number includes a routed Boston Whaler logo, typically centered or positioned according to the factory layout for the brand.
-
Teak Line Orientation: The routed teak lines run parallel to the 39-inch (length) dimension, providing a traditional "planked" look that aligns with the beam of the boat.
-
Clearance: When measuring your deck, ensure you have at least a 40" x 17" clear area of flat gelcoat. This allows for the pad's footprint plus a small "buffer" to prevent the beveled edges from overhanging any deck drains or non-skid transitions.
Installation Pro-Tips
-
Preparation is Vital: The 3M adhesive is only as good as the surface it sticks to. Clean the deck area thoroughly with Isopropyl Alcohol (Rubbing Alcohol) to remove all wax, dirt, and non-skid cleaners before applying.
-
Avoid "Dry-Fitting" with Backing: Lay the pad down with the backing still on to ensure perfect alignment. Use blue painter's tape to mark the corners before you start the peeling process.
-
Pressure is Key: Once the pad is laid down, use a small laminate roller or your body weight to apply firm pressure across the entire surface to activate the adhesive bond.
-
Temperature: For the best results, install the pad when the deck temperature is between 60°F and 90°F (15°C - 32°C).
Ideal For
-
Offshore fishing boats
-
Center consoles
-
Cruising and extended helm time
-
Owners upgrading comfort and appearance
Why Choose SeaDek?
SeaDek is the industry leader in marine EVA foam flooring and helm pads, trusted by boat builders and owners for comfort, durability, and style. This Boston Whaler-specific helm pad delivers a premium upgrade that looks great and performs even better.
Manufacturer : SeaDek
Manufacturer Part No : 39615-80327
