Sea-Dog Stainless Steel Flip Top Deck Fill - Gas - 1-1/2" Hose - 351110
Manufacturer Part #: 351110
Couldn't load pickup availability
Sea-Dog Stainless Steel Flip Top Deck Fill – Gas – 1-1/2" Hose – 351110

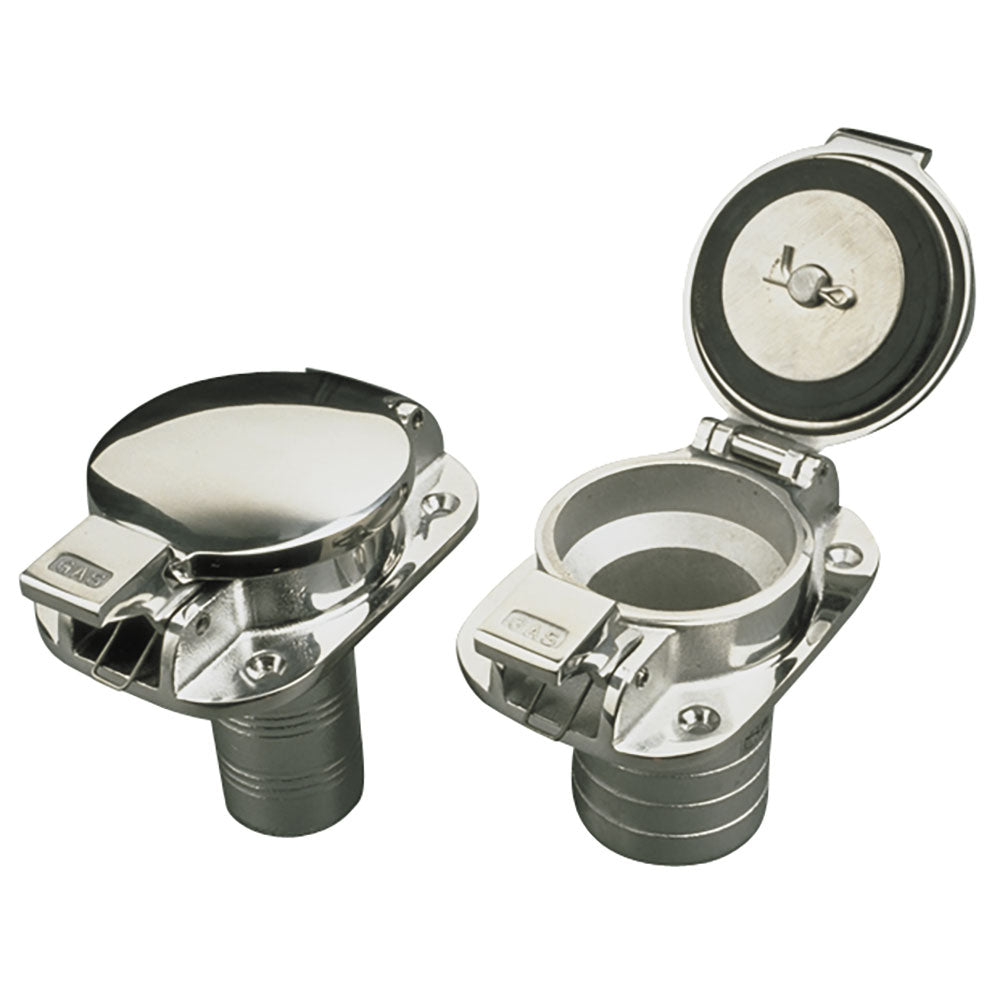

The Sea-Dog Stainless Steel Flip Top Deck Fill – Gas (351110) is a durable and corrosion-resistant solution for safe and convenient fuel access on boats. Designed for gasoline fuel systems, this deck fill features a flip-top cap that stays attached during refueling, reducing the risk of loss while providing quick, one-handed operation.
Constructed from marine-grade stainless steel, the deck fill offers excellent resistance to rust and corrosion in harsh saltwater environments. The clearly marked “GAS” cap helps prevent fuel mix-ups, ensuring proper and safe fueling every time.
Compatible with 1-1/2 inch fuel fill hoses, this deck fill is ideal for use on a wide range of boats including center consoles, runabouts, and fishing vessels. The sleek, low-profile design provides a clean, professional appearance while maintaining a watertight seal to help protect your fuel system from water intrusion.
Key Performance Features
-
Keyless Operation: The cap features an easy-to-use "flip" tab. You simply lift the tab and twist slightly to open, making it one of the most convenient fills for high-traffic fuel docks.
-
Low-Profile Design: When closed, the cap sits nearly flush with the deck flange, reducing trip hazards and preventing dock lines from snagging.
-
Integrated Venting: This model is designed to work with your vessel’s existing venting system, featuring a standard 1-1/2" hose connection for the main fuel line.
-
Fuel Type Identification: The cap is clearly laser-etched with "GAS" in high-visibility lettering to prevent accidental cross-contamination at the fuel dock.
-
Bonding Screw: Includes a pre-installed grounding/bonding screw on the underside to connect to your boat's electrical bonding system, a critical safety requirement for preventing static sparks during refueling.
Technical Specifications
| Feature | Details |
| Model Number | 351110 |
| Material | Investment Cast 316 Stainless Steel |
| Hose Diameter | 1-1/2" (Standard Fuel Hose) |
| Flange Diameter | 3-1/4" |
| Marking | GAS |
| Fasteners | #10 FH (Not included) |
In The Box
-
1 x Stainless Steel Flip Top Deck Fill Body
-
1 x Integrated Flip Top Cap
-
1 x Rubber Gasket/Seal
Installation Pro-Tips
-
Bonding is Mandatory: For gasoline installations, you must connect a green 8AWG or 10AWG wire from the bonding screw on the fill to your boat's common ground/tank bonding system to safely bleed off static electricity.
-
Hose Clamps: Use two (2) 316 stainless steel hose clamps on the 1-1/2" hose barb to meet USCG and ABYC safety standards for fuel systems.
-
Bedding: Use a high-quality marine sealant like 3M 4000UV or Life-Calk under the flange to prevent water from seeping into your deck core or fuel tank.
Dependable and easy to use, the Sea-Dog Stainless Steel Flip Top Deck Fill – Gas – 351110 is a smart upgrade for maintaining safe, efficient fueling on your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Sea-Dog
Manufacturer Part No : 351110
