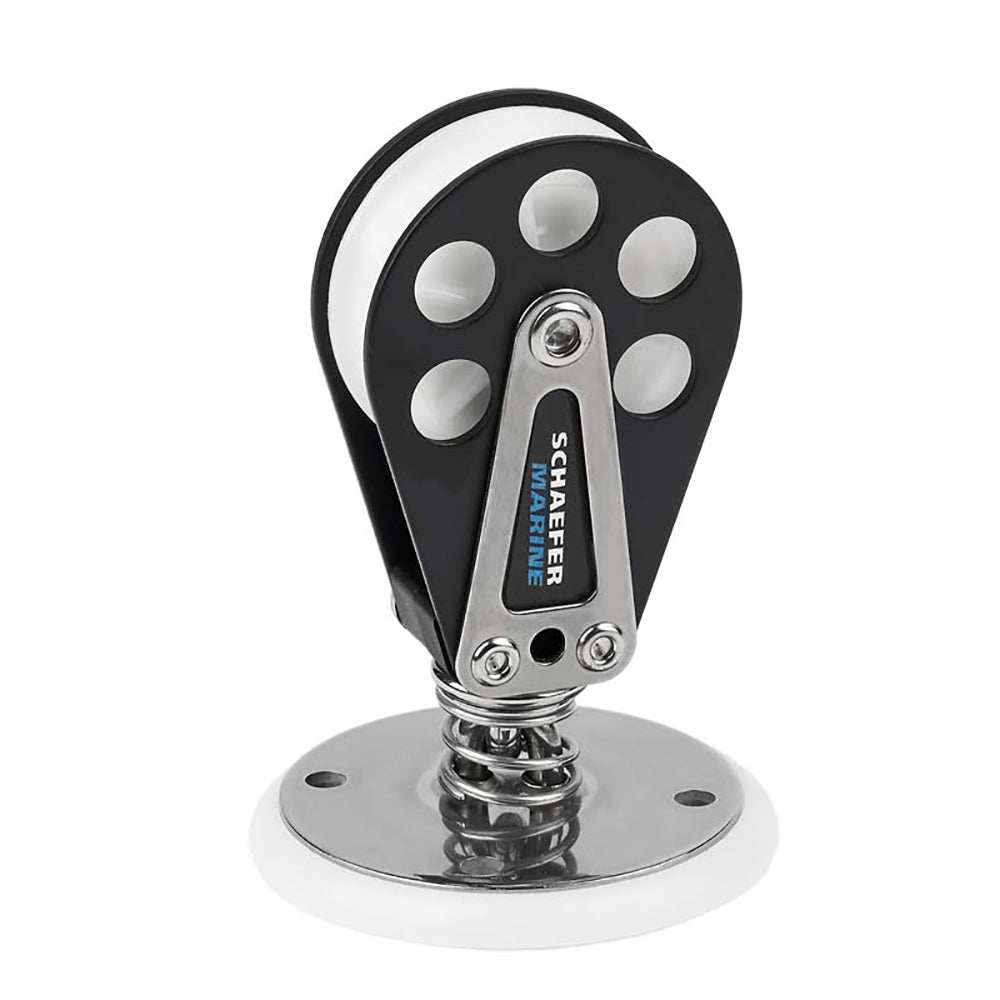

Schaefer Stand-Up Swivel with Aluminum Cheeks - 504-62

Stand-Up Swivel with Aluminum Cheeks

Delrin™ sheave ensures smooth operation and high safe working load.

Specifications:

• Sheave Dia. 2" (51 mm)
• Max Line 7/16" (11 mm)
• Diameter includes urethane base 2-7/8" (73 mm)
• Height 4-1/32" (103 mm)
• H2 2-3/32" (54 mm)
• Fastener Size (4), #10 RH (5 mm)
• C/C 1-12/31" (36 mm)
• SWL 1750 lbs. (790 kg)
• Weight Alum. 7.0 oz. (198 g)
• #97-48 BACKING PLATE SOLD SEPARATELY
