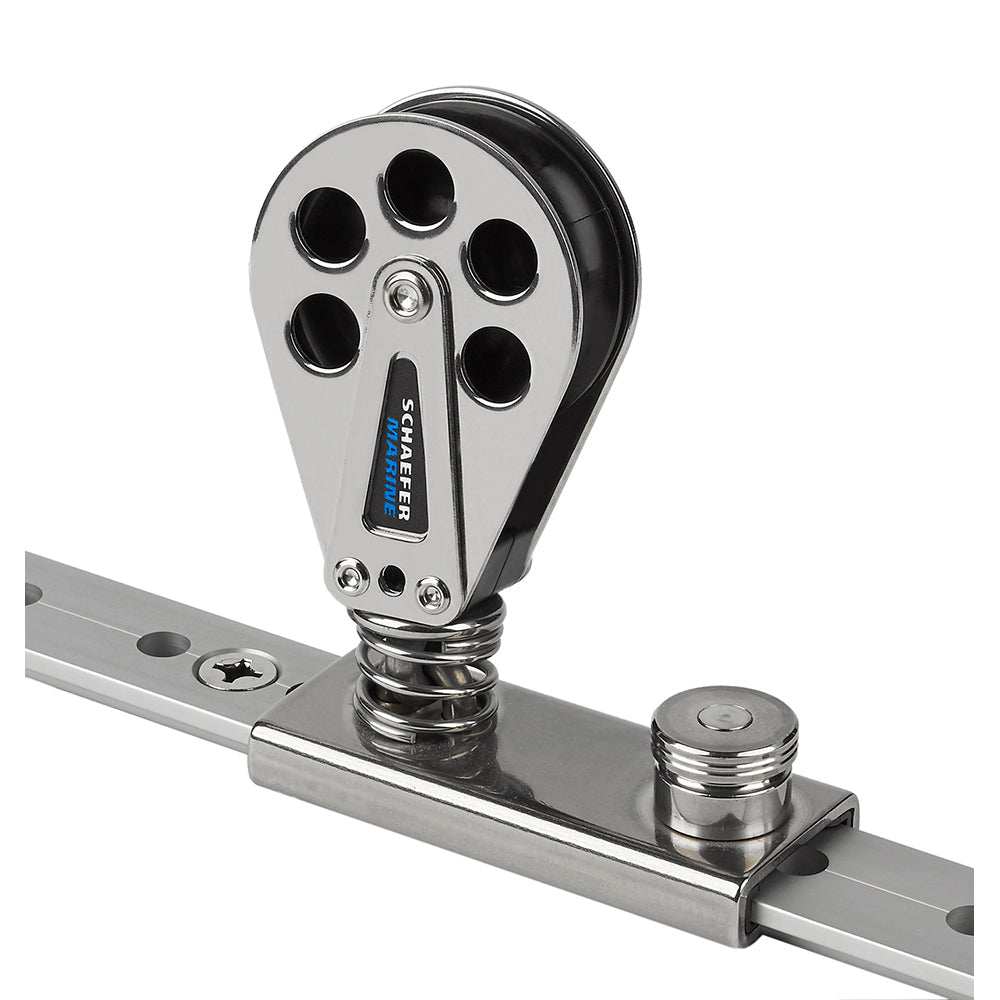

Schaefer Spring-Loaded Lined Slide – Stainless Steel for 1-1/4" T-Track (705-92)

The Schaefer Spring-Loaded Lined Slide (705-92) is a high-quality stainless steel fitting designed for smooth and reliable movement along 1-1/4" T-tracks. Engineered for marine and sailing applications, this lined slide features a spring-loaded mechanism for secure positioning and easy adjustment of blocks, cars, or other deck hardware.

Constructed from durable stainless steel, the slide resists corrosion in harsh saltwater environments while providing long-lasting performance. The lined interior ensures smooth gliding and reduces wear on both the slide and T-track. Ideal for sailboat rigging, deck hardware setups, and custom marine installations, this slide combines strength, reliability, and precision.

Key Features:

• Genuine Schaefer spring-loaded lined slide

• Stainless steel construction for superior corrosion resistance

• Designed for 1-1/4" T-track systems

• Smooth gliding with lined interior

• Spring-loaded mechanism for secure positioning

• Ideal for sailboat deck hardware and rigging applications

• Part Number: 705-92

The Schaefer 705-92 Spring-Loaded Lined Slide offers precise control, durability, and effortless operation for professional and recreational marine installations.

Specifications:

• Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length 33' (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Sheave Diameter 2-3/8" (60 mm)
• Max Line 1/2" (12 mm)
• Length 4" (102 mm)
• Width 1-9/16" (39 mm)
• Height 4-15/16" (126 mm)
• Bearing Height 2-3/8" (67 mm)
• SWL 2250 lbs. (1020 kg)
• Weight 14 oz. (397 g)
