Scanstrut SC101 Radar Pole Mount - 6' - SC101

SC101 Radar Pole Mount - 6'

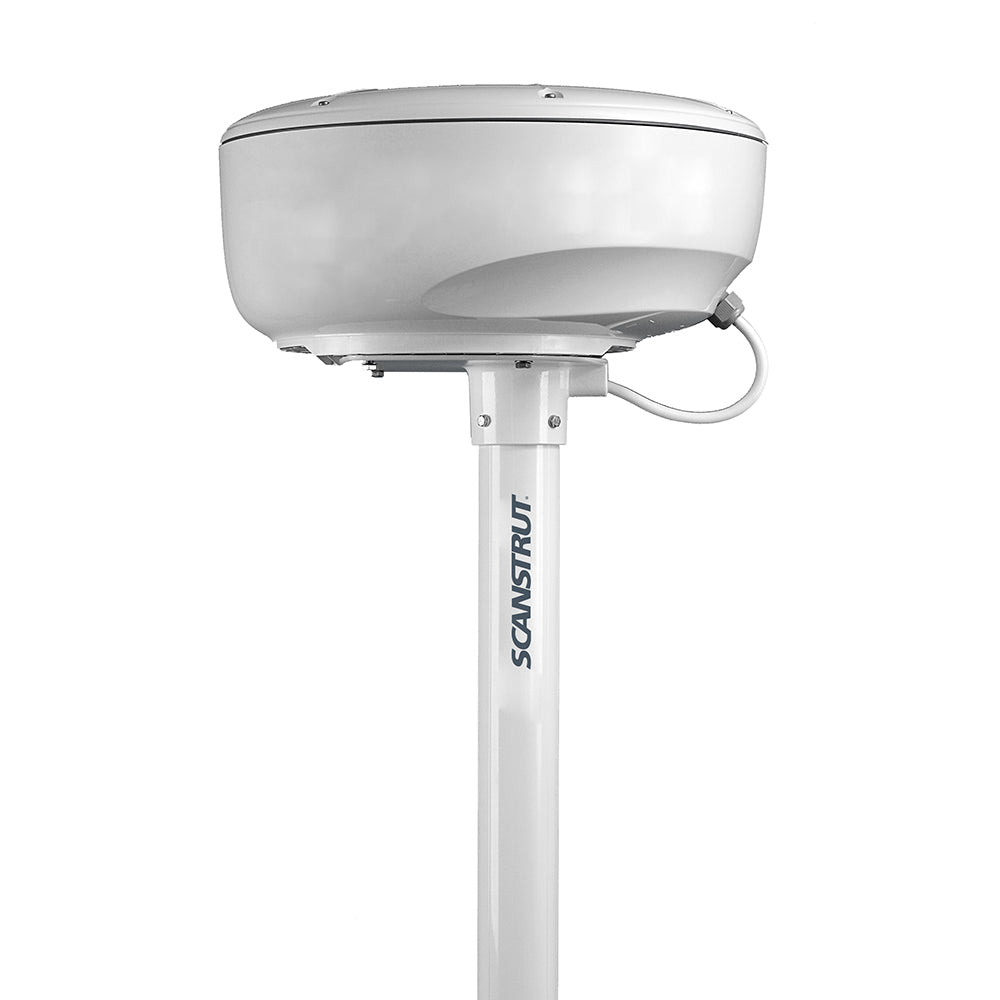

Totally universal, the Scanstrut SC101 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

• B & G - 3G/4G, HALO20, HALO20+, HALO24 radars
• Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars
• Humminbird - HB 2124 CHIRP radar
• Lowrance - 3G/4G radars
• Raymarine - QUANTUM, QUANTUM 2, RD218, RD418/RD418HD, RD424/RD424HD radars
• Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars
• Sitex - RADARpc - 4D radar

Features:

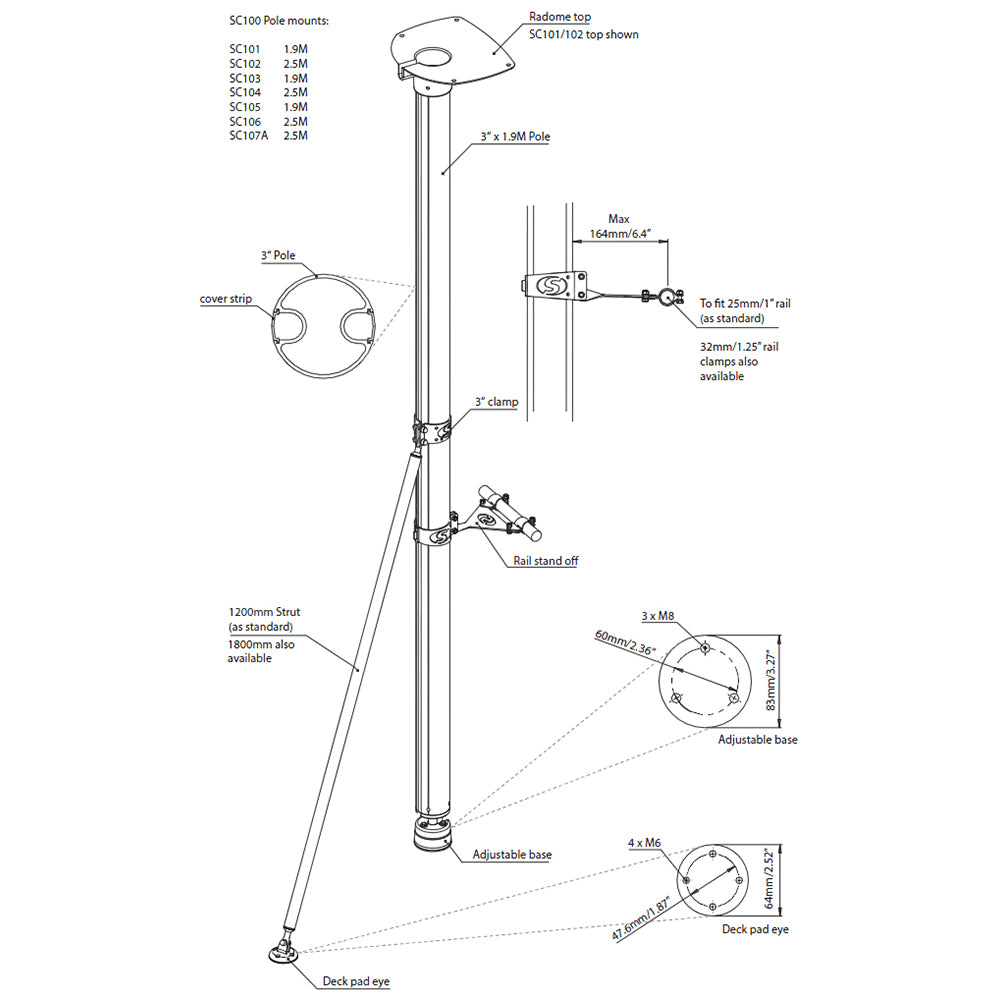

• Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
• Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

• Radar Type - Dome
• Material - Aluminium
• Height - 6.4" (1.9M)
• Mounting Type - Pole Mount

In the Box:

• Pole mount
• Top plate
• Deck strut
• Mounting hardware
• Installation manual

*Sold as an Individual
