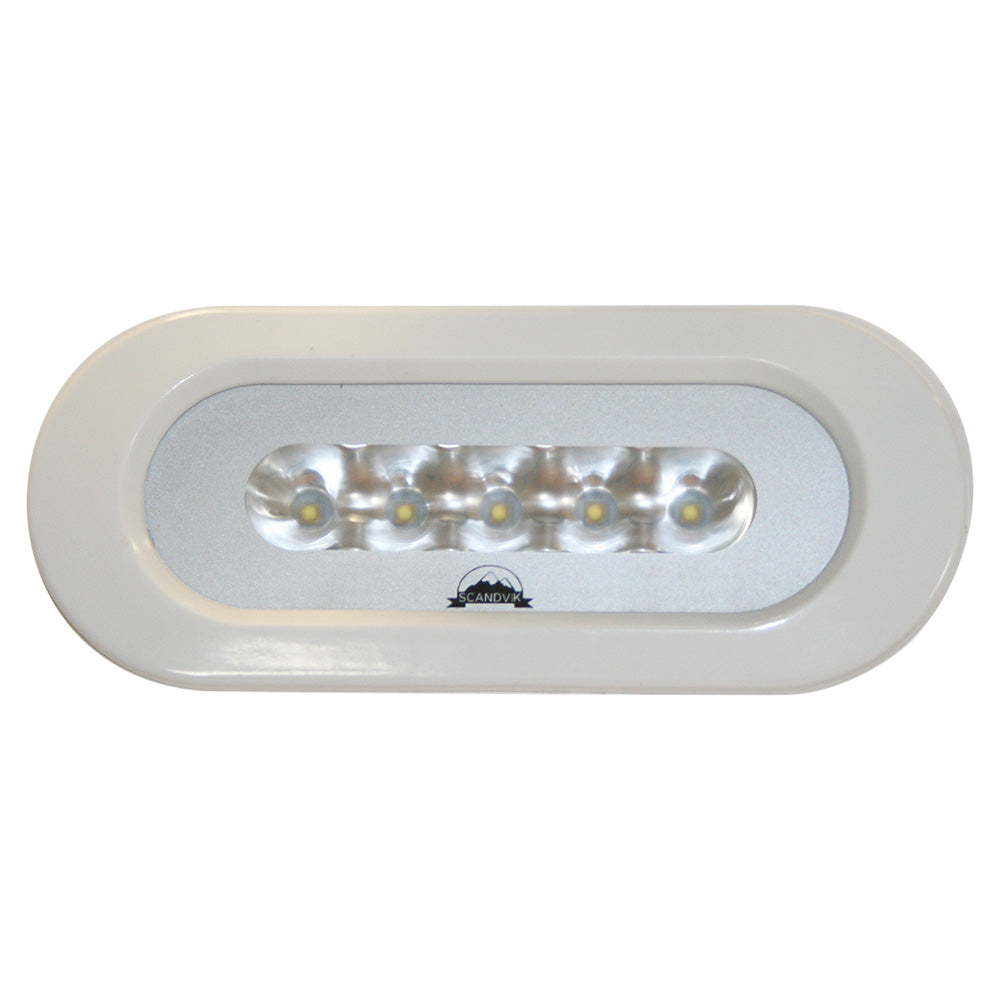

Scandvik Flush Mount Spreader Light - 10-30V - White - 41343P

Key Performance Features

• High-Power LED Technology: Features a 10-watt high-intensity LED array that delivers an impressive 1000+ Lumens of cool white light.

• Flush Mount Aesthetics: Designed to be recessed into the fiberglass or aluminum, reducing the risk of snagging fishing lines or nets on traditional bracket-mounted lights.

• 10-30V Multi-Voltage Input: Features an internal constant-current driver that allows the light to operate on both 12V and 24V systems without flickering or loss of brightness.

• IP68 Waterproof Rating: Completely sealed against dust and water intrusion, ensuring it can withstand heavy spray and washdowns.

• Powder-Coated Aluminum Housing: The white-finished bezel is die-cast and powder-coated to resist corrosion and UV yellowing in harsh saltwater environments.

• Thermal Management: Integrated heat-sinking ensures the LEDs remain cool, preventing premature burnout and maintaining consistent light output.

Technical Specifications

Installation & Wiring Pro-Tips

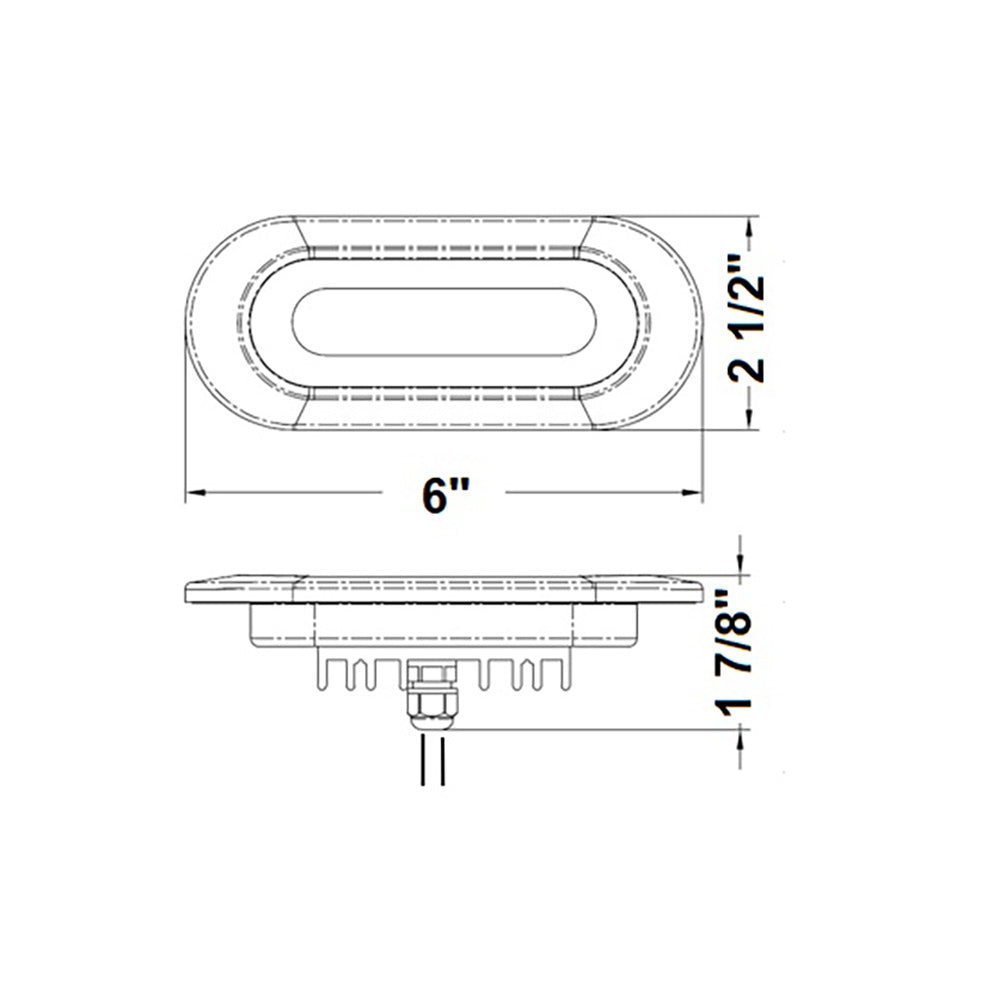

• Cutout Accuracy: Use the provided template to mark your mounting surface. This light requires a rectangular cutout; ensure there is adequate depth (approx. 1.5") behind the mounting surface for the heat sink and wiring.

• Bedding the Light: Apply a small bead of marine-grade sealant (like Sikaflex-291i) under the flange before fastening to ensure a watertight seal against your hardtop or console.

• Wiring Polarity: Like most LEDs, this unit is polarity sensitive. Ensure the positive (Red) and negative (Black) wires are connected correctly. Use heat-shrink butt connectors to prevent salt air from corroding the copper wire.

• Switching: Since these lights are very bright, many captains install them on a dedicated "Spreader" or "Cockpit" switch at the helm for independent control from your navigation or courtesy lights.
