Harken 35 Self-Tailing Radial Aluminum Winch - 2 Speed - 35.2STA
Manufacturer Part #: 35.2STA
Couldn't load pickup availability

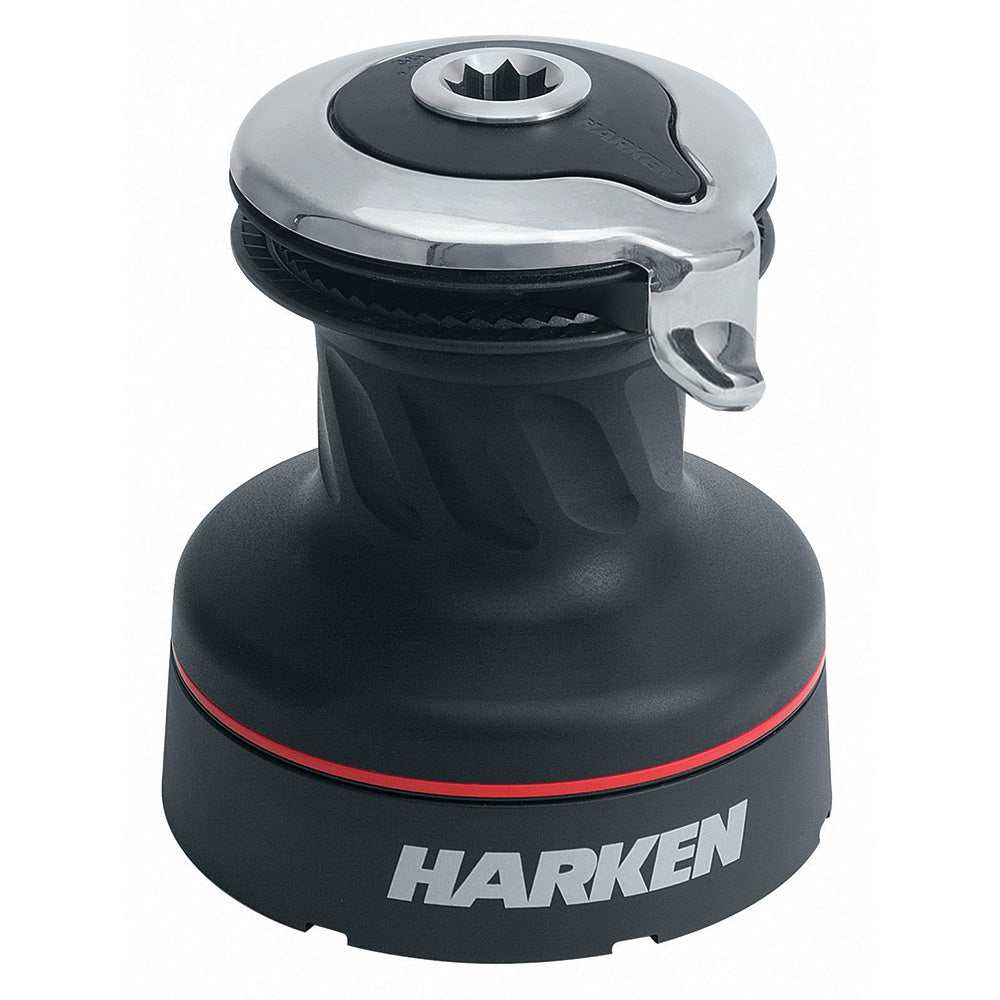

Harken 35 Self-Tailing Radial Aluminum Winch – 2-Speed – 35.2STA
Elevate your sail handling with the Harken 35.2STA Self-Tailing Radial Aluminum Winch — a precision-engineered, two-speed winch designed to deliver smooth, reliable performance on cruising and performance sailboats. Built with a lightweight anodized aluminum body, this winch combines strength, corrosion resistance, and durable construction to handle sheets, halyards, and control lines with confidence and ease.
The self-tailing mechanism securely grips the line, enabling efficient one-handed operation that reduces crew effort and enhances safety on deck. The two-speed gearing system gives sailors the flexibility to choose between rapid line take-in for quick adjustments and high-power mode for heavy loads or loaded sheeting angles, making it ideal for a wide range of trimming tasks.
Featuring radial drum geometry, the 35.2STA promotes optimal line wraps, minimizes friction, and delivers smooth, progressive power transmission. Precision gears and sealed bearings ensure long-lasting performance, while the anodized finish provides excellent resistance to the harsh marine environment.
Key Performance Features
-
Radial Grip Drum: Instead of an abrasive surface, the drum features diagonal ribs that provide a secure grip while significantly reducing line wear. This design ensures the line stays low on the drum to prevent overrides.
-
Weight-Optimized Aluminum: The drum is made from hard-anodized aluminum, making it extremely durable and corrosion-resistant while being much lighter than chrome or bronze versions.
-
Effortless Self-Tailing: It includes a spring-loaded upper jaw that automatically adjusts to line diameters ranging from 5/16" to 1/2", allowing for easy, one-handed sail trimming.
-
Simplified Servicing: The winch is designed for easy maintenance; the top lifts out as a single unit, ensuring that internal springs and pawls remain organized during reassembly.
Technical Specifications
-
Brand: Harken
-
Model: 35 Self-Tailing Radial Aluminum Winch – 35.2STA
-
Winch Type: 2-Speed Self-Tailer
-
Body Material: Anodized aluminum
-
Recommended Line Size: Medium diamenter sheets and halyards (refer to Harken’s line-size guide)
-
Application: Sail trimming, halyard tensioning, control line management
-
Use: Cruising and performance sailboats
Benefits
-
Two-speed gearing provides fast take-in and powerful hauling options
-
Self-tailing grip reduces workload and improves safety
-
Lightweight aluminum body keeps weight down without sacrificing strength
-
Radial winch design promotes smooth, efficient trimming
-
Built to Harken’s high standards for long service life
Applications
-
Mainsail and headsail sheet control
-
Halyard trimming and sail shape adjustment
-
Traveler and control line trimming
-
Sailboat upgrades and hardware replacements
-
Performance sailing, club racing, and cruising
Summary for the User
The Harken 35.2STA is an excellent primary or halyard winch for boats in the 27' to 33' range. It provides a solid 35.9:1 power ratio in second gear to handle heavy loads, and its aluminum construction is perfect for sailors looking to keep weight off the deck. Like other Radial winches, it can be converted to electric power later if you wish to automate your sail handling.
Installation Tip: When mounting the winch, ensure the drive gear is positioned on the side where the line enters the drum. This placement ensures the highest loads are pulled directly against the drive gear for maximum efficiency and longevity.
Manufacturer : Harken
Manufacturer Part No : 35.2STA
Harken 35 Self-Tailing Radial Aluminum Winch - 2 Speed - 35.2STA is backordered and will ship as soon as it is back in stock.
