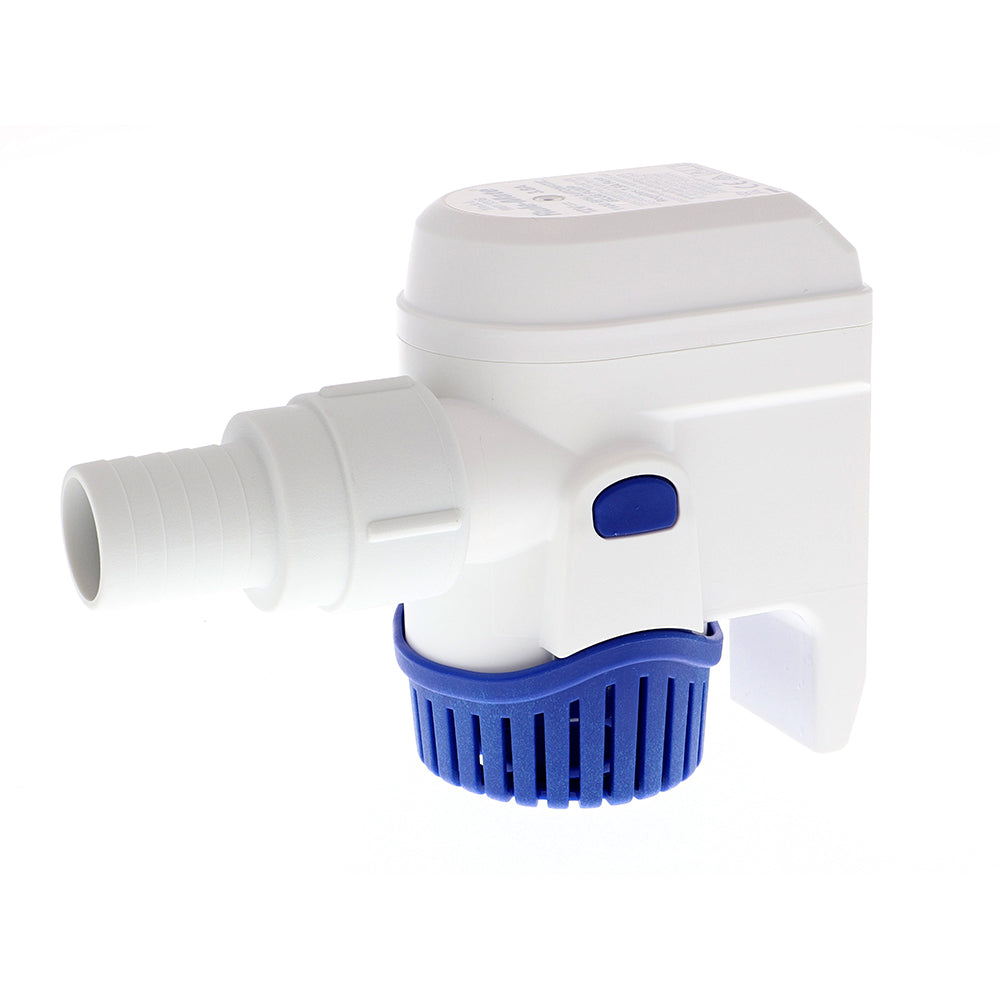

Rule Rule-Mate 1100 Fully Automated Bilge Pump – 12V | MPN: RM1100B
Keep your bilge dry and your vessel protected with the Rule Rule-Mate 1100 Fully Automated 12V Bilge Pump (Part Number: RM1100B). Designed with integrated water-level sensing technology, the Rule-Mate 1100 eliminates the need for a separate, bulky float switch—saving space in narrow bilges and streamlining your plumbing setup.
The pump automatically activates when bilge water reaches 2 inches (50 mm) and shuts off when the water level drops to 3/8 inch (9 mm). Built with Rule’s advanced eco-friendly sensor intelligence, the pump evaluates impeller resistance to distinguish between water and engine oil/fuel. If coated in oil, it reverts to a protective timed cycle rather than discharging hydrocarbons overboard. Complete with a removable check valve and thermal cut-off protection, the RM1100B delivers unmatched peace of mind on the water.
Key Features & Performance Advantages
-
All-in-One Automated Operation: Internal solid-state switch automatically triggers pumping at 2" water height and turns off at 3/8", requiring no external float switch.
-
Eco-Friendly Guard: Detects oil and fuel buildup on the sensor to prevent accidental discharge into waterways. Reverts to an automated 2.5-minute check cycle until the sensor is cleared.
-
High-Capacity Output: Pumps up to 1,100 Gallons Per Hour (GPH), making it ideal for medium-to-large powerboats, sailboats, and fishing vessels.
-
Integrated Backflow Check Valve: Includes a built-in check valve to stop water in the discharge hose from draining back into the bilge when the pump shuts off.
-
Built-in Thermal Cut-Off: Guards against motor burnouts, wiring damage, and dry-running overheating.
-
Stepped Discharge Ports: Ships with interchangeable straight hose barbs for both 1" (25 mm) and 1-1/8" (28 mm) bilge hoses.
Technical Specifications
| Specification | Details |
| Manufacturer | Rule / Xylem Marine |
| Model / Part Number (MPN) | Rule-Mate 1100 / RM1100B |
| Flow Rate | 1,100 GPH (4,163 LPH) |
| Operating Voltage | 12 VDC |
| Amp Draw | 3.8 Amps @ 12V |
| Recommended Fuse Size | 7.5 Amps |
| Activation Point | 2 Inches (50 mm) |
| Deactivation Point | 3/8 Inch (9 mm) |
| Discharge Hose Sizes | 1" (25 mm) & 1-1/8" (28 mm) Barbed Ports |
| Compliance Standards | ISO 8846 Marine (Ignition Protected), ISO 8849 Marine |
| Dimensions | 4.5" H x 6.0" L x 3.3" W |
What Is Included in the Box?
-
(1) Rule-Mate 1100 Automated 12V Bilge Pump (MPN: RM1100B)
-
(1) 1" Straight Barbed Discharge Port
-
(1) 1-1/8" Straight Barbed Discharge Port with Integrated Check Valve
-
Mounting Bracket & User Manual
Frequently Asked Questions (FAQ)
Q: Does this pump require an external float switch or manual switch panel?
A: No external float switch is needed! The internal sensor manages automatic ON/OFF functions. However, you can wire it to a 3-way helm switch (Auto / Off / Manual) if you desire manual override capability.
Q: What happens if motor oil leaks into my bilge near the pump?
A: The Rule-Mate sensor checks for water resistance against the impeller. If oil or fuel covers the sensor, the pump will refrain from continuous running, switching to a 2.5-minute safety cycle to prevent pumping oil overboard until the bilge is cleaned.
Q: Can I use a 1-1/8" hose with this pump?
A: Yes! The pump includes interchangeable stepped port fittings for both 1-inch and 1-1/8-inch inner diameter (ID) marine bilge hoses.
Features:
- State-of-the-art water sensing technology
- Pump turns on when water level rises and shuts off when water is removed
- No float switch required
- 1100 GPH/4164 LPH
- Anti-fouling impeller
- Submersible
- Ignition protected
- Includes back flow preventer
- 3-year warranty
