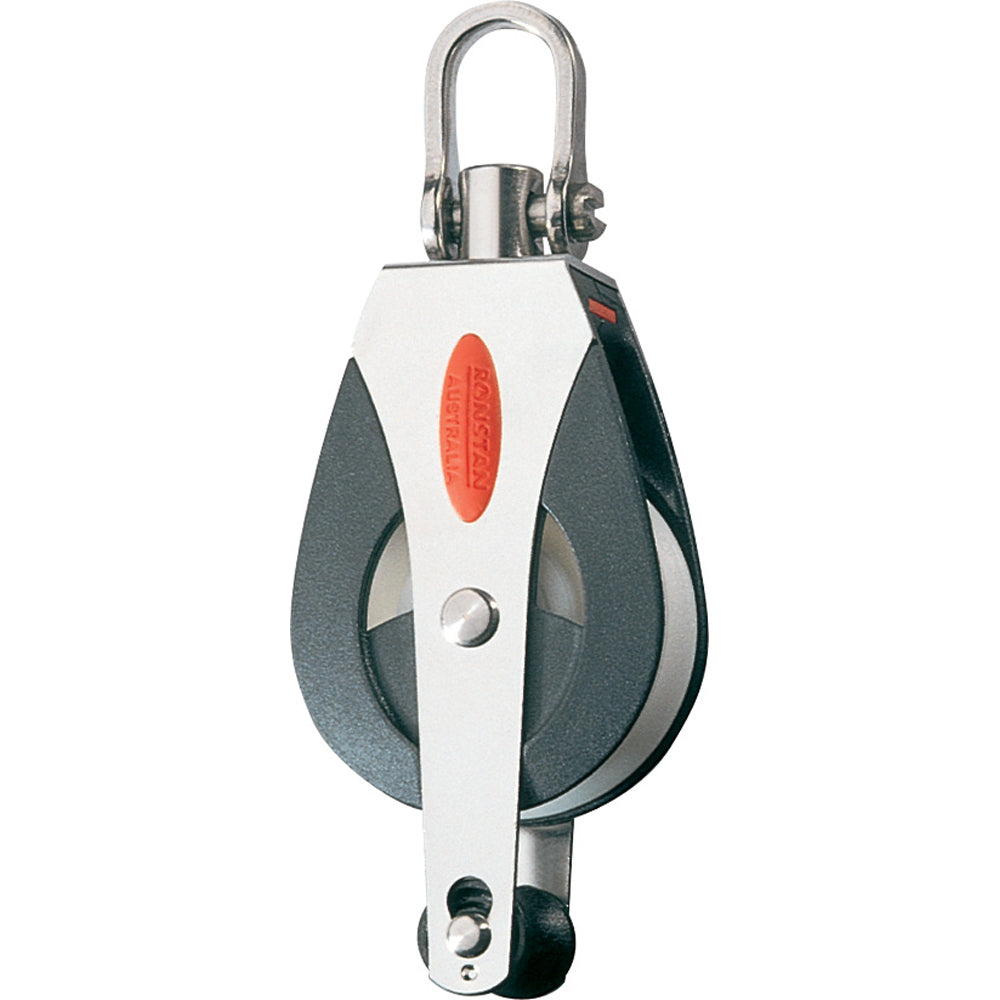

Ronstan Series 40 All Purpose Block - Single - Becket - Universal Head - RF41110

Series 40 All Purpose Block - Single - Becket - Universal Head

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools

Features:

• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating sheave
• Captive Lock™ universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin
• Spare parts - RF150 Shackle, RF41010 Replacement Becket Pin

Applications:

• Mainsheet

• Halyard

• Vang

• Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')

Materials:

• U.V. stabilized Acetal sheaves

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

• Grade 316 stainless steel bearing race

• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø:40mm(1-9/16")
Max. Rope Ø:10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.:400kg(880lbs)
B. L.:1,000kg(2,200lbs)
Weight:80g(2.8oz)
Manufacturer : Ronstan
Manufacturer Part No : RF41110
UPC : 9316800244010
