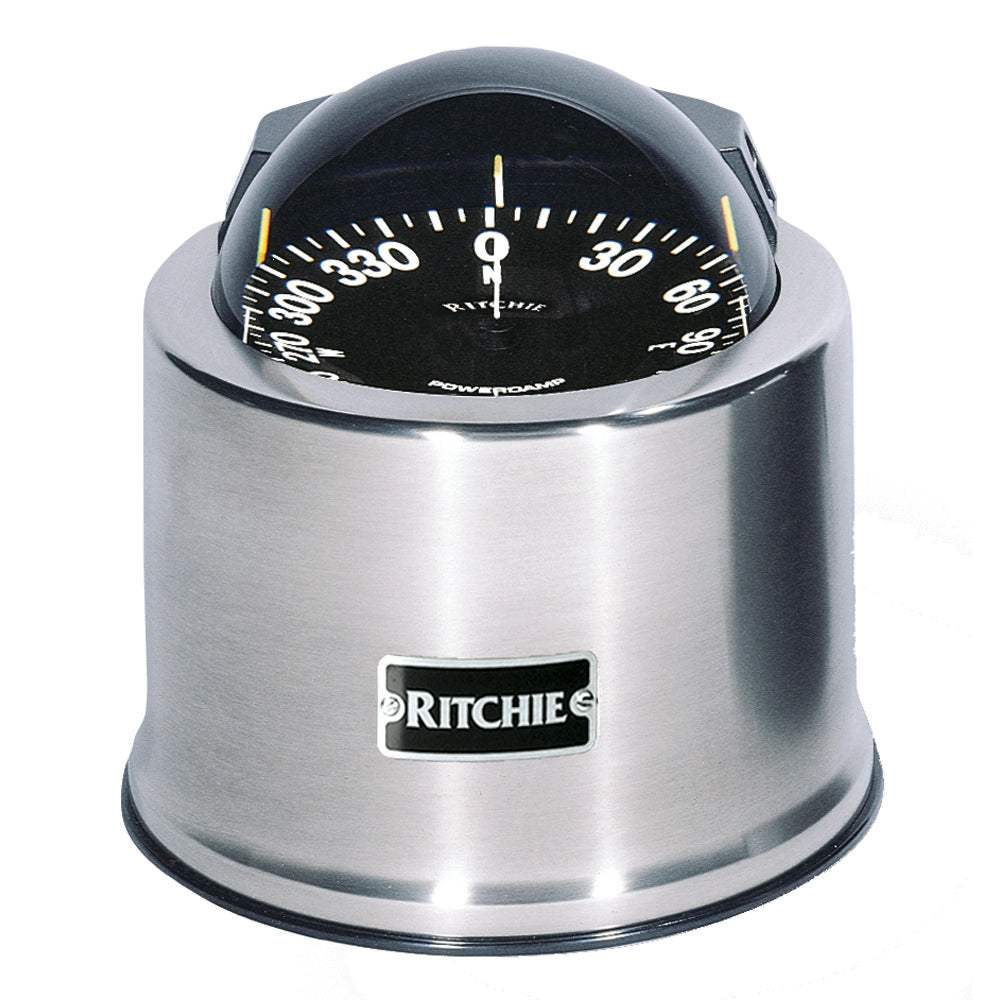

Ritchie SP-5-C GlobeMaster Compass - Stainless Steel

Ritchie SP-5-C GlobeMaster Compass – Stainless Steel

The Ritchie SP-5-C GlobeMaster Compass is a premium binnacle-mounted marine compass designed for serious navigation on both powerboats and sailboats. Built with a polished stainless steel housing, it delivers exceptional durability, corrosion resistance, and a classic marine aesthetic.

Featuring a 5-inch (127 mm) open-face dial, the SP-5-C provides excellent readability and precision. It is available with multiple dial configurations, including 2°, 2° with points, or 5° increments, allowing users to choose the level of detail that best suits their navigation needs.

At the core of its performance is Ritchie’s PowerDamp® flat card technology, which ensures smooth, stable readings by minimizing oscillation—even in rough sea conditions. The compass also incorporates full internal gimbals and built-in compensators, maintaining accuracy and allowing easy adjustment for magnetic deviation.

Designed for pedestal mounting, the GlobeMaster features a lightweight, easy-to-align base that fits most popular sailboat pedestals. It includes 45° and 90° lubber lines for quick, accurate heading reference, and 12V green LED illumination for clear visibility during nighttime navigation.

Built for longevity, the SP-5-C is 100% repairable and backed by Ritchie’s 5-year warranty, making it a trusted choice for offshore and long-distance cruising.

Key Features & Performance

• Precision Viewing: Equipped with a 5" (127 mm) open-face dial that provides clear magnification and high visibility from multiple angles.

• Advanced Dampening: Features a PowerDamp® flat card designed to eliminate dial spinning and "jumping," ensuring stable readings in heavy seas or at high speeds.

• Internal Gimbals: Built with a full internal gimbal system that allows the compass to remain level and functional despite the pitch and roll of the vessel.

• Night Navigation: Includes integrated 12V green LED lighting as a standard feature, providing clear illumination that is easy on night vision (24V and 32V options are also available).

• Built-in Compensators: Outfitted with non-interactive magnets to correct for magnetic deviation caused by onboard electronics or metal structures.

• 100% repairable with 5-year warranty

Specifications

• Brand: Ritchie Navigation

• Model: GlobeMaster SP-5-C

• Mount Type: Binnacle / Pedestal Mount

• Dial Size: 5" (127 mm)

• Housing: Polished Stainless Steel

• Lighting: 12V Green LED (optional 24V/32V available)

• Weight: Approx. 6 lbs

• Application: Offshore navigation for powerboats and sailboats

Navigate with confidence using the Ritchie SP-5-C GlobeMaster Compass, delivering professional-grade accuracy, durability, and reliability for demanding marine environments.

In The Box

• (1) Ritchie SP-5-C GlobeMaster Compass - Stainless Steel

• (1) Mounting Base and Hardware

• Installation, Compensation, and Maintenance Instructions

Installation Tip: To ensure long-term accuracy, this compass is 100% repairable and should be adjusted using the internal compensators after all other electronic equipment has been installed on the pedestal or dash.

Manufacturer : Ritchie
Manufacturer Part No : SP-5-C
UPC : 010342050397
