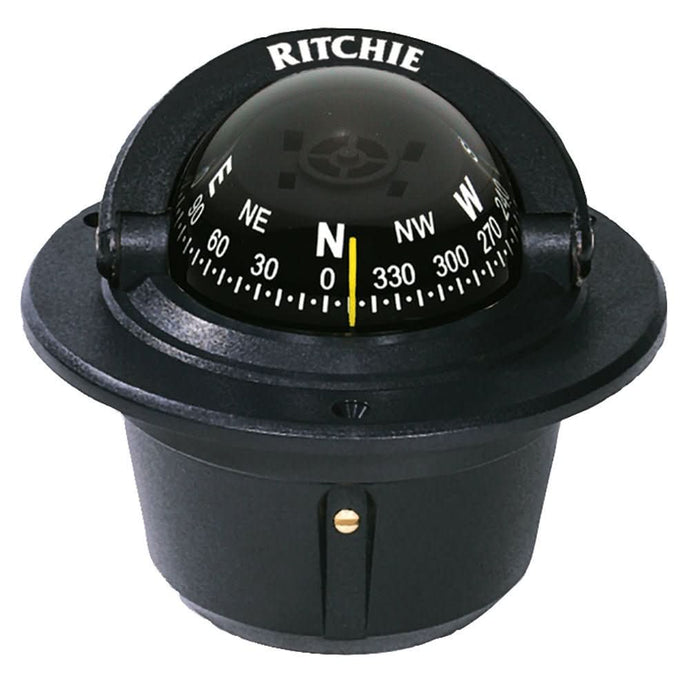

Ritchie F-50 Explorer Compass - Flush Mount - Black - F-50

Ritchie F-50 Explorer Compass – Flush Mount – Black – F-50

Navigate with confidence using the Ritchie F-50 Explorer Compass, a dependable flush-mount marine compass designed for recreational powerboats and other vessels requiring a compact, easy-to-read heading display. Featuring a 2-3/4" (70 mm) direct-reading dial, the F-50 provides clear heading information while integrating neatly into the helm or instrument panel.

Designed for straightforward installation, the Ritchie F-50 fits a 3-3/4" (95 mm) mounting hole and features a durable black housing with a black dial. Its flush-mount configuration provides a clean, professional appearance that complements a wide range of marine helm layouts.

For dependable navigation after dark, the Explorer F-50 includes internal green night illumination and comes standard with 12V lighting. Built-in compensators allow the compass to be adjusted for deviation caused by onboard magnetic influences, helping provide more accurate heading information.

At the heart of the F-50 is Ritchie's scientifically matched sapphire jewel and hardened steel pivot dial movement, combined with powerful DirectiveForce magnets for fast heading lock-on. A movable sun shield helps improve visibility in bright conditions, while high-temperature composite construction provides durability across demanding marine operating environments.

The Ritchie F-50 is also 100% repairable and backed by Ritchie's 5-year warranty, making it an excellent choice for new installations or replacement of an existing flush-mounted marine compass.

Key Features

• 2-3/4" (70 mm) Direct-Reading Dial: Provides clear, easy-to-read heading information

• Flush-Mount Design: Creates a clean, integrated appearance at the helm

• 3-3/4" Mounting Hole: Designed for straightforward installation into compatible helm and dash panels

• Internal Green Night Illumination: Improves compass visibility during nighttime operation

• 12V Lighting Standard: Ready for common 12V marine electrical systems

• Built-In Compensators: Allows adjustment for compass deviation

• DirectiveForce Magnets: Provides fast heading lock-on

• Precision Dial Movement: Scientifically matched sapphire jewel and hardened steel pivot construction

• Movable Sun Shield: Helps improve dial visibility in bright sunlight

• High-Temperature Composite Construction: Designed for an extended operating range

• 100% Repairable: Serviceable design helps extend product life

• 5-Year Ritchie Warranty: Backed by Ritchie's manufacturer warranty

Specifications

Manufacturer: Ritchie Navigation
Series: Explorer
Model: F-50
Manufacturer Part Number: F-50
Color: Black
Dial Color: Black
Dial Size: 2-3/4" (70 mm)
Dial Design: Direct Read
Mounting Style: Flush Mount
Mounting Hole: 3-3/4" (95 mm) diameter
Night Lighting: Internal Green
Standard Lighting Voltage: 12V DC
Compensators: Built-In
Reading Position: Front
Approximate Shipping Weight: 1 lb. (454 g)
Warranty: 5 Years

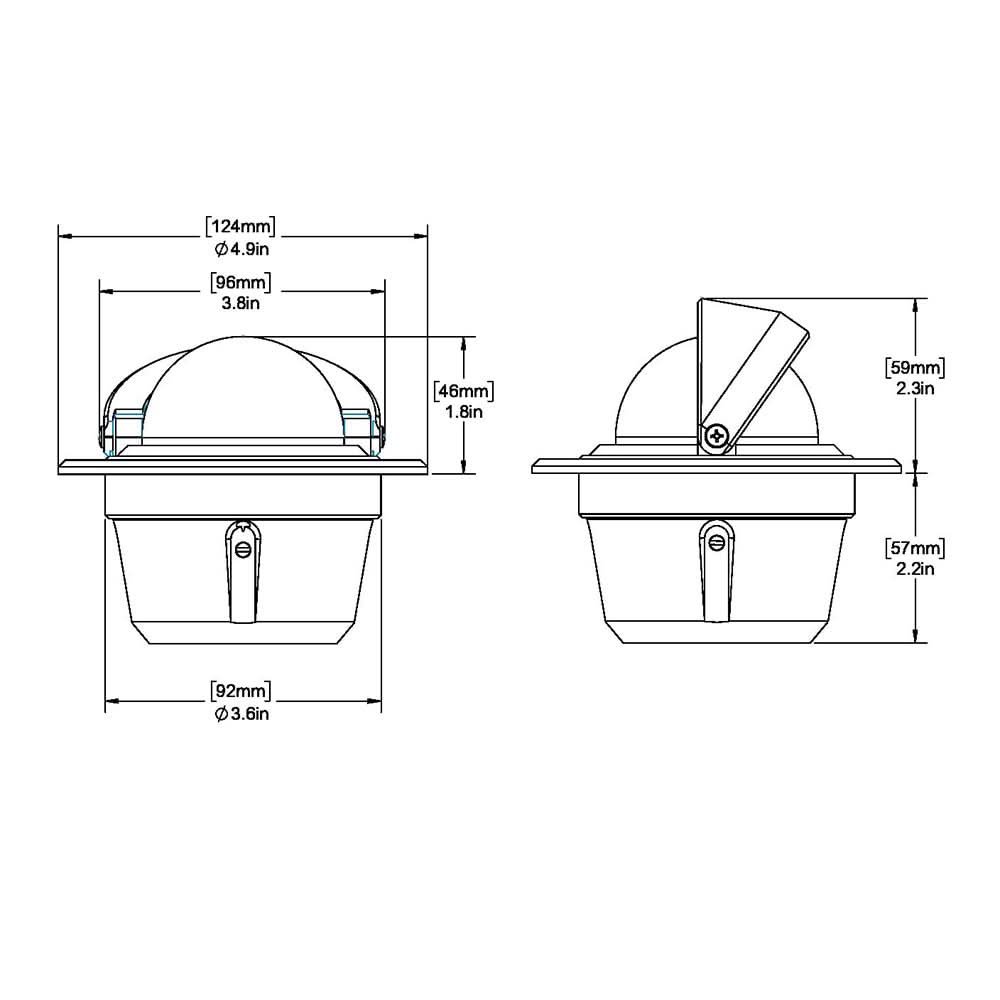

Dimensions

Overall Diameter: Approximately 4-7/8" (124 mm)
Mounting/Cutout Diameter: 3-3/4" (95 mm)
Upper Height: Approximately 1-13/16" (47 mm)
Depth Below Mounting Surface: Approximately 2-1/4" (57 mm)
