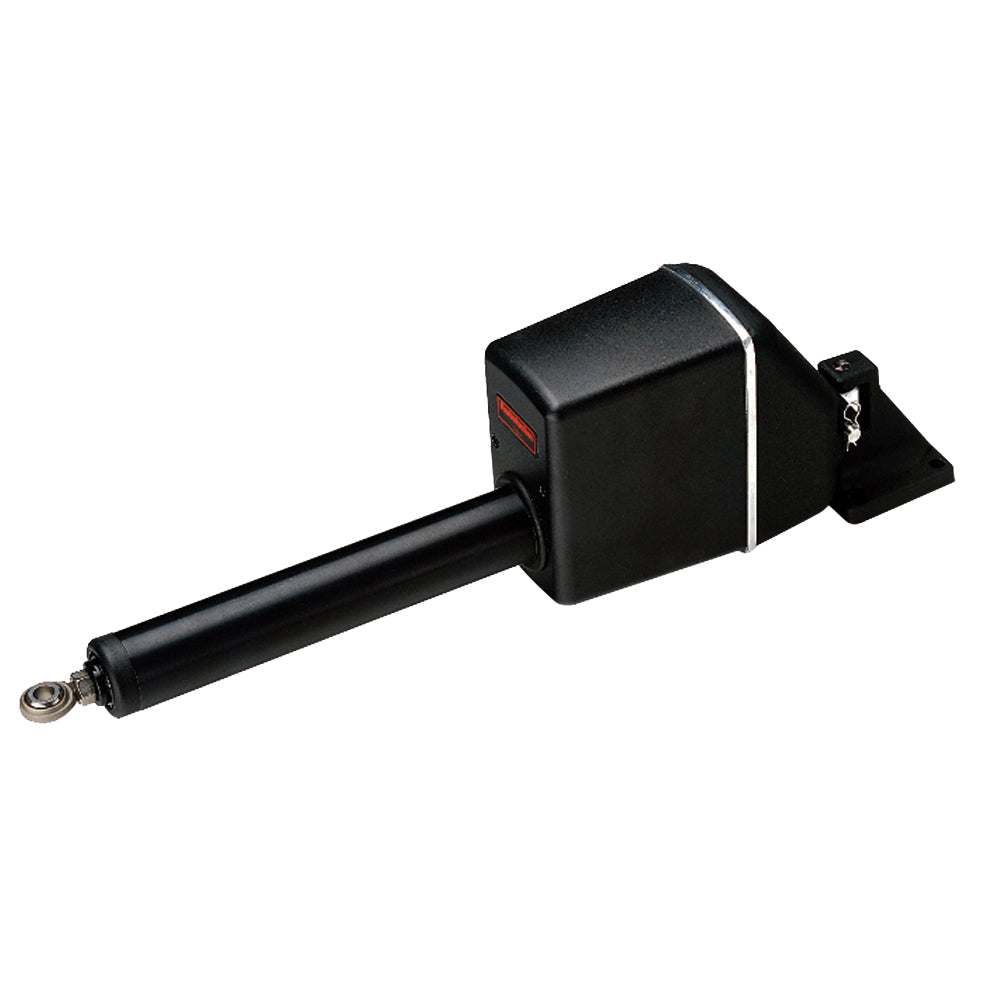

Raymarine Type 1 Linear Drive 12V - M81130

Raymarine Type 1 Linear Drive – 12V (M81130)

The Raymarine Type 1 Linear Drive – 12V is a precision mechanical autopilot drive unit designed for smaller mechanically steered vessels requiring reliable, smooth autopilot steering. Engineered to deliver responsive control and quiet operation, this linear actuator drive works with Raymarine autopilot systems (such as the ACU-400 control unit) to provide accurate course-keeping and effortless transitions between autopilot and manual steering. The integrated electromagnetic fail-safe clutch disengages the drive when autopilot is off, allowing unhindered hand steering.

Ideal for sailboats, small cruisers, and powerboats with lighter rudder loads, the Type 1 Linear Drive delivers dependable performance and compact design for boats where space and simplicity are key.

🔧 Technical Specifications

Performance

• Rated Voltage: 12 V DC

• Application: Mechanically steered vessels with moderate rudder loads

• Peak Thrust: ~250 kg (550 lb) – suitable for smaller displacement boats

• Maximum Stroke: ~200 mm (8″) – adequate travel for light rudder movement

• Hard-Over to Hard-Over Time: Approx. 9–10 sec (@ ±35° no load)

• Maximum Rudder Torque: Lower than Type 2 Long / Type 2 units, optimized for smaller boats

Electrical

• Operating Voltage: 12 V DC

• Typical Power Consumption: ~35–55 W under normal autopilot loads

Drive & Construction

• Drive Mechanism: Electric motor with belt drive and epicyclic gearbox for precise motion

• Fail-Safe Clutch: Electromagnetic clutch disengages for manual steering

• Quiet Operation: Low back-drive resistance when autopilot is idle

• Mounting: Below-deck installation; attaches to rudder stock or tiller arm (sold separately)

System Compatibility

• Autopilot Control: Designed to work with Raymarine autopilot cores such as ACU-400 (sold separately)

• Steering Interface: Mechanical linkage (rudder stock / tiller arm)

Certifications & Use

• Marine-Grade Construction: Built for typical below-deck marine environments

• Installation: Recommended by authorized Raymarine or certified marine technician

⭐ Key Features

• Precise mechanical linear autopilot drive for 12 V systems

• Compact unit ideal for smaller mechanically steered boats

• Quiet and smooth operation with low back-drive resistance

• Electromagnetic fail-safe clutch for unobstructed manual steering

• Works seamlessly with Raymarine autopilot control units (e.g., ACU-400)

• Efficient design with moderate power draw

Key Features:

• Genuine Raymarine Type 1 Linear Drive

• Voltage: 12V DC

• Smooth, precise linear motion for Type 1 autopilot systems

• Compact, marine-grade construction for durability

• Ideal for recreational and small vessel applications

• Part Number: M81130

The Raymarine Type 1 Linear Drive 12V provides dependable steering control and autopilot accuracy, making it an essential component for safe and efficient boating.

Manufacturer : Raymarine
Manufacturer Part No : M81130
UPC : 023193811307
