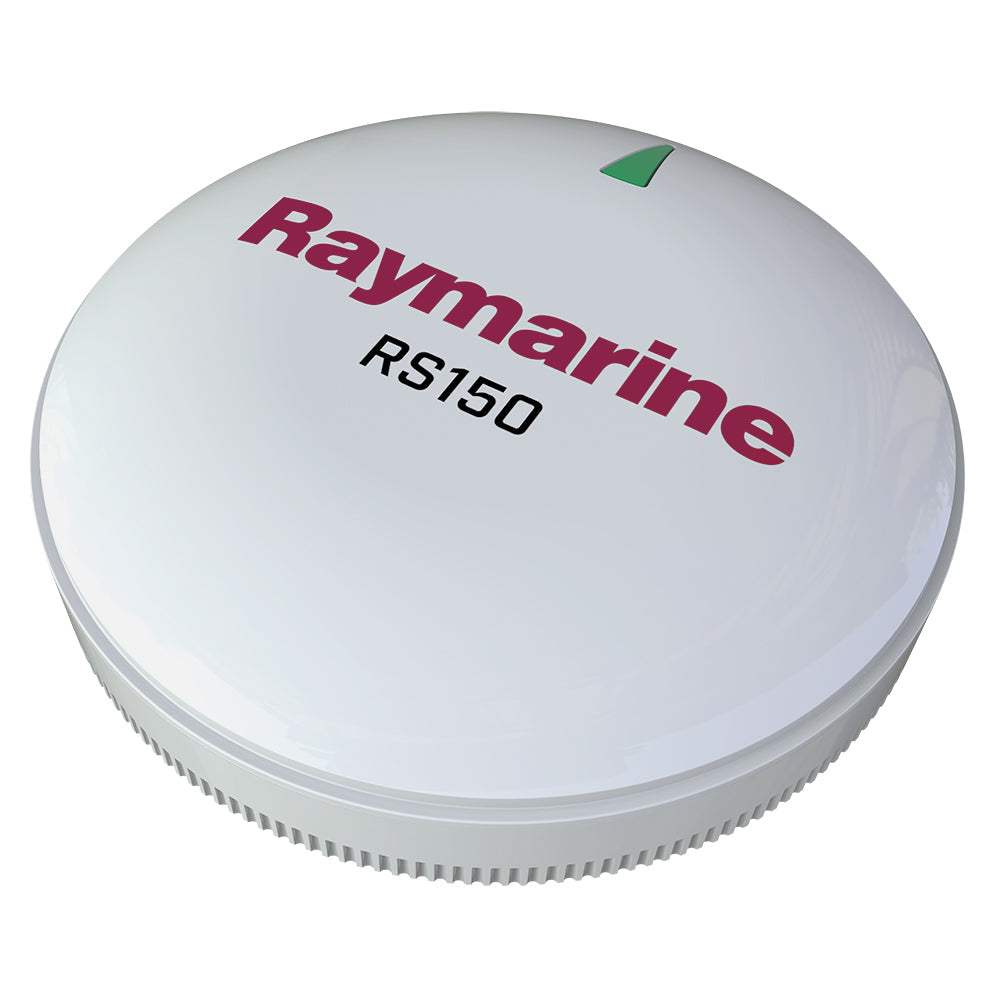

Raymarine Raystar RS150 GPS Sensor - E70310

The Raymarine RS150 GPS Sensor (E70310) is a high-performance, 72-channel GNSS receiver designed to provide fast and highly accurate position updates for your navigation system. It is the successor to the Raystar 130 and is an essential upgrade for vessels with steel wheelhouses or any setup where the primary display's internal GPS signal is obstructed.

Precision Navigation and Tracking

The RS150 utilizes both GPS and GLONASS satellite constellations to ensure a reliable fix even in challenging conditions.² With a 10Hz update rate, your boat's position and heading are updated ten times per second, resulting in much smoother chart movement and more accurate tracking at high speeds.

• Fast Position Updates: 10Hz performance for real-time accuracy and fluid chart plotting.

• High Sensitivity: Acquisition down to -163dBm, allowing for faster signal locks in difficult environments.

• Satellite Differential Compatible: Supports SBAS (WAAS, EGNOS, MSAS, and GAGAN) for sub-5 meter position accuracy.

• Low Power Consumption: Operates at just 30mA (1 LEN), drawing minimal power from your network bus.

• Versatile Mounting: Designed for low-profile surface mounting, but can be pole-mounted with an optional adapter.

Technical Specifications

• Part Number: E70310

• Channels: 72-channel receiver

• Protocols: SeaTalkng and NMEA 2000 (via DeviceNet adapter cable)

• Waterproof Rating: IPX6/IPX7

• Cold Start Fix: Less than 2 minutes (typically < 45 seconds)

• Voltage: 12V DC (Powered by the SeaTalkng network)
