Raymarine i70s Multifunction Instrument Display - E70327
Manufacturer Part #: E70327
Couldn't load pickup availability
Raymarine i70s Multifunction Instrument Display - E70327

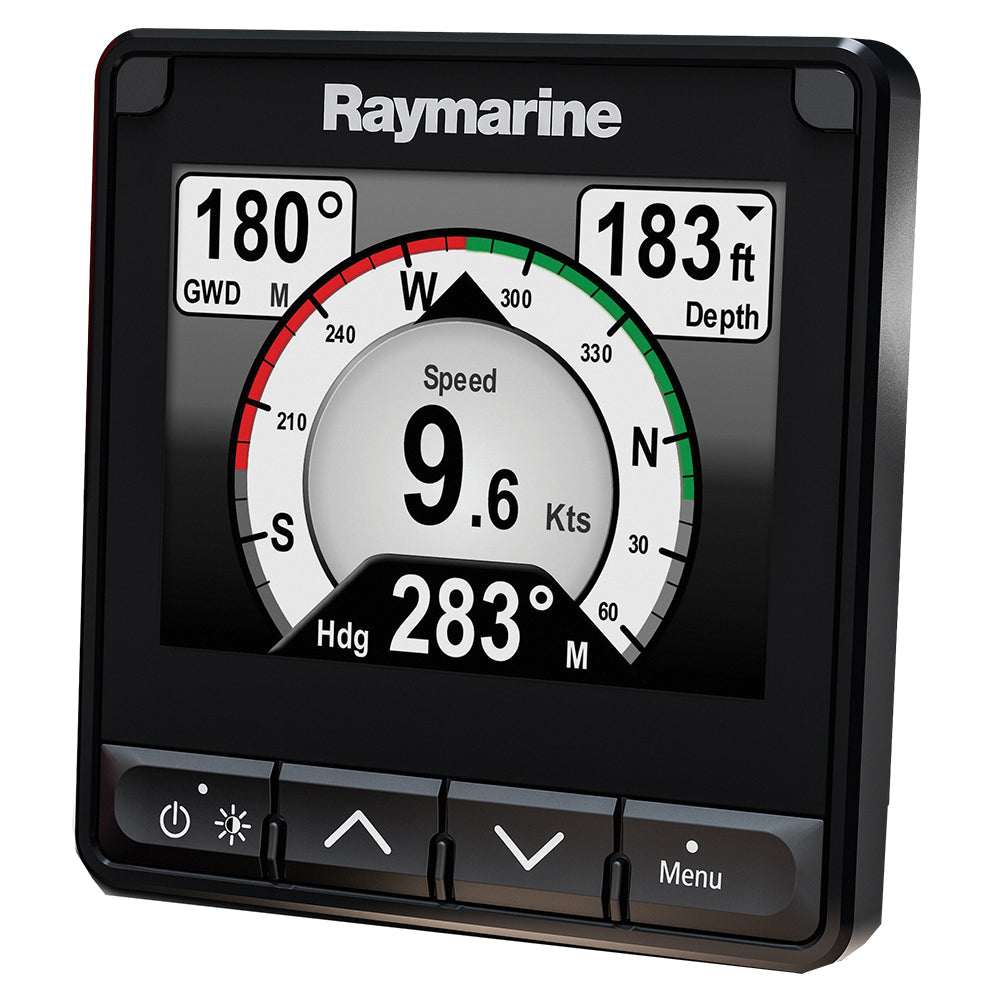

The Raymarine i70s Multifunction Instrument Display (E70327) is a versatile and highly customizable digital instrument designed to provide a clear view of all your critical marine data. Whether you need to monitor depth, speed, wind, or engine data, the i70s consolidates multiple functions into one sleek, sunlight-viewable screen.
High-Visibility Digital Dashboard
The i70s is engineered for maximum readability in the harsh marine environment. It features a large 4.1-inch optically bonded LCD that provides extra-wide viewing angles and deep contrast, ensuring you can see your data even from across the cockpit in direct sunlight.
-
Customizable Displays: You can easily tailor the interface to show exactly what you need, from large single-data digits to complex graphical displays of wind history or depth charts.
-
LightHouse User Interface: The simple menu structure makes it easy to switch between preset pages for sailing, powerboating, or engine monitoring.
-
Low Power Consumption: This unit is highly efficient, drawing only 1.7 watts, which is ideal for sailors concerned about battery management during long passages.
-
Seamless Networking: Built on the SeaTalkng and NMEA 2000 protocols, it integrates effortlessly with other Raymarine sensors, autopilots, and multifunction displays.
Technical Specifications
-
Part Number: E70327
-
Screen Size: 4.1-inch (160º viewing angle)
-
Resolution: 320 x 240 pixels
-
Waterproofing: IPX6 and IPX7 (suitable for open-cockpit installation)
-
Connectivity: SeaTalkng (NMEA 2000 compatible)
-
Included in Box: i70s Display, sun cover, gasket, and a SeaTalkng spur cable.
Recommendation
The i70s is the best choice if you want a dedicated, easy-to-read display that can adapt to any role on your boat. If you are building a full system, you may also need a SeaTalkng 5-Way Connector or a Wind, Speed, and Depth Transducer bundle to provide the data for this screen.
Features:
- 4.1 super bright oversized LCD for maximum visibility
- All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle
- Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
- Simple user interface with sculpted rubber keypad for precise operation in all conditions
- Customizable data displays of depth, speed, wind and more
- SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
- NMEA2000 connectivity* for engine, environment fuel and navigation data
- Convenient AIS repeater mode allows you to visually track nearby AIS targets
- Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
- Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
- Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover
*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required for connecting the i70s to NMEA2000 backbone.
Intuitive LightHouse User Interface
The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.
Networking
Raymarine i70s allows for connectivity to the following on board networks:
- First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
- Current generation SeaTalkng networks
- NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
- In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.
AIS Repeater
Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.
Transducer Connectivity
Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.
Customization
The Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all.
- i70s Display
- Installation hardware
- Instruction sheet
| Display | 4'' color LCD |
|---|---|
| Resolution | 320 x 240 pixels |
| Main Functions | Wind, depth, speed |
| Sensors Included | None |
| Interface | SeaTalk-ng/NMEA2000 |
| Other Functions | AIS, heading, engine data, fuel consumption, GPS nav data, and other data present on NMEA 2000 |
| Dimensions | 4.3''W x 4.53''H x 1.52''D |
| Warranty | Three year |
