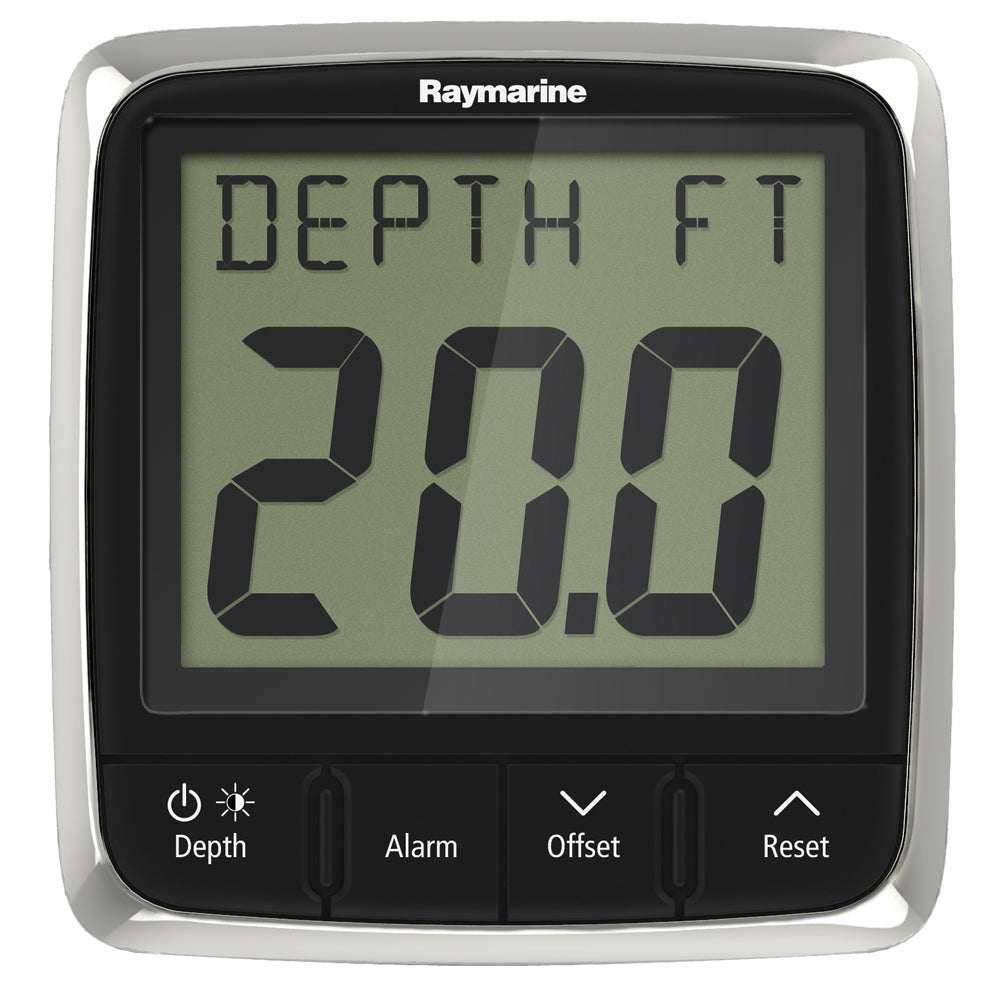

Raymarine i50 Depth Display System - E70059

Raymarine i50 Depth Display System - E70059

The Raymarine i50 Depth Display System (E70059) delivers clear, reliable depth information in a compact and easy-to-read marine instrument designed for both sailboats and powerboats. Featuring a high-contrast LCD with oversized digits and red backlighting, the i50 Depth ensures excellent visibility in bright daylight and low-light night conditions.

Built for seamless integration, the i50 Depth Display System is natively compatible with SeaTalkng networks and can be adapted for NMEA 2000 systems, making it ideal for new installations or upgrades. Its standard footprint matches legacy ST60+ instruments, allowing for quick and simple retrofits without cutting new holes. Rugged, energy-efficient, and trusted by boaters worldwide, the Raymarine i50 Depth Display System provides accurate depth monitoring to enhance safety and confidence on the water.

Here are the technical specifications for the Raymarine i50 Depth Display System – E70059:

Technical Specifications — Raymarine i50 Depth Display System (E70059)

📟 Display & Functionality

• Instrument Type: Dedicated depth display from the Raymarine i50 series — shows real-time water depth, minimum/maximum depth, and depth trend with alarms for shallow, anchor, and deep water conditions.

• Display Format: High-contrast LCD with oversized digits for easy readability.

• Backlighting: Red backlighting enhances visibility in low light and night conditions.

⚡ Power & Electrical

• Nominal Voltage: 12 V DC marine electrical systems.

• Operating Voltage Range: 10 V to 16 V DC.

• Current Consumption (Typical): 45 – 65 mA (display only).

• Current Consumption (Max): Up to 200 mA with transducer connected.

• Power Consumption: < 1 W typical (display only) / up to 2.4 W max (with transducer connected).

• LEN (NMEA 2000 Load Equivalency Number): 4 units.

🌐 Networking & Connectivity

• Network Compatibility: Native SeaTalkng connectivity with backward compatibility to SeaTalk and adaptable to NMEA 2000 networks.

• Connections:

  • 2 × SeaTalkng ports (for network or transducer connections).

📏 Physical & Environmental

• Dimensions: 110 mm (W) × 115 mm (H) × 44 mm (D) (4.22″ × 4.52″ × 1.7″).

• Mounting: Surface mount with included gasket and can be fitted with optional trunnion mount kit.

• Waterproof Rating: IPX6 rated for marine environments.

• Operating Temperature: –20 °C to +55 °C (–13 °F to +131 °F).

• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F).

• Relative Humidity: Up to 93 %.

🔌 Included in Box

• i50 Depth instrument display

• Suncover(s) and front bezels (matching a/b/c/e/i70s/p70 series)

• Gasket for surface mount

• 400 mm SeaTalkng spur cable

• SeaTalkng blanking plug

• Fixing screws and documentation.

i50 SeaTalk^ng Instruments - Depth

The Raymarine i50 Depth Instrument (E70059) from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the Raymarine i50 Depth features Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the Raymarine i50 Depth supports SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of Raymarine i50 Depth is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

Raymarine i50 Depth is designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The Raymarine i50 Depth is covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i50 Depth Instrument
The Raymarine i50 Depth offers accurate and reliable displays of depth, max depth and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarms.

• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility
• Connect additional i50 depth displays
• Built-in depth transducer connection

i50 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.
• Large, crisp LCD displays with high contrast for excellent visibility.
• Red backlighting for outstanding night-time visibility.
• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.
• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.
• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
