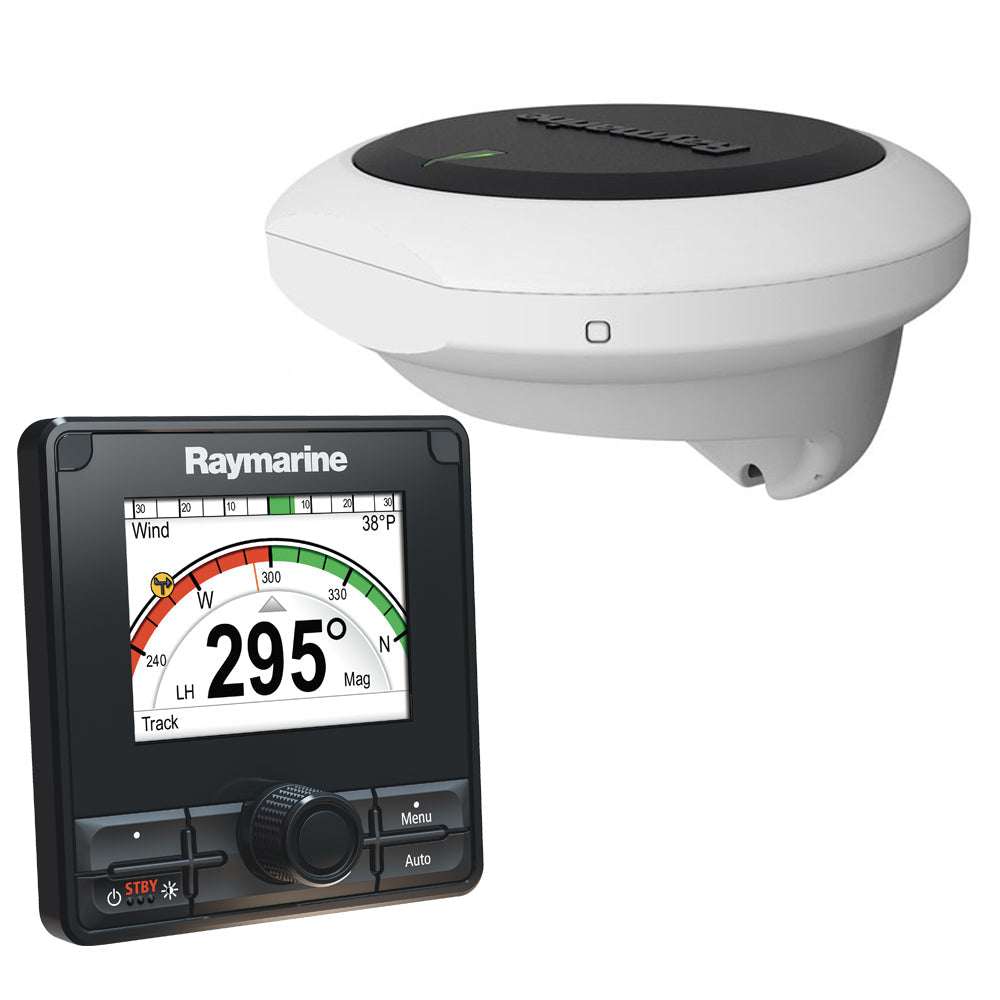

Raymarine EV-DBW Evolution Autopilot for Drive-by-Wire System - T70164

Engineered for simplicity, Evolution autopilots eliminate the need for complicated set up and calibration. Once Evolution is installed, getting started is as easy as switching the autopilot on. Thanks to the intelligent EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments.

The culmination of Raymarine's 30 years of autopilot expertise, FLIR Systems research and development, and advanced aerospace guidance technology, Evolution AI control algorithms deliver a new level of accurate autopilot control. This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximise performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
• Flexible installation options. Mount above or below deck.
• Simple SeaTalk-ng connectivity to the control head and ACU.
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes.
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

Pack Includes:

EV-2 for Drive-by-Wire Propulsion
EV-2 is designed for the latest drive-by-wire steering systems
EV-2 connects directly to Raymarine's SeaTalk^ng bus
It also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems:

• ZF Pod Drives
• Volvo IPS* and Volvo Aquamatic
• Teleflex Optimus Systems
• Yanmar VC10 and JC10 (Joystick) Control Systems

A single CAN Bus connection to the EV-2 eliminates the need for an ACU, further simplifying installation

*Optional Volvo IPS gateway required and additional cabling

Volvo and Volvo Penta are trademarks and/or registered trademarks of

Volvo Trademark Holding AB. Raymarine is not affiliated with, or

endorsed by, Volvo.

p70R Autopilot Control Head (Power)

The p70R autopilot control head is designed for power craft with push

buttons and a rotary control dial. Advanced LED backlighting offers low

power consumption and delivers vibrant colour and contrast. Wide

horizontal and vertical viewing angles ensure the display can be seen

clearly from acute positions.

The p70R control head also

features the LightHouse user interface and a start up wizard to help you

configure the pilot quickly and easily.

Evolution Cabling Kit - R70160

The Evolution SeaTalk^ng cable kit contains:

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Evolution EV-2 Cabling Kit - R70192

The Evolution EV-2 SeaTalk^ng cable kit contains

• 1 x SeaTalk^ng Power Cable (0.4m)
• 2 x DeviceNet / SeaTalk^ng Adaptor Cable (Female)
• 2 x SeaTalk^ng Terminator

Minimum Advertised Price: $2499.99

Specifications
