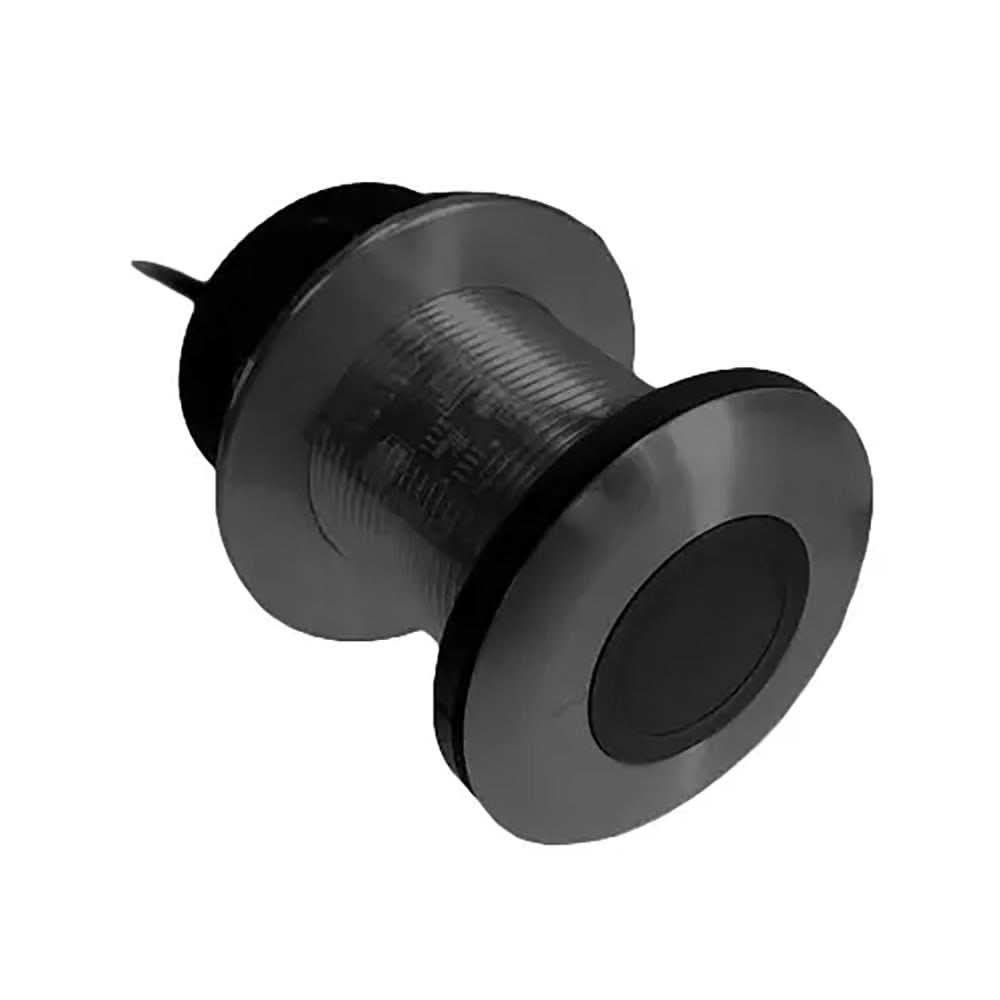

Raymarine DT800 12-Degree Tilt Smart Transducer - A22112

The Raymarine DT800 Smart Transducer (A22112) is a low-profile, thru-hull sensor designed to provide highly accurate depth and temperature data. This "Smart" transducer processes data internally and outputs it directly in NMEA 2000 format, making it compatible with modern Raymarine Axiom displays and other networked marine electronics without the need for an external sonar module.

Engineered for Angled Hulls

The key feature of the A22112 is its 12-degree tilted element. This internal tilt compensates for your boat's hull deadrise, ensuring the sonar beam points straight down to the seafloor for the most accurate depth readings. It is specifically designed for hulls with a deadrise angle between 8° and 15°.

• Low-Profile Design: The housing protrudes only 5mm outside the hull, significantly reducing drag and turbulence compared to traditional transducers.

• Retractable Housing: The sensor insert can be easily removed from its housing for cleaning or storage while the boat is in the water, thanks to an integrated self-sealing water valve.

• NMEA 2000 Connectivity: Features a standard NMEA 2000 (Micro-C) connector for easy "plug-and-play" integration into your boat's data backbone.

• Durable Construction: Made from high-strength plastic (P19), it is ideal for fiberglass and metal hulls and is immune to galvanic corrosion.

Technical Specifications

• Part Number: A22112

• Functions: Depth and Temperature

• Frequency: 235 kHz (prevents interference with other 50/200 kHz sonar on the boat)

• Tilted Element: 12° (for 8° to 15° deadrise)

• Cable: 6-meter (20ft) NMEA 2000 cable

• Hole Diameter: 2 inches (51mm)
