Raymarine B265LH 1kW Bronze Thru Hull with Temp - A80010

Raymarine B265LH 1kW Bronze Thru Hull with Temp - A80010

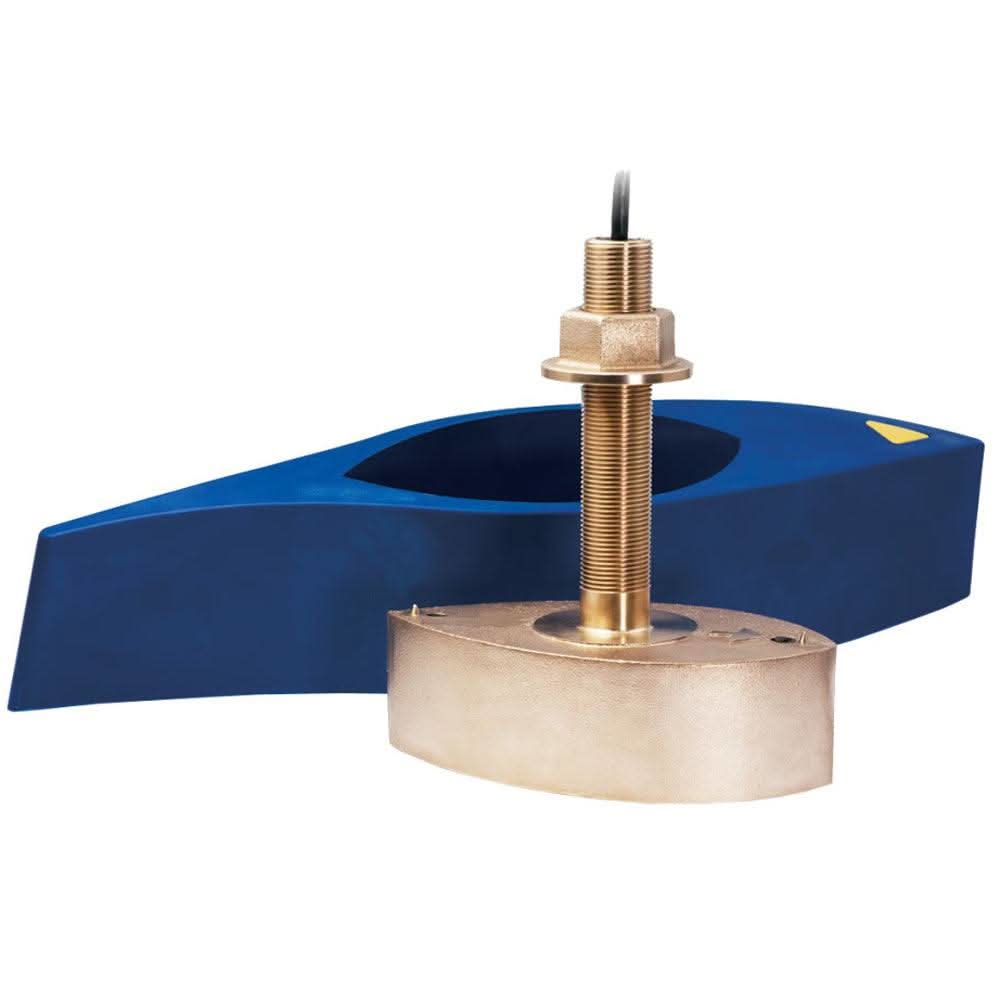

The Raymarine B265LH 1kW Bronze Thru-Hull Transducer with Temperature – Model A80010 is a professional-grade sonar transducer designed for serious offshore and inshore fishing applications. Built with a marine-grade bronze housing for long-lasting saltwater durability, this thru-hull CHIRP transducer provides excellent target separation and depth performance by using dual-frequency sonar to deliver both deep-water penetration and high-resolution shallow imaging. An integrated water-temperature sensor gives you critical temperature readings to help locate thermoclines and understand fish behavior. This transducer is ideal for use with compatible Raymarine CHIRP sonar modules (such as CP470, CP570, Axiom Pro series) to deliver a complete fish-finding and depth-sounding solution.

🔧 Technical Specifications

General

• Model: Raymarine B265LH 1kW Bronze Thru Hull with Temp (A80010)

• Transducer Type: Through-Hull CHIRP transducer

• Material: Bronze – corrosion-resistant and durable for marine conditions

• Mounting Style: Thru-hull installation (fairing block included)

• Cable Length: ~33 ft (10 m)

• Connector: 11-pin CHIRP transducer connector

• Compatible Hulls: Fiberglass or wood with deadrise angles 0°–20°

• Water Temperature Sensor: Integrated for real-time temperature reading

• Power Rating: 1 kW (1000 W RMS)

Sonar Performance

• Frequency Bands:

  • Low: 42 – 65 kHz for deep-water performance

  • High: 130 – 210 kHz for detailed shallow imaging

• Total CHIRP Range: Up to ~103 kHz

• Beam Width:

  • Low: ~25° – 16°

  • High: ~10° – 6°

• Maximum Depth Capability:

  • Low frequency: up to ~3,000 m (~10,000 ft)

  • High frequency: smaller range with finer detail

• Internal Ceramics: 8 elements for strong, consistent CHIRP return signals

• Fairing Block: Included to support optimal performance at speeds above ~30 knots (34 mph)

⭐ Key Features

• Dual-Frequency CHIRP Performance: Combines deep-water detection with high-resolution shallow detail.

• Integrated Temperature Sensor: Provides real-time water temperature data to help identify thermoclines and fish-holding layers.

• Bronze Through-Hull Housing: Corrosion-resistant construction with robust marine durability.

• Broadband Coverage: Excellent target separation, fish detection, and bottom tracking in varied conditions.

• Fairing Block Included: Ensures proper alignment and performance at higher boat speeds.

• Compatible with Raymarine CHIRP Sonar Systems: Works with a wide range of Raymarine displays and modules.

Key Features:

• Raymarine B265LH Bronze Thru-Hull Transducer

• 1kW sonar output for deep and shallow water

• Includes integrated water temperature sensor

• Durable bronze construction for corrosion resistance

• Designed for permanent thru-hull installation

• Provides accurate depth and fish-finding data

• Part Number: A80010

The Raymarine B265LH 1kW Bronze Thru-Hull Transducer ensures reliable sonar performance and precise temperature monitoring, making it an essential tool for serious anglers and navigators.

Manufacturer : Raymarine
Manufacturer Part No : A80010
UPC : 723193706237
