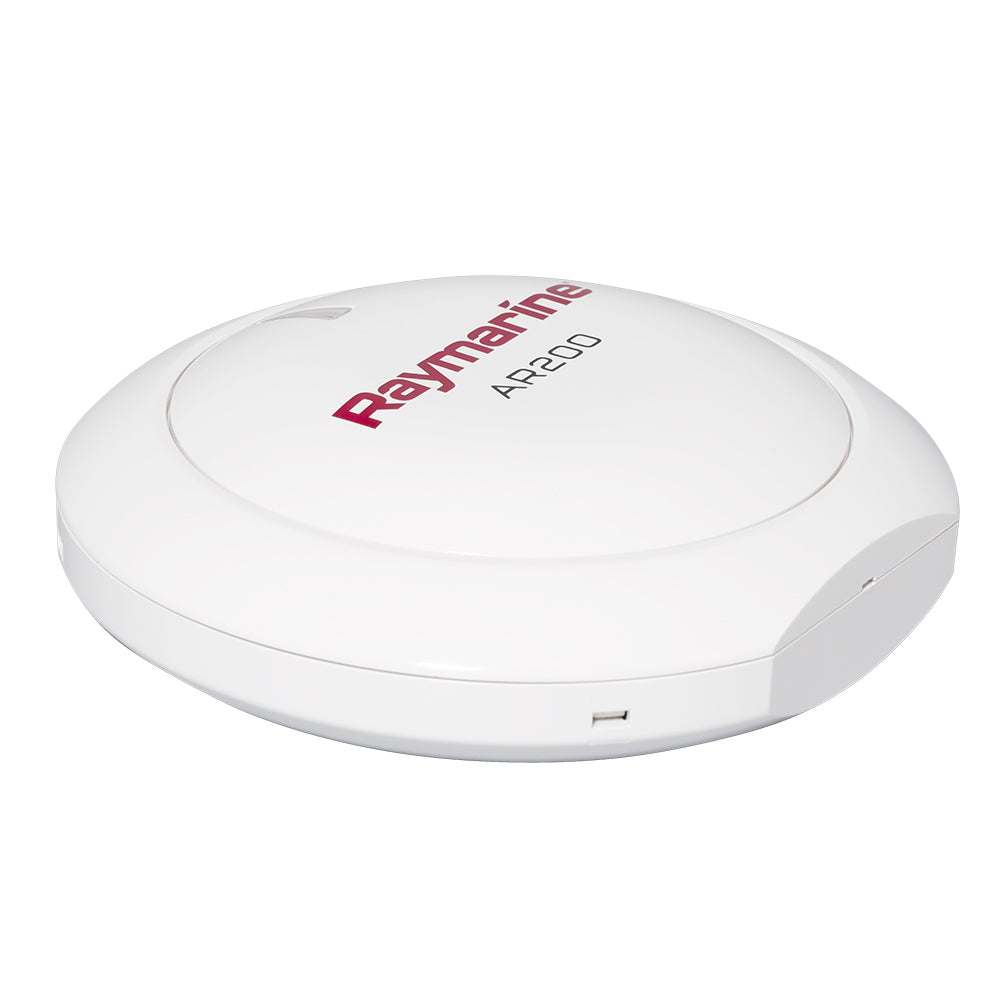

AR200 IP Camera Stabilization Module

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.”

Features:

• 9-axis AHRS (attitude and heading reference system) sensor
• 28-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

In the Box:

• Mounting trim (top)
• Small sealing ring
• AR200
• x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
• Mounting tray (bottom)
• x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
• Bulkhead (wall) bracket
• Large sealing ring
• Documentation
• 6m (19.7ft) SeaTalkNG white cable

Product : RAYMARINE AR200 IP CAMERA STABILIZATION MODULE FOR
Manufacturer : Raymarine
Manufacturer Part No : E70537
Product : RAYMARINE AR200 IP CAMERA STABILIZATION MODULE FOR
