Raritan STC Smart Toilet Control

Raritan STC Smart Toilet Control – Advanced Marine Toilet Control System

The Raritan STC Smart Toilet Control is an advanced electronic control panel designed to provide intelligent operation and efficient flushing control for Raritan marine toilets. Engineered for convenience and performance, this smart control system allows users to easily manage flush cycles while optimizing water usage and system efficiency.

Featuring simple push-button operation, the STC control offers multiple flush options, enabling users to select the appropriate water level and cycle based on needs. This helps reduce water consumption while ensuring effective waste removal, making it ideal for both freshwater and raw water marine toilet systems.

Designed for durability in marine environments, the control panel is built with water-resistant construction and reliable electronic components for long-lasting performance. Its compact design allows for easy installation at the helm, head compartment, or other convenient locations.

Compatible with a range of Raritan marine toilet systems, the STC Smart Toilet Control is an excellent upgrade or replacement for improved functionality and ease of use.

Key Features & Benefits

• Programmable Cycles: Users can easily adjust the duration of intake and discharge phases to match the specific plumbing requirements of their vessel, ensuring a clean bowl every time.

• Dual-Flush Versatility: Features a "Normal Flush" for standard use and a "Water Saver" mode for liquid-only waste, significantly extending the capacity of your holding tank.

• Advanced Monitoring: Includes a built-in holding tank full indicator (requires optional sensor) that automatically disables the flush function to prevent messy overflows.

• Self-Diagnostic Logic: The smart controller monitors the motor and solenoid for power issues, providing visual troubleshooting alerts via the wall-mounted panel.

• Universal Voltage: Compatible with 12V and 24V DC marine electrical systems, making it a versatile upgrade for almost any Raritan electric head.

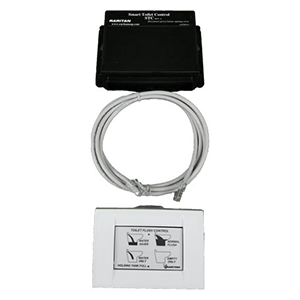

What’s In The Box

• (1) STC Control Box: The "brains" of the system, a microprocessor-based module that manages the intake and discharge timing.

• (1) Smart Toilet Control Panel: A sleek, wall-mounted interface featuring four buttons (Normal Flush, Water Saver, Water Only, Empty Only) and a "Tank Full" indicator light.

• (1) 7-Foot Data Cable: A specialized communication cable used to connect the wall panel to the control box (often an RJ45-style connector).

• (1) Warning Label (L322): A required safety/instructional decal to be placed near the toilet.

• Mounting Hardware: Essential screws for securing both the control box and the wall-mount panel.

• Installation & Operation Manual: Detailed wiring diagrams and programming instructions to customize flush durations.

Important Consideration: Standard vs. Bluetooth

Depending on the specific part number ordered, your kit may vary slightly:

• Standard STC: Includes the 7-foot wired harness mentioned above.

• STCBL (Bluetooth): Includes a wireless control panel that can be mounted up to 50 feet away and is powered by (3) AAA batteries (usually included). This version also allows for programming via a smartphone app.

Items Not Included (Sold Separately)

• Holding Tank Sensor: While the panel has a "Tank Full" light, it will only function if you add an optional sensor such as the STCSA (Stick-on for non-metallic tanks) or STCFL (Float switch).

• Main Power Wiring: You will need to provide the appropriate gauge marine-grade wire and a 30-amp (12V) or 20-amp (24V) circuit breaker.

Compatibility

The STC is the standard control for several Raritan models and can be retrofitted to many others, including:

• Marine Elegance

• Atlantes Freedom

• SeaEra QC

Specifications

• Brand: Raritan

• Model: STC (Smart Toilet Control)

• Type: Electronic flush control panel

• Operation: Push-button control

• Compatibility: Raritan marine toilet systems

• Application: Marine sanitation systems

Upgrade your onboard sanitation system with the Raritan STC Smart Toilet Control, delivering smarter operation, improved efficiency, and reliable performance for modern marine bathrooms.

Quick Tip: The STC requires a specific data cable (included in most full kits) to connect the wall panel to the control box. If you are replacing just the wall panel and need a new 15-foot or 25-foot RJ45 cable, I can find those for you.

Manufacturer : Raritan
Manufacturer Part No : STC
Product : RARITAN SMART CONTROL
