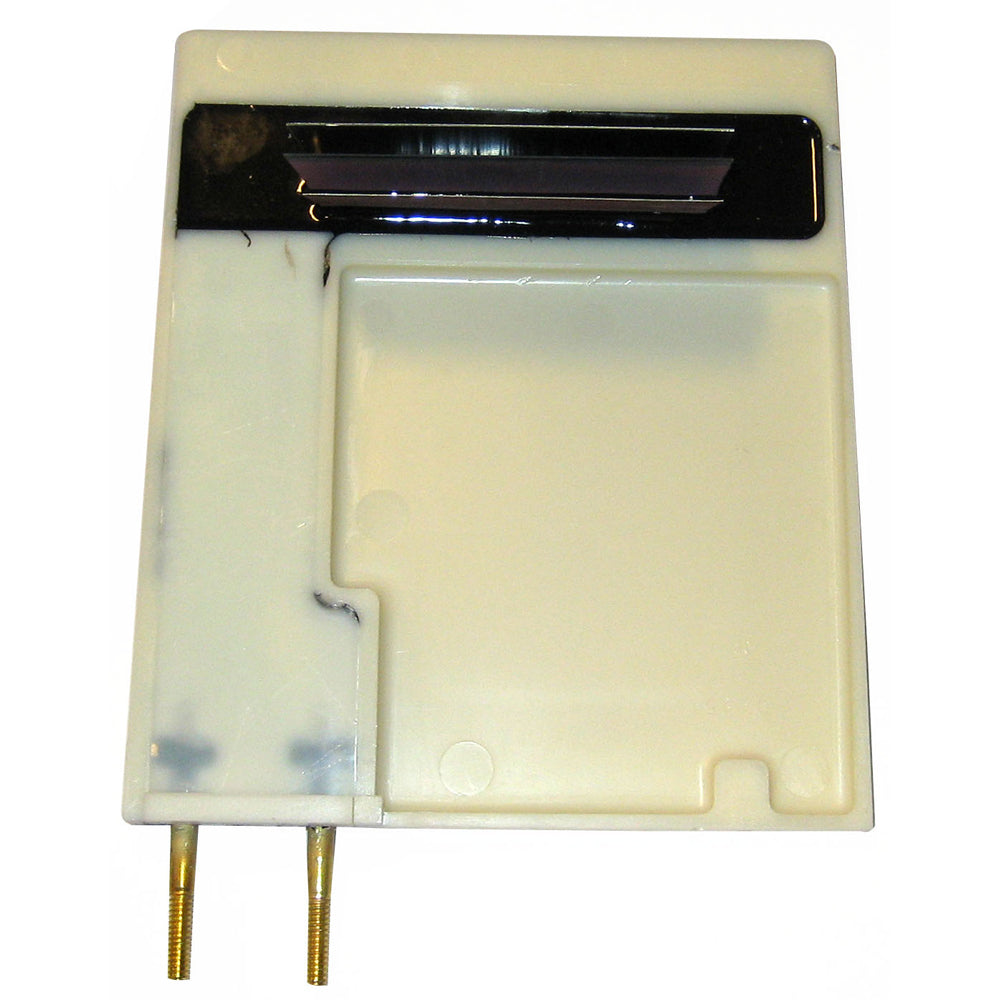

Raritan Electrode Pack 12V – 32-5000
Keep your Raritan marine sanitation treatment system operating effectively with the Raritan Electrode Pack 12V (32-5000). This genuine Raritan replacement electrode pack is designed for compatible 12V Lectra/San and Electro Scan marine waste treatment systems, providing the critical electrochemical action required during the onboard waste treatment process.
During a treatment cycle, electrical current passes through conductive salt water across the electrode plates. This process produces hypochlorous acid, which acts as a powerful bactericide and oxidizing agent to support the system's waste-treatment process.
Designed as an OEM replacement component, the 32-5000 Electrode Pack is an ideal choice when servicing worn or deteriorated electrodes in a compatible Raritan treatment unit. Using the correct 12V replacement helps maintain proper system operation and eliminates the uncertainty associated with adapting non-OEM components.
Key Features
- Genuine Raritan Replacement Part: OEM electrode pack for compatible Raritan marine sanitation treatment systems.
- 12V DC Configuration: Specifically designed for 12-volt treatment units; Raritan identifies 32-5000 as its 12V electrode pack.
- Lectra/San & Electro Scan Application: Replacement electrode pack for compatible Raritan Lectra/San and Electro Scan systems.
- Essential Treatment Component: Energized during the treatment cycle as electrical current passes through conductive salt water.
- Electrochemical Treatment: Helps produce hypochlorous acid at the electrode plates as part of the sanitation treatment process.
- OEM Fit & Function: Designed for direct replacement in applicable Raritan systems.
What’s in the Box
The 32-5000 kit is a comprehensive replacement set that includes:
-
Electrode Plates: High-performance plates designed for efficient salt-water electrolysis.
-
Sealing Gaskets: Fresh gaskets to ensure a watertight seal when reassembling the treatment tank.
-
Hardware: Necessary screws and terminals for secure electrical connections.
-
Installation Instructions: A guide for proper alignment and wiring.
Key Features
-
Compatibility: Designed specifically for 12V ElectroScan and Lectra/San units manufactured after a certain date (verify your serial number).
-
Waste Treatment: Facilitates the electrochemical process that converts saltwater into a powerful bactericide, eliminating the need for holding tanks in many areas.
-
Durability: Engineered to withstand the harsh chemical environment inside a marine treatment tank.
| Specification | Detail |
| Manufacturer | Raritan Engineering |
| Part Number | 32-5000 |
| UPC | 085462002458 |
| Operating Voltage | 12V DC |
| Package Weight | 0.85 lbs |
| Package Dimensions | 11" L x 7" W x 7" H |
Maintenance Tip
If your system frequently displays "Low Current" or "High Salt" errors, it is often a sign that the electrodes are scaled or depleted. Regular cleaning with a muriatic acid solution can extend their life, but they must be replaced once the coating has worn away to maintain treatment efficacy.
The Raritan Electrode Pack 12V – 32-5000 is an essential service part for keeping your Raritan sanitation system operating safely, efficiently, and reliably on the water.
Manufacturer : Raritan
Manufacturer Part No : 32-5000
UPC : 085462002458
