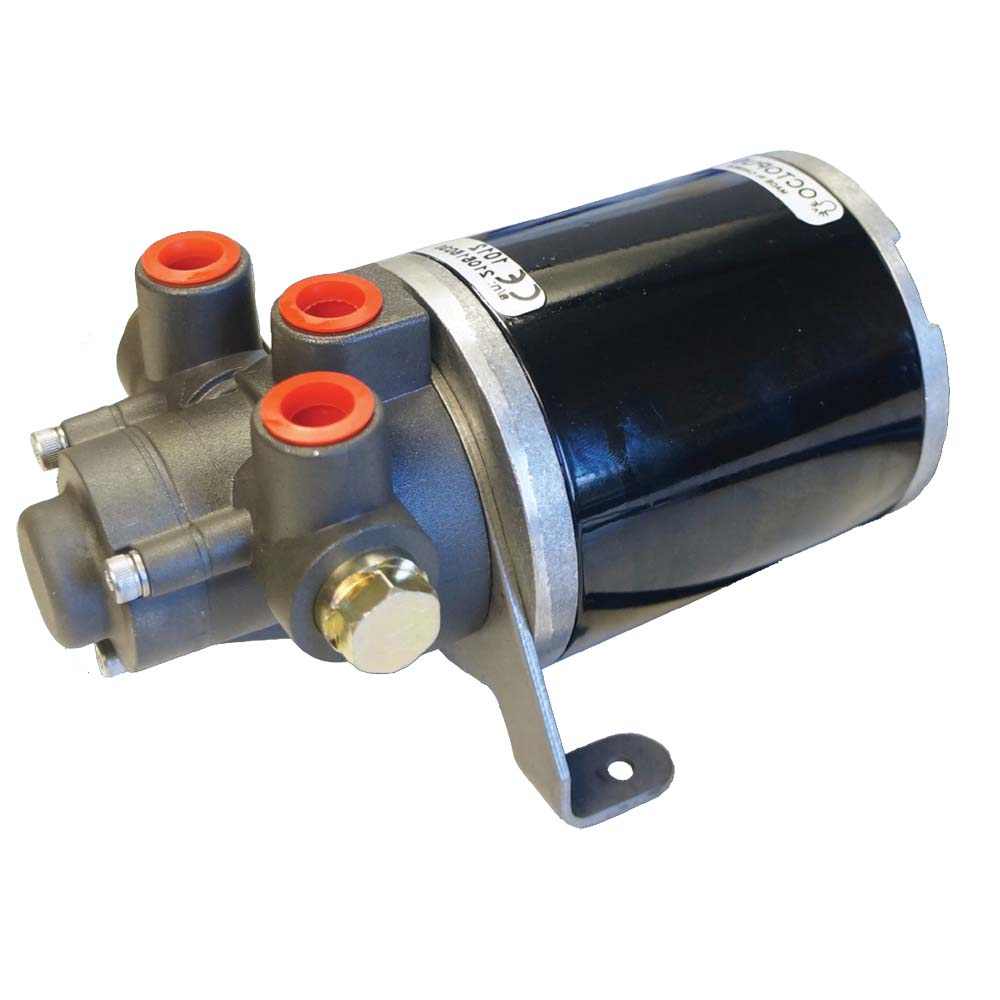

Octopus Hydraulic Gear Pump - 24V - 16-24CI Cylinder - OCTAFG3024

Octopus 24V Hydraulic Gear Pump - 16-24CI Cylinder (OCTAFG3024)

The Octopus Hydraulic Gear Pump - 24V - 16-24CI Cylinder OCTAFG3024 is a high-performance, reversing 24V hydraulic gear pump designed for medium-to-large vessels. Engineered specifically for steering cylinders with a displacement between 16 and 24 cubic inches (260cc - 400cc), this pump is the preferred choice for commercial vessels and large cruising yachts with 24V electrical systems.

Precision Engineering for 24V Systems

This "G2" (Generation 2) pump offers superior volumetric efficiency, meaning more oil is moved with less electrical draw. For vessels operating on 24V, this translates to cooler operation and reduced stress on the autopilot's power transistors. The gear-driven design provides a constant, reliable flow that is much smoother than older piston-style pumps, resulting in quieter course corrections and a more stable helm.

Key Features:

• Optimized Flow Rate: Delivers a nominal flow of 1.6 Liters Per Minute (LPM), perfectly calibrated for 16-24CI rams to achieve ideal hard-over times.

• Low Power Consumption: The 24V configuration and efficient gear design ensure minimal battery drain, which is critical for long-range offshore passage making.

• Whisper-Quiet Operation: Advanced gear machining reduces the "whine" commonly associated with autopilot pumps, making it suitable for mounting near living quarters.

• Compact & Robust: The integrated manifold reduces the number of external parts, creating a smaller footprint that is easier to mount in restricted spaces.

• Ignition Protected: Fully compliant with ISO 8846 and SAE J1171, allowing for safe installation in engine compartments (gasoline or diesel).

• Extended Brush Life: Features a high-quality permanent magnet motor designed for professional-grade durability.

Technical Specifications:

• Model Number: OCTAFG3024

• Voltage: 24V DC

• Nominal Flow Rate: 1.6 LPM (1600cc/min)

• Cylinder Range: 16 - 24 cubic inches (262cc – 393cc)

• Maximum Pressure: 55 Bar (800 PSI)

• Hydraulic Ports: 1/4" NPT

• Protection Rating: IP55

• Weight: ~4.5 lbs (2.1 kg)

Why Choose the OCTAFG3024?

The OCTAFG3024 is an industrial-strength solution for 24V boats. Octopus pumps are world-renowned for their reliability; while other pumps may struggle with the heat generated by constant corrections in heavy following seas, the Octopus gear pump remains cool and consistent. It is a "top-tier" replacement or upgrade for systems from Raymarine, Simrad, or Garmin.

Installation Pro-Tip:

When installing a 24V pump, ensure that the wire gauge (AWG) is sufficient for the length of the run from the autopilot computer to the pump. Even though 24V systems have lower current than 12V, voltage drop can still impact the pump's torque. Always use tinned marine-grade copper wire to prevent corrosion and maintain peak performance.
