Octopus 7" Stroke Mounted 38mm Bore Linear Drive - 12V - Up to 45' or 24,200lbs - OCTAF1012LAM7

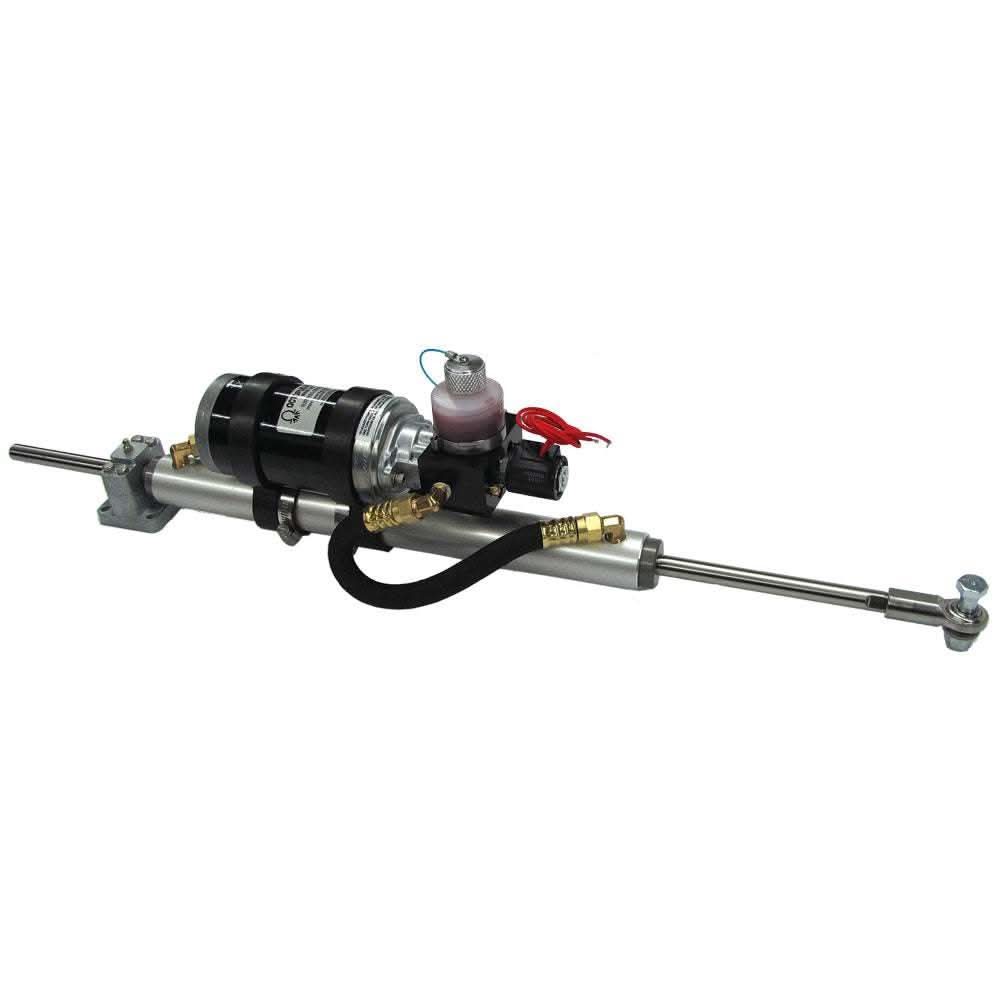

Octopus 7" Stroke Mounted Linear Drive – 38mm Bore – 12V (Model OCTAF1012LAM7)

The Octopus 7" Stroke Mounted Linear Drive is a high-performance 12V marine autopilot steering drive engineered for accurate and reliable rudder control on vessels up to 45 feet or 24,200 lbs of displacement. Featuring a heavy-duty 38mm bore hydraulic cylinder and a 7-inch stroke, this mounted linear drive delivers smooth, consistent steering response in coastal and offshore conditions.

Designed for direct mounting, the Octopus OCTAF1012LAM7 provides a compact, space-efficient solution that integrates seamlessly with compatible Octopus and major-brand autopilot systems. Its rugged construction uses marine-grade, corrosion-resistant materials to withstand harsh saltwater environments and continuous operation.

Built for precision and durability, this linear drive reduces steering load on autopilot systems, improves course-keeping accuracy, and ensures dependable performance for larger sailboats and powerboats requiring high thrust capacity.

Key Features:

• Stroke Length: 7 inches

• Bore Size: 38mm

• Voltage: 12V DC

• Maximum Boat Length: Up to 45 ft

• Maximum Displacement: Up to 24,200 lbs

• Direct-mounted linear drive design

• High thrust for precise autopilot steering

• Corrosion-resistant marine construction

• Model: OCTAF1012LAM7

Applications:

• Sailboats and powerboats up to 45 ft

• Marine autopilot hydraulic steering systems

• Offshore and coastal navigation

Choose the Octopus 7" Stroke Mounted 38mm Bore Linear Drive – 12V (OCTAF1012LAM7) for powerful, precise autopilot steering and trusted Octopus marine quality.

Why Choose the Octopus 7" Mounted Drive?

The OCTAF1012LAM7 is the perfect solution for boaters who need a high-power autopilot drive but have limited space in the lazarette. By combining 1,200 lbs of thrust with a compact 7" travel, it allows for a professional hydraulic installation on boats where a traditional remote pump system might not fit. It offers the "set-and-forget" reliability that blue-water sailors demand.

Installation Pro-Tip:

Even though this is a compact unit, the 1,200 lbs of thrust puts immense pressure on the mounting surface. Always secure the mounting foot to a reinforced part of the hull or a dedicated steel/G10 bracket. Ensure that the drive is mounted parallel to the quadrant or tiller arm at the mid-stroke position to prevent side-loading the piston rod, which can cause premature seal wear.
