Johnson Pump 1.1 Pump/Faucet Combo 12V - 61123

Johnson Pump 1.1 GPM Pump/Faucet Combo (12V) | 61123

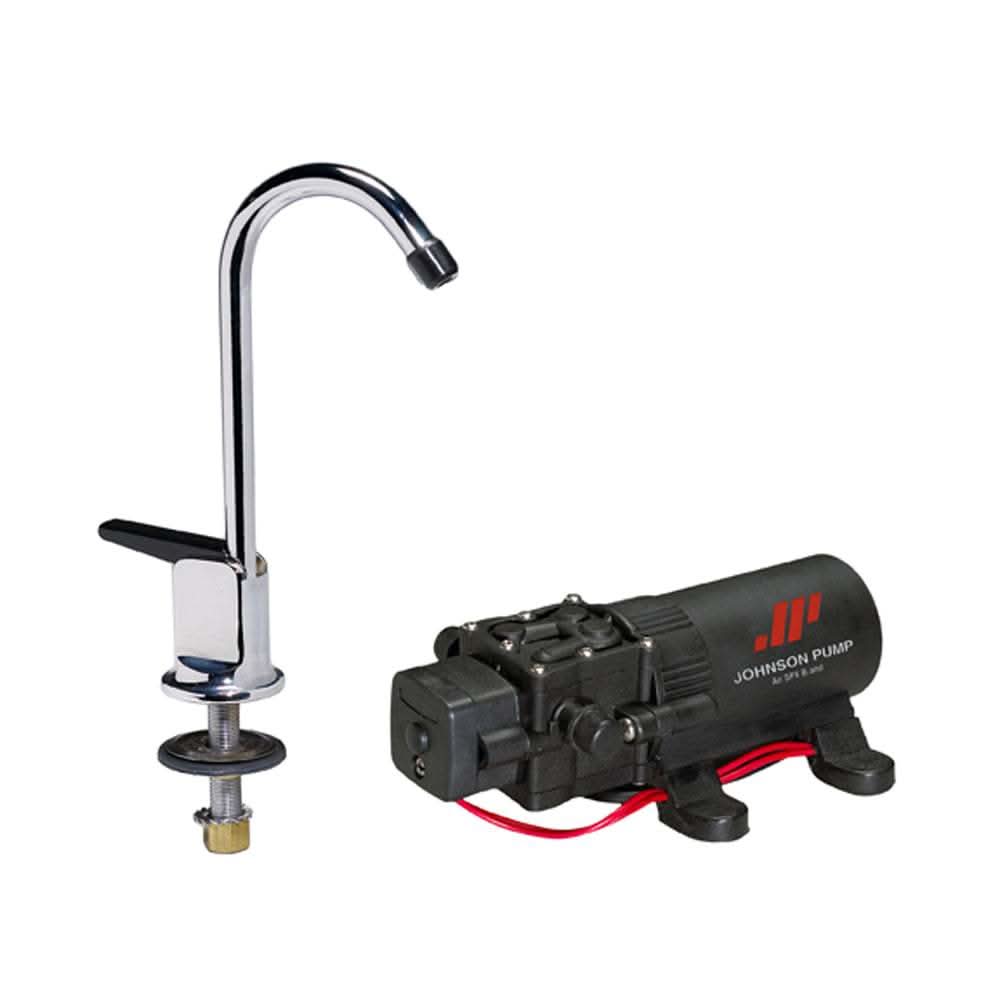

The Johnson Pump 1.1 Pump/Faucet Combo 12V 61123 is a compact, all-in-one freshwater solution designed specifically for small boats, campers, and van conversions. This kit includes a 1.1 GPM (4 L/min) electric diaphragm pump paired with a matching chrome-finished faucet, providing an easy and affordable way to add running water to a galley or small sink.

Simple and Reliable Freshwater Delivery

The system is designed for simplicity. Unlike pressurized water systems that require an accumulation tank and complex plumbing, this combo is often used with a simple on/off switch or the integrated switch in the faucet handle. The pump is small enough to be tucked away in a cabinet or under a bench, yet powerful enough to provide a consistent flow for washing hands or dishes.

Key Features:

• Complete Combo Kit: Comes with both the 12V water pump and a classic-style vertical faucet for a "one-purchase" installation.

• Self-Priming Pump: The 1.1 GPM diaphragm pump can prime itself up to 4 feet (1.2m), allowing the water tank to be located lower than the pump.

• Quiet Operation: Features a smooth-running motor and vibration-absorbing feet to minimize noise in small cabins.

• Dry-Run Safe: The pump is designed to handle being run without water for short periods without damaging the internal diaphragms.

• Corrosion-Resistant Materials: The faucet features a bright chrome finish that resists the marine environment, while the pump uses stainless steel fasteners.

• Easy Installation: Uses standard 3/8" (10mm) hose barbs, making it compatible with common flexible marine plumbing.

• Low Power Draw: With a peak draw of only 2.5 Amps, this system is very gentle on small battery banks.

Technical Specifications:

• Model Number: 61123

• Flow Rate: 1.1 GPH (4.2 L/min)

• Voltage: 12V DC

• Amperage: 2.5 Amps

• Fuse Size: 4 Amps

• Port Size: 3/8" (10mm) Hose Barb

• Faucet Material: Chrome-plated plastic/metal

• Dimensions (Pump): ~6.5" L x 4" W x 2.5" H

Why Choose the Johnson 1.1 GPM Combo?

The Johnson Pump 1.1 Pump/Faucet Combo 12V 61123 is the perfect "entry-level" water system. It is favored by DIY boat builders and overland adventurers because it eliminates the guesswork of matching a pump to a faucet. Its small footprint and low amp draw make it ideal for day boats or small fishing rigs where a full-scale pressurized system would be overkill.

Installation Pro-Tip:

To ensure the best water quality and protect your pump, install a small inline strainer on the intake hose between the water tank and the pump. This prevents sediment or plastic bits from the tank from reaching the pump valves or the faucet aerator.
