Raymarine YachtSense Link Mobile Router - E70640

$1,101.99 $1,319.99
SKU: 93696

Manufacturer Part #: E70640

Raymarine YachtSense Link Mobile Router - E70640

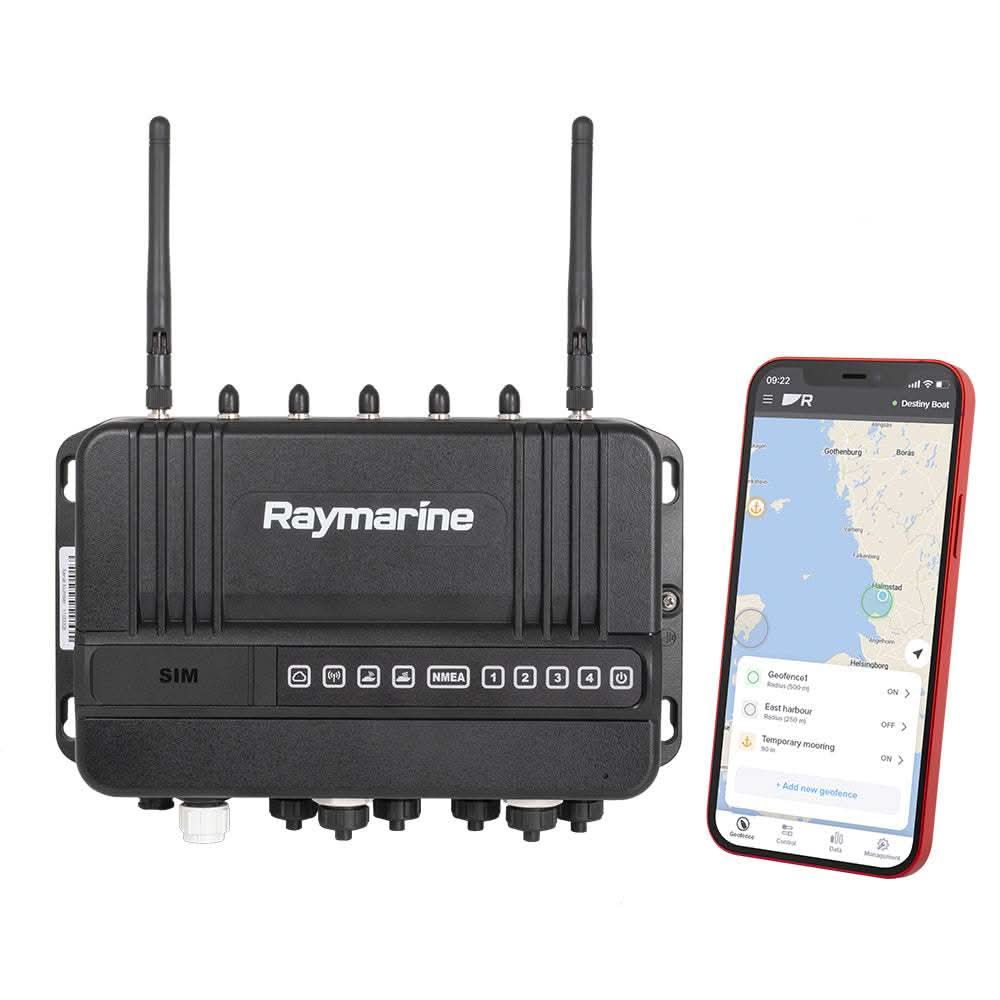

The Raymarine YachtSense Link (E70640) is a multi-purpose marine mobile router designed to serve as the communications hub for your vessel. It unifies 4G (LTE) broadband, marina Wi-Fi, and onboard RayNet Ethernet into a single, secure network.

Always Connected, On or Off the Boat

The YachtSense Link ensures your crew stays connected by automatically switching between dockside Wi-Fi and 4G mobile networks based on availability.

  • Dual SIM Support: Features two SIM slots, allowing you to maintain international connectivity or switch between providers for the best local coverage without swapping cards.

  • Unified Onboard Network: Connects Axiom displays, smartphones, tablets, and smart TVs to a single high-speed network for data sharing and entertainment.

  • 4-Port RayNet Switch: Includes four integrated RayNet Ethernet ports to easily network multiple Raymarine displays and sensors.

  • Integrated GPS: Comes with a high-performance 5-in-1 antenna (GNSS, 3G, 4G, and Wi-Fi) to ensure accurate positioning and strong signal reception even in remote areas.

Remote Monitoring & Digital Switching

When paired with the Raymarine mobile app, the YachtSense Link transforms into a powerful remote monitoring system for your vessel.

  • GeoFence Protection: Receive instant mobile alerts if your vessel moves inside or outside a defined safety zone while you are away.

  • Digital I/O Channels: Features four input and output channels to remotely monitor and control low-voltage electrical devices like bilge pumps, lighting, and battery levels.

  • Real-Time Data: View instrument and navigation data from your NMEA 2000 network directly on your phone, whether you are at the helm or at home.

Technical Specifications

  • Part Number: E70640

  • Network: 4G LTE (Category 4), Wi-Fi (2.4GHz & 5GHz), and RayNet.

  • Data Speeds: Up to 150 Mbps download / 50 Mbps upload.

  • Environmental: Rugged IPX6/IPX7 waterproof rating; shock and vibration resistant.

  • Included Cables: 1m RayNet to RJ45, 1m SeaTalkng spur, and 1.5m power cable.

To get the most out of the remote monitoring features, you may want to consider a Raymarine Premium Subscription for enhanced GeoFence alerts.

YachtSense Link Marine Mobile Router

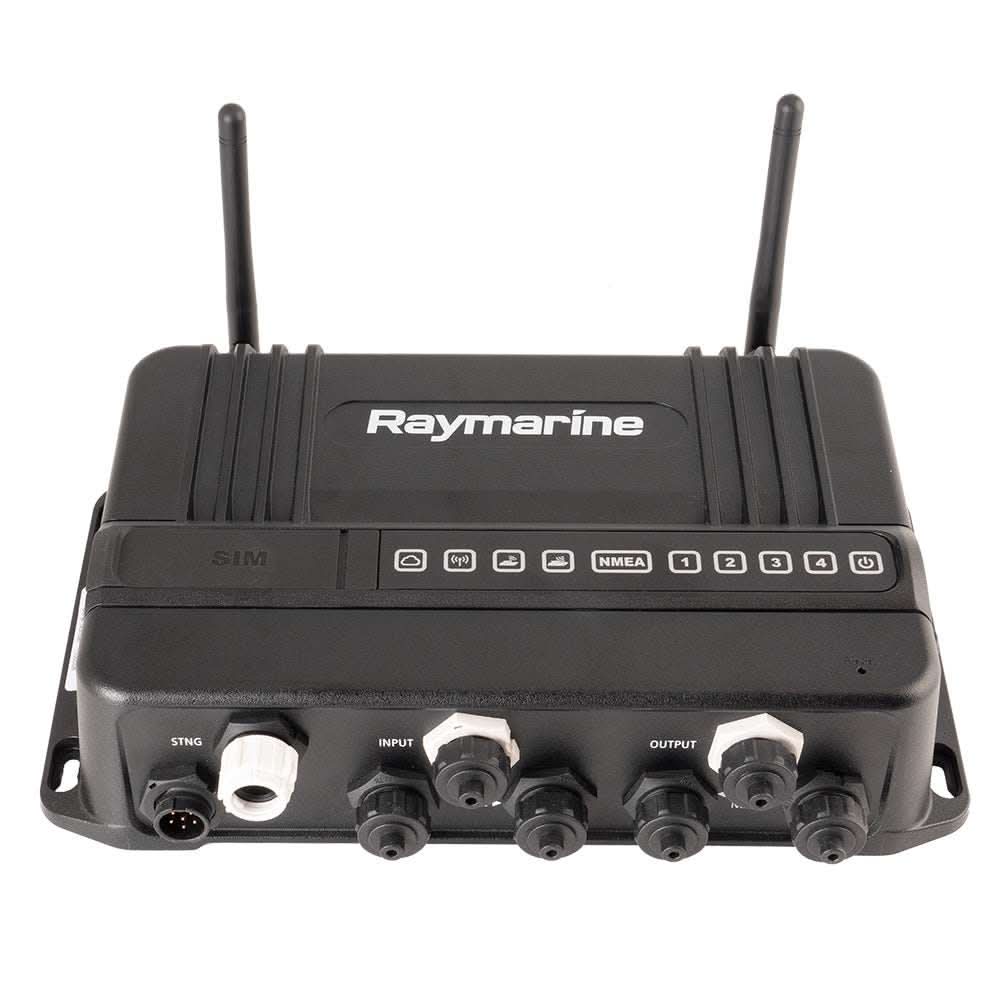

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

Remote Monitoring

  • GeoFence provides alerts and notifications if your vessel moves in or outside a safety zone.
  • Low power consumption mode supports GeoFence remote monitoring (subscription required)
  • x4 input and output low voltage digital switching channels
  • Easy DIY setup using a web browser or Axiom display

Always Connected

  • Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard network
  • Mobile broadband connection to 4G (LTE) networks (SIM card and data plan required)
  • Supports dual SIM cards for seamless connectivity to international mobile networks
  • Integrated GPS with a range extending 4 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)

Stay Informed

  • Connect and view real time instrument and navigation data on board or remotely
  • x4 Raynet Ethernet ports for connecting Raymarine devices
  • SeaTalkNG/NMEA2000 port
  • Rugged IPX6 enclosure is shock and vibration resistant

POWER SPECIFICATION

  • Nominal supply voltage: 12 / 24 V dc
  • Operating voltage range: 8 V dc to 32 V dc

ENVIRONMENTAL SPECIFICATION

  • Operating temperature range: -25°C (-13°F) to + 55°C (131°F)
  • Storage temperature range: -30°C ( 22°F) to + 70°C (158°F)
  • Humidity: up to 93% @ 40°C (104°F)
  • Water ingress protection: IPx6

PHYSICAL SPECIFICATION

  • Dimensions (w x h x d): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)
  • Weight: 1.03 Kg (2.26 lb)

WIRELESS NETWORKS SPECIFICATION

Boat Wi-Fi: Wi-Fi access point mode frequencies:

  • 2.4 GHz (2412 MHz to 2472 MHz
  • 2422 MHz to 2462 MHz): 13.28 dBm

Dock WLAN: Wi-Fi station mode frequencies:

  • 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
  • 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
  • 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm

Cellular / Diversity: 2G/3G/4G frequencies:

  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28
  • LTE-TDD: B38/B39/B40/B41
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8




Manufacturer : Raymarine
Manufacturer Part No : E70640

Selling fast!
Grab yours while you can

Reviews (2)

Customer Reviews

Based on 2 reviews
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(2)
M
Michael Bay
Yachtsense Doesn't Really Work as Advertised

Not liking Yachsense at all. Wireless connections (iPad, phone, lap top) don't have access to the boat's wired internet connections (camera, NEMA2K interface, etc) to the router. 4G connections to Verizon don't work or even connect most of the time. I will look to return this brick. Will reinstall the previously connection method of an ASUS 68U router with a 4G modem and it worked flawlessly.

M
Michael Bay
Doesn't work with Verizon

The unit has two major flaws and after 2 1/5 months of back and forth with Raymarine, and 1 new unit after the first one was programmed with an incorrect IMEI number I am return what has been a useless brick. 1) when connected to WiFi you can not see connections on the wired ethernet like a normal home router 2)the unit just will not work consistently with version's network. Verizon says the router is at fault, an raymarine support is non existent.
