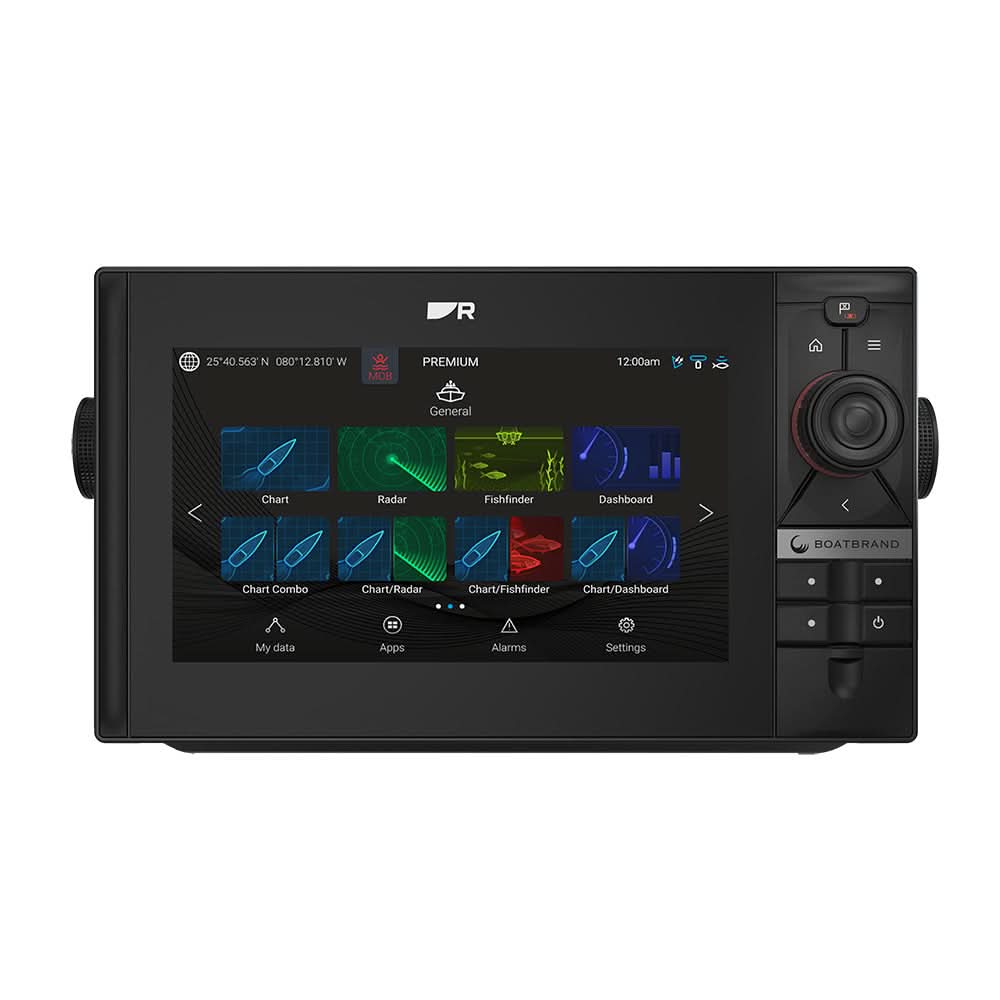

Raymarine Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder - No Transducer or Chart - E70653

Raymarine Axiom

Raymarine Axiom 2 Pro 9 S 9” Chartplotter / Fishfinder – E70653 is a high-performance marine multifunction display designed for serious anglers and boaters who demand speed, clarity, and reliability. Powered by Raymarine’s advanced LightHouse operating system, this chartplotter delivers ultra-fast response, intuitive touchscreen control, and seamless integration with Raymarine marine electronics.

The Axiom 2 Pro 9 S features a bright 9-inch SolarMAX™ IPS display, offering exceptional visibility in direct sunlight and wide viewing angles on the water. Built with a powerful quad-core processor, it supports advanced navigation, radar, sonar, and networking capabilities. This model is sold without transducer or charts, making it ideal for users who want to customize their sonar and chart solutions.

Designed for both coastal and offshore navigation, the Raymarine Axiom 2 Pro provides reliable performance, superior build quality, and expandable functionality for modern boating and fishing applications.

📊 Display

• Screen Size: 9" diagonal, high-visibility IPS display with HybridTouch™ touchscreen + keypad control

• Resolution: 1280 × 720 HD (16:9)

• Brightness: Up to 1300 nits — excellent for direct sunlight readability

• Viewing Angles: Wide 88° all around

• Color Depth & Touches: 24-bit color, multi-touch support (1–16 touches)

🧠 Processing & Software

• Operating System: LightHouse OS with fast, intuitive interface

• Processor: High-performance quad-core (standard for Axiom Pro displays)

📡 GPS & Navigation

• Built-in GNSS Receiver: Yes — GPS, GLONASS, Galileo, and BeiDou compatible

• Position Accuracy: With SBAS ≤ 5 m, without SBAS ≤ 15 m

• Refresh Rate: 10 Hz

🌊 Sonar (Fishfinder)

• Built-in Sonar: High CHIRP conical sonar for depth sounding

• Depth Range: Approximately 0.6 m to 274 m (2 ft to 900 ft, depending on conditions)

• Transducer Port: 25-pin RealVision connector (adaptor cable required)

🔌 Connections & Networking

• Ethernet Ports: Dual RayNet (10/100/1000 Mbps)

• Wireless: Wi-Fi (2.4 & 5 GHz) and Bluetooth v4.0

• NMEA 2000 & 0183: Standard DeviceNet and serial support

• External GPS Antenna: TNC connector

• Accessory / USB: USB Micro-B port

• Video / Audio: HDMI out (Micro), analog video in (BNC), RCA audio in/out

• Storage: 64 GB internal solid-state + 2 front MicroSDXC slots

⚡ Power & Environmental

• Voltage: 8–32 Vdc (12/24 V typical)

• Power Consumption: ~33 W @ 12 V

• Operating Temp: −25°C to +55°C (−13°F to 131°F)

• Waterproof: IPX6 / IPX7 rugged design for marine environments

📏 Physical

• Surface/Flush Dimensions: ~173.8 × 299.3 × 234.9 mm (H × W × D including cables)

• Trunnion Mount Dimensions: ~186.2 × 329.5 × 234.9 mm

• Weight: ~4 kg (8.8 lbs)

!

Manufacturer : Raymarine
Manufacturer Part No : E70653
