Maretron GPS200 NMEA 2000 GPS Receiver - GPS200-01

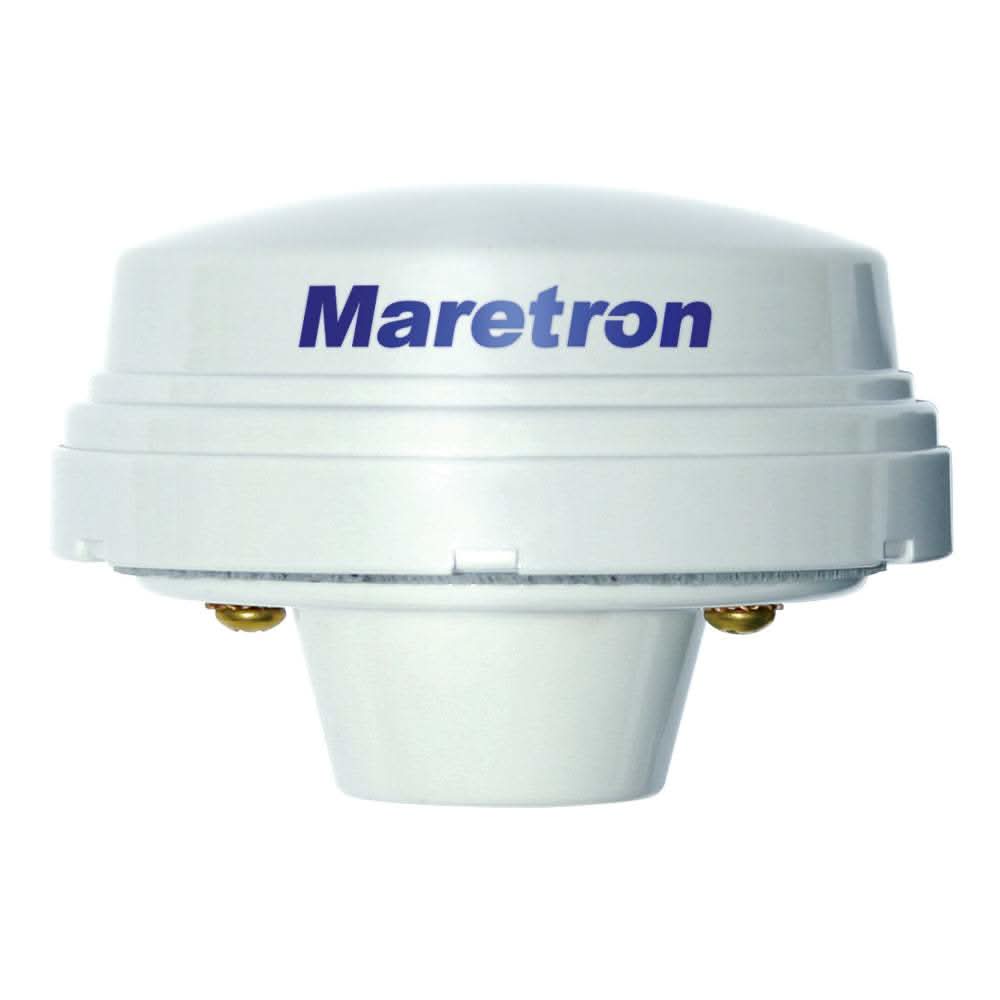

Maretron GPS200 NMEA 2000 GPS Receiver – GPS200-01

Upgrade your vessel’s navigation and positioning capabilities with the Maretron GPS200 NMEA 2000 GPS Receiver (GPS200-01) — a high-performance, network-ready GPS engine that delivers precise global positioning and timing data directly to your boat’s NMEA 2000® network. Designed for recreational and commercial marine use, the GPS200 combines rugged construction with reliable satellite reception, making it ideal for navigation, route planning, waypoint fixing, and vessel tracking.

Compact and easy to install, the GPS200 seamlessly integrates into your NMEA 2000® system to provide constant latitude, longitude, speed over ground (SOG), course over ground (COG), date, time, and position accuracy to compatible displays, chartplotters, multifunction displays (MFDs), and vessel monitoring software. Its marine-grade housing and sealed connectors ensure dependable operation in harsh offshore environments.

Whether you’re plotting courses, syncing system time, or feeding accurate position data to autopilots and chart systems, the Maretron GPS200 maximizes the performance of your onboard electronics with true GPS precision and certified network compatibility.

Technical Specifications

• Brand: Maretron

• Model: GPS200 NMEA 2000 GPS Receiver

• Part Number: GPS200-01

• Network Interface: NMEA 2000® (IEC 61162-3)

• Position Accuracy: Typically <2.5 m CEP (varies with conditions and satellite geometry)

• Satellite Systems: GPS (and may support SBAS/WAAS/EGNOS/MSAS depending on region)

• Data Output: Position, SOG, COG, UTC time/date, satellite status

• Connectors: Sealed NMEA 2000® male/female connectors

• Power: Powered from the NMEA 2000® network

• Operating Environment: Marine-rated weatherproof design

Benefits

• Delivers accurate navigation data to your entire NMEA 2000® network

• Improves waypointing, routing, and chartplotting performance

• Provides reliable time sync for systems and alarms

• Enhances autopilot performance with real-time GPS input

• Reduces clutter with direct NMEA 2000® backbone connection

Applications

• Navigation and chartplotter position input

• Autopilot course guidance

• Vessel monitoring and tracking systems

• Integration with Maretron displays and third-party MFDs

• Logging of position and trip data in onboard software

Summary for the User

The GPS200 is an excellent primary or backup GPS source for any vessel. Because it is a "smart" sensor, it sends Position, Course Over Ground (COG), Speed Over Ground (SOG), Time, and Date to every device on your boat simultaneously, ensuring your VHF radio (for DSC), autopilot, and chartplotter are all perfectly synchronized.

Installation Tip: For the best performance, mount the antenna with a clear view of the sky. While it can "see" through fiberglass, avoid mounting it directly under metal hardtops or radar arches which can degrade signal quality.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Maretron
Manufacturer Part No : GPS200-01
UPC : 873804000268
