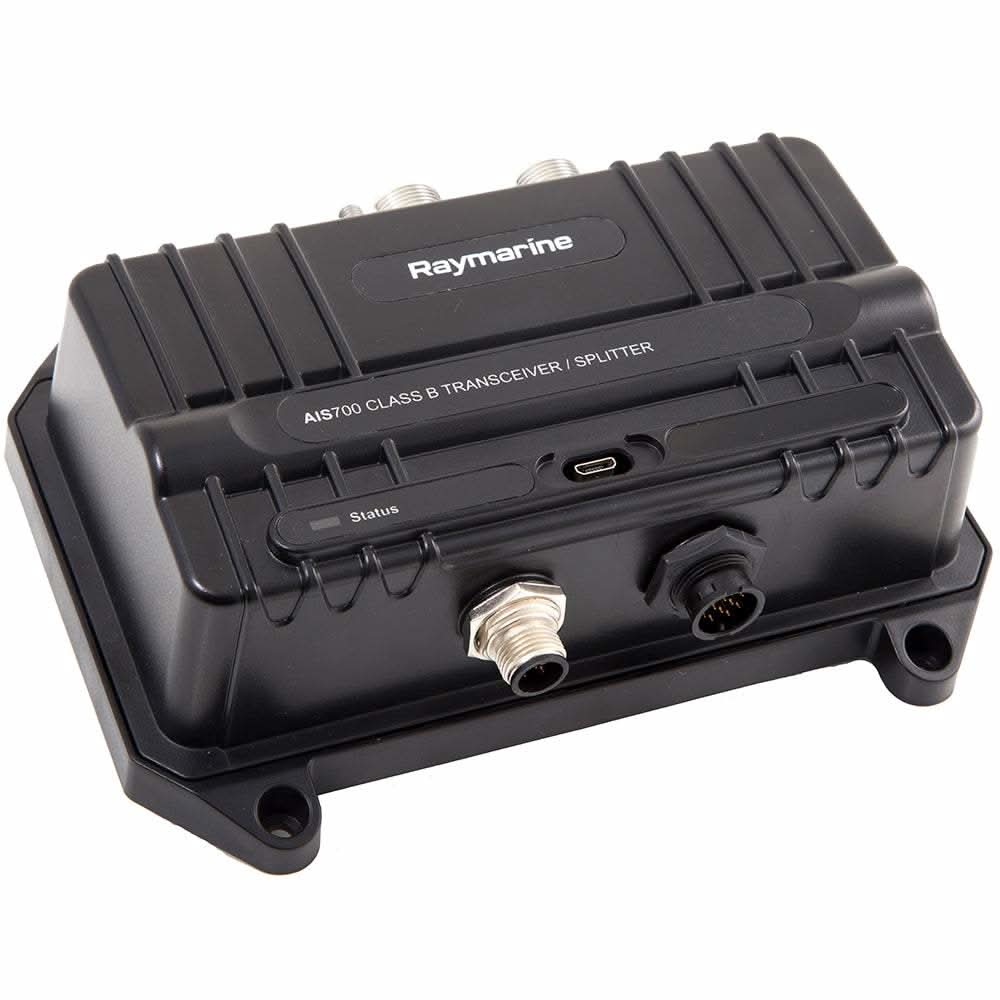

Raymarine AIS700 Class B AIS Transceiver with Antenna Splitter (Includes programming) - E70476

AIS700 Class B AIS Transceiver with Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The Raymarine AIS700 Class B AIS Transceiver with Antenna Splitter (E70476) is a high-performance AIS transceiver that enhances your vessel’s situational awareness and collision avoidance capabilities. Designed for recreational and commercial craft, it receives and transmits AIS data to and from nearby vessels, aiding navigation and safety on busy waterways. Its built-in antenna splitter lets you share your existing VHF antenna with your VHF radio — simplifying installation and reducing equipment clutter. With advanced SO-TDMA technology for stronger signal network performance and integrated GPS/GNSS, this unit is ideal for integration with your chartplotter, multifunction display, and onboard electronics.

🔧 Technical Specifications

AIS Performance

• AIS Class: Class B transceiver (send & receive) with 5 W SO-TDMA technology for enhanced range and faster updates.

• Receiver Channels: Dual receiver design for robust signal reception.

• Operating Frequency: 156.025 – 162.025 MHz (in 25 kHz steps).

Antenna & Splitter

• Built-In Antenna Splitter: Shares a single VHF antenna between the AIS unit and your VHF radio, reducing hardware needs and cost.

• VHF Antenna Connector: SO-239 coaxial.

GPS / GNSS

• GNSS Receiver: Integrated u-blox MAX-M8W GPS/GLONASS with ~72 channels for fast, accurate position fixes.

• Cold Start Acquisition: ~26 s typical.

• External GNSS Antenna Included: Yes (with 10 m cable and mount).

Interfaces & Networking

• NMEA 2000: DeviceNet connector with 1 LEN load.

• NMEA 0183: Dual high-speed bi-directional (RS422) ports.

• USB: Micro-B USB 2.0 for PC setup and diagnostics.

• SeaTalk ng Compatible: Via DeviceNet adapter.

Electrical & Environmental

• Power: 12 V / 24 V DC (9.6 – 31.2 V operating).

• Power Consumption: < 3 W typical.

• Waterproof: IPx6 & IPx7 marine rating.

• Operating Temp: –15 °C to +55 °C.

Package Contents

• AIS700 Class B AIS transceiver

• GNSS antenna with 10 m cable & mount

• Power/data cable (2 m)

• VHF antenna interconnect cable (1 m)

• DeviceNet to SeaTalk ng adapter cable (1 m)

• Mounting hardware & documentation

• Pro-AIS Programming Software (CD-ROM)

⭐ Key Features

• Full AIS Transceive Capability: Sends your vessel’s AIS information and receives AIS from other craft, improving safety and awareness.

• Built-In Antenna Splitter: Share your VHF antenna without an external splitter — faster install and less hardware.

• SO-TDMA Technology: Latest time-division protocol for longer range and quicker AIS reporting.

• Integrated GPS: High-performance GNSS for position reporting and DSC accuracy.

• Multi-Network Compatibility: Works with NMEA 2000, NMEA 0183, and SeaTalk ng systems.

• Silent Mode: Allows receiving AIS info without transmitting (optional security feature).

• PC Connectivity: USB port for setup, diagnostics, and optional SD-card AIS logging.

ℹ️ Note on Programming

In the U.S., FCC regulations require that Class B AIS transceivers be programmed with a valid MMSI and vessel info by a licensed technician or dealer before active use.
