Minn Kota DeckHand 40 - 1810140

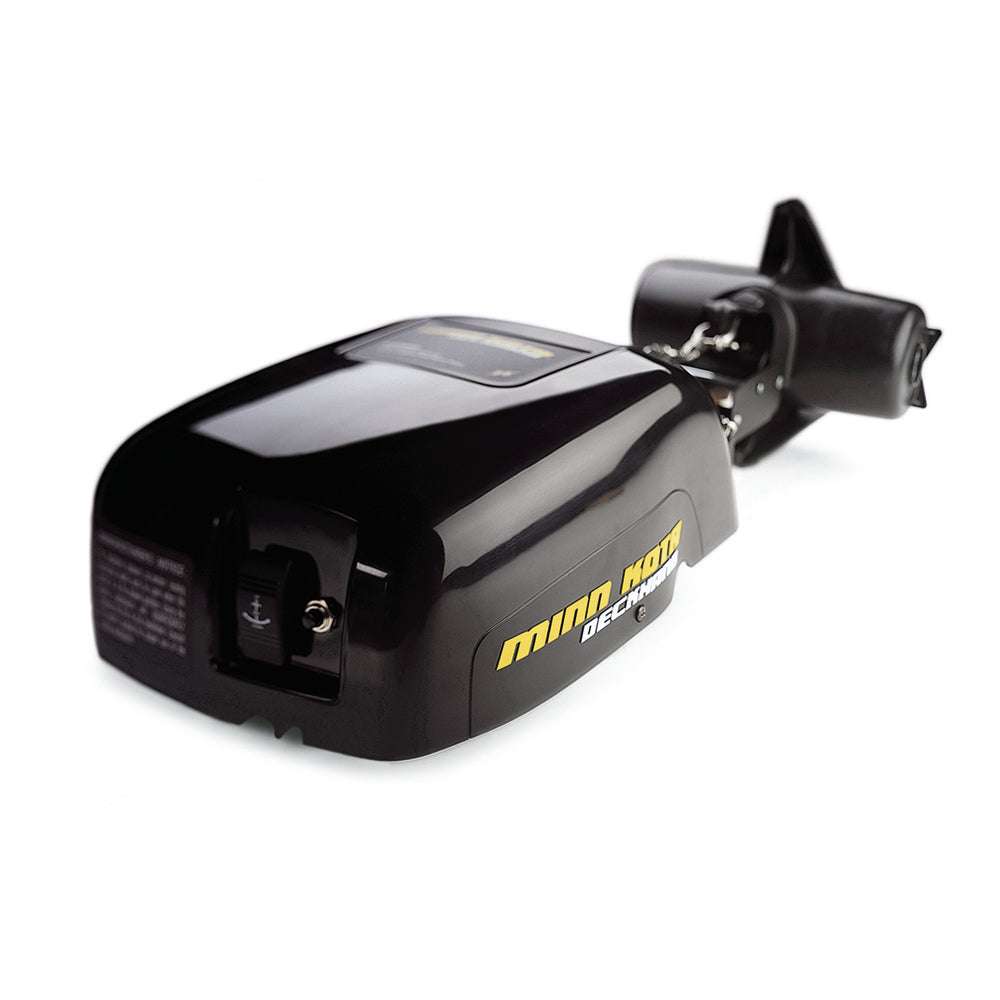

Minn Kota DeckHand 40 Electric Anchor Winch – 1810140

The Minn Kota DeckHand 40 (1810140) is a reliable and easy-to-use electric anchor winch designed to take the effort out of anchoring. With the push of a button, you can automatically deploy and retrieve your anchor, making it ideal for fishing, cruising, and positioning your boat with precision.

Built for performance, the DeckHand 40 is rated for anchors between 20 and 40 lbs, providing dependable holding power for a wide range of boats. It comes pre-spooled with 100 feet of 800 lb-test nylon rope, ensuring strength and durability in demanding marine conditions.

The included universal davit can be mounted directly to the unit or positioned remotely on the deck, allowing for flexible installation. It also stores the anchor horizontally, reducing swing and improving safety while underway.

Designed with convenience in mind, the system features a built-in stow and deploy switch, while an optional corded remote (sold separately) allows operation from up to 25 feet away.  An integrated anti-drag system helps detect the bottom and manage rope tension for controlled anchoring.

Powered by a 12V system, the DeckHand 40 delivers efficient operation and dependable performance, making it a trusted choice for anglers and recreational boaters alike.

Key Features & Performance

• Automatic Operation: Raise and lower your anchor at the touch of a button using the integrated stow/deploy switch located on the base of the unit.

• Auto-Drift System: A specialized anti-drag sensor detects when the anchor touches the bottom, automatically stopping the motor to allow for controlled drifting.

• Universal Davit: The included davit can be mounted directly to the base or in a remote position on the deck. It is designed to stow the anchor horizontally, effectively eliminating anchor swing while underway.

• Heavy-Duty Line: Comes pre-spooled with 100 feet of 800-lb test nylon rope, providing ample length and strength for most freshwater depths.

• Quick Changes: Includes an anchor shackle, allowing you to switch between different anchor styles quickly without untying knots.

In The Box

• (1) Minn Kota DeckHand 40 Winch Unit

• (1) Universal Davit Assembly

• (1) 100' Pre-spooled Nylon Rope

• (1) Anchor Shackle

• Note: Anchor and mounting bolts are not included and must be purchased separately.

Specifications

• Brand: Minn Kota

• Model: DeckHand 40 (DH-40)

• Part Number: 1810140

• Voltage: 12V

• Anchor Capacity: 20–40 lbs

• Rope Length: 100 ft

• Rope Strength: 800 lb test

• Mount Type: Deck mount with universal davit

• Application: Boat anchoring and positioning

Make anchoring effortless with the Minn Kota DeckHand 40, delivering convenience, control, and reliable performance for every trip on the water.

Installation Tip: The davit must overhang the bow by approximately 9 inches to ensure the anchor clears the boat during deployment. Additionally, ensure the rope enters the unit at a right angle to the spool shaft to prevent bunching or tangling.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Minn Kota
Manufacturer Part No : 1810140
UPC : 029402017843
