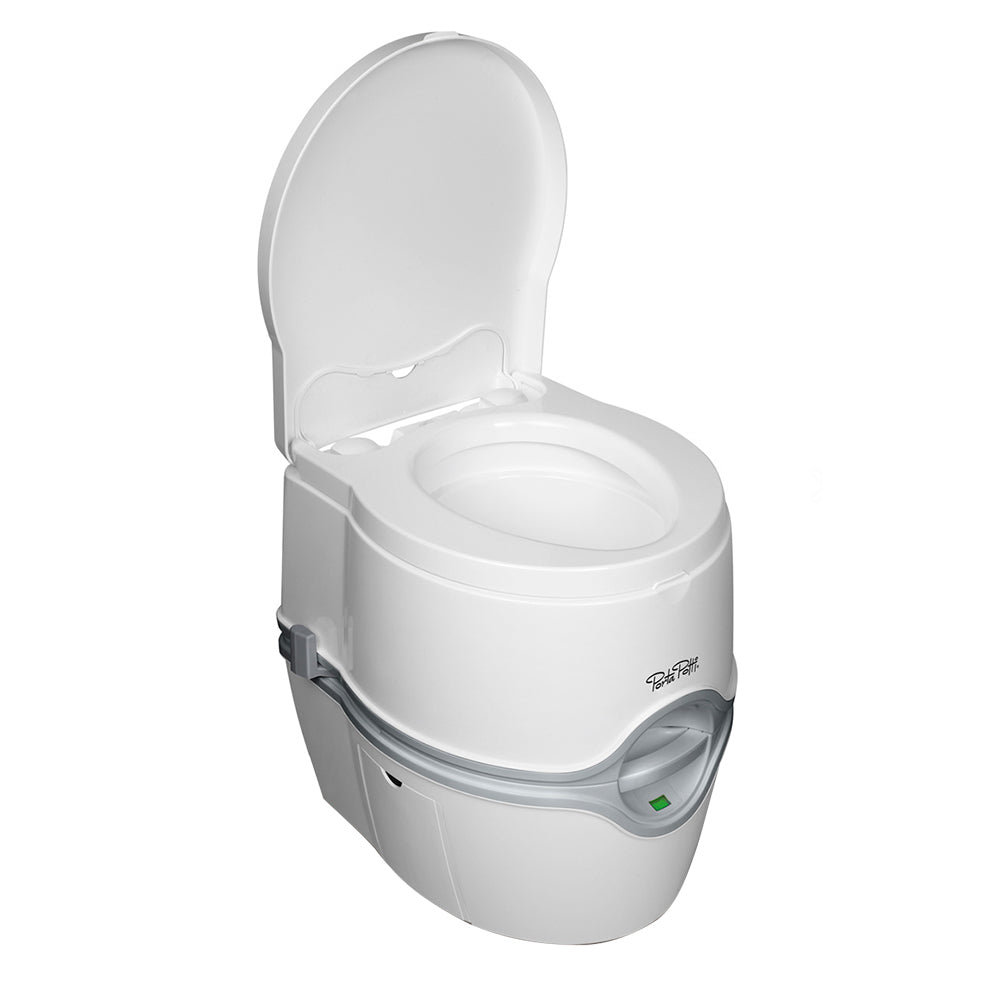

Thetford Porta Potti 565E Curve Portable Toilet - 92306
$160.99
$262.35
Unit price
/
Unavailable
SKU:
70529
Manufacturer Part #: 92306
Couldn't load pickup availability
Thetford Porta Potti 565E Curve Portable Toilet – Electric Flush | MPN: 92306
Experience the comfort of home wherever your adventures take you with the Thetford Porta Potti 565E Curve Portable Toilet (Part Number: 92306). Featuring an elegant, award-winning curved design and a comfortable 17.6-inch residential seating height, the 565E is Thetford’s flagship portable toilet—ideal for boats, RVs, camping trips, tiny homes, off-grid cabins, and emergency preparedness.
Powered by a battery-operated electric pump, the Porta Potti 565E delivers a smooth, effortless button-press flush that provides thorough bowl coverage while conserving water. Designed with a 4.0-gallon fresh water tank and a high-capacity 5.5-gallon waste tank, this unit yields up to 56 flushes per fill. Dual visual level indicators for both fresh water and waste eliminate guesswork, letting you know exactly when it’s time to refill or empty.
Key Features & Performance Advantages
-
Effortless Battery-Powered Flush: Integrated electric pump runs on 6 standard AA batteries (included) for smooth, hands-free flushing at the press of a button.
-
Residential Household Height: 17.6-inch seat height and ergonomic design provide the feel and comfort of a standard home toilet.
-
Dual Tank Level Indicators: Easy-to-read visual gauges monitor both fresh water supply and waste tank capacity.
-
Odor-Tight Sealed Valve: Hermetically sealed rotating valve blade locks in waste odors and prevents leaks during transport or rough waters.
-
Clean, Splash-Free Emptying: Features an integrated rotating pour-out spout with a pressure-relief vent button for smooth, splashless dumping.
-
Hidden Toilet Paper Holder: Built-in paper dispenser neatly conceals toilet paper inside the lower base.
-
Secure Hold-Down Kit Compatible: Optional hold-down kit (sold separately) secures the unit to boat decks or RV floorboards during transit.
Technical Specifications
| Specification | Details |
| Manufacturer | Thetford Corporation |
| Model Name | Porta Potti 565E (Curve) |
| Part Number (MPN) | 92306 |
| Flush Type | Battery-Operated Electric Pump (6x AA Included) |
| Fresh Water Tank Capacity | 4.0 Gallons (15 Liters) |
| Waste Water Tank Capacity | 5.5 Gallons (21 Liters) |
| Average Flushes Per Fill | ~56 Flushes |
| Seat Height | 17.6 Inches (44.7 cm) |
| Dimensions (H x W x D) | 17.6" H x 15.2" W x 17.7" D |
| Product Weight (Empty) | ~11.7 lbs (5.3 kg) |
| Color | White Base with Gray Accents |
| Indicators | Fresh Water Level & Waste Tank Level Gauges |
What Is Included in the Box?
-
(1) Thetford Porta Potti 565E Curve Portable Toilet (MPN: 92306)
-
(6) AA Batteries (Pre-installed or included for electric pump)
-
(1) Sample Bottle of Aqua-Kem / Campa-Chem Waste Treatment
-
(1) Owner’s Manual & Maintenance Guide
Frequently Asked Questions (FAQ)
Q: How does the electric flush mechanism work on the 565E?
A: The 565E uses an internal electric motor powered by 6 AA batteries. Pushing the flush button triggers the pump to draw clean water from the top tank and swirl it around the bowl for a thorough rinse.
Q: How do you empty the waste tank without making a mess?
A: Disconnect the top fresh water tank from the bottom waste tank using the rear latch. Swivel out the integrated pour-out spout, press the air relief vent button to prevent glugging, and pour the contents directly into a dump station or residential toilet.
Q: Is there a bracket to mount this down to a boat deck or trailer floor?
A: Yes, Thetford manufactures an optional Hold-Down Kit (Part #92415) specifically designed to lock the 565E Curve securely in place during movement.
Caution: Do not use stiff brushes or homemade products to clean or lubricate the valve and seal, as these will damage the seals and surfaces, causing odors to escape from holding tanks. Thetford recommends using Aqua-Clean and toilet seal lubricants.
