Product Overview

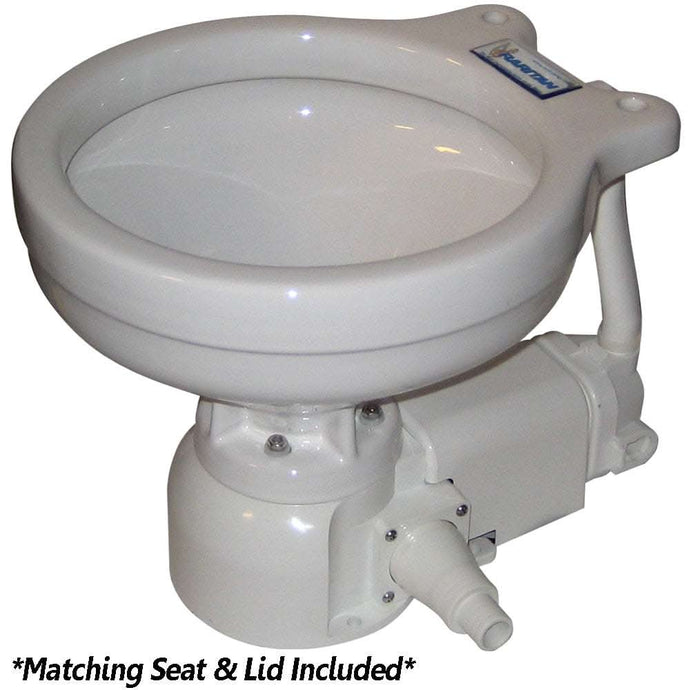

The Raritan Sea Era Marine Size Electric Toilet (160MI012) delivers reliable, heavy-duty waste management in a compact design built specifically for marine environments. Engineered as an economical and powerful electric head solution, this 12V unit features an integrated intake and macerating discharge pump, making installation straightforward while maximizing efficiency on the water.

Built with a high-grade vitreous china marine-size bowl and a slow-close seat, the Sea Era combines home-like comfort with rugged marine reliability. Its straight discharge configuration and heavy-duty stainless steel macerating blades ensure quick, clog-free operation cycle after cycle.

Key Features & Benefits

• Integral Intake & Macerator Pump: Combines raw water intake pumping and waste maceration into a single 12V DC motor assembly for streamlined installation.

• Heavy-Duty Macerating Action: Precision stainless steel blades grind waste effectively to prevent plumbing line clogs and simplify holding tank discharge.

• Compact Marine-Size Footprint: Compact vitreous china bowl fits neatly into tight boat heads without sacrificing durability or comfort.

• Flexible Water Routing: Includes interchangeable $3/4''$ ($19\text{ mm}$) intake fittings (straight and 90°) to easily adapt to existing plumbing layouts.

• Quiet & Efficient Operation: Engineered to draw low power (15A continuous) while delivering fast, efficient bowl evacuation.

• Easy Maintenance: Disassembles quickly for servicing without needing to unbolt the base from the deck.

In the Box:

• 1x Marine-Size White Vitreous China Bowl Assembly with Slow-Close Seat & Lid

• 1x Macerating Base Assembly with Integrated Intake & Discharge Pump (12V DC)

• 1x Heavy-Duty Marine Push-Button Switch

• 3x Interchangeable $3/4''$ ($19\text{ mm}$) Hose Barb Fittings (2x Straight, 1x 90°) for raw water inlet routing

• 1x In-Line Raw Water Strainer

• 1x Built-in Combination Discharge Fitting (accepts $1''$ or $1\text{--}1/2''$ discharge line)

• Installation Hardware & Owner's Manual / Guide

Product Specifications
