Faria Chesapeake Black SS Inboard Gauge Boxed Set | 6-Gauge Kit (KTF003)

Upgrade your boat’s helm with the timeless style and reliable accuracy of the Faria Chesapeake Black SS 6-Gauge Boxed Set (KTF003). Specifically engineered for gas-powered inboard marine engines, this complete premium instrument kit bundles Faria’s most essential gauges into one convenient package.

Whether you are performing a full dash restoration or replacing dated factory equipment, the Chesapeake Black SS series delivers an elegant, high-contrast look that complements any dashboard. Every gauge features a polished stainless steel bezel, a bold black perimeter-lighted dial, stylized blue and white graphics, a crisp white pointer, and a scratch-resistant domed glass lens that prevents fogging.

Key Features & Marine-Grade Construction

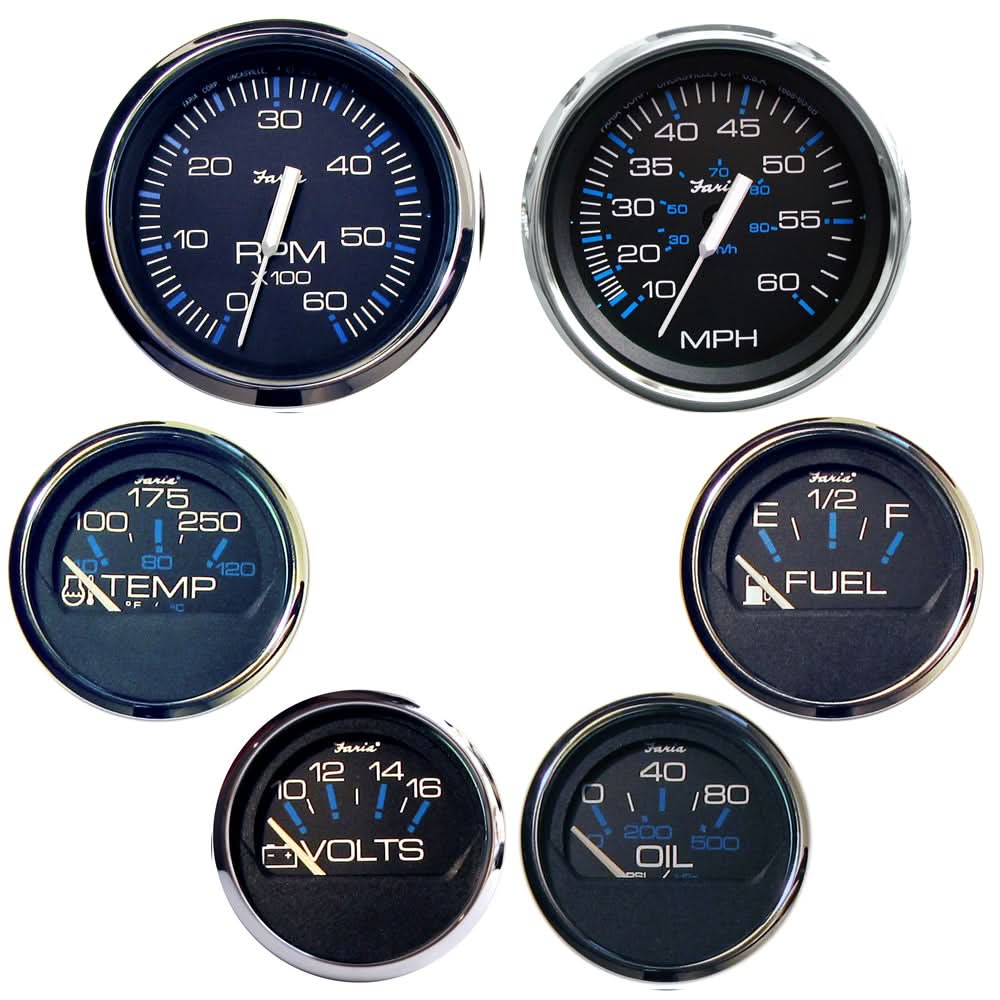

• Complete Inboard Coverage: Includes a matching 6000 RPM tachometer, 60 MPH mechanical speedometer, fuel level gauge, voltmeter, water temperature gauge, and oil pressure gauge.

• Chesapeake Black SS Styling: Perimeter lighting ensures excellent readability during night operation, while the polished stainless steel bezels resist corrosion in harsh marine environments.

• Engineered for Accuracy: Built with rugged internal movements designed to withstand constant vibration, pounding waves, and UV exposure.

• Standard Dash Fitment: Designed to fit standard 4-inch and 2-inch instrument panel cutouts for straightforward installation.

What is In the Box?

This 6-gauge marine instrument box set includes:

• Tachometer (6000 RPM): 4" hole size (Part # 33710) – Configured for gas inboard engines

• Speedometer (60 MPH): 4" hole size (Part # 33704) – Mechanical operation

• Pitot Speedometer Installation Kit: Includes pickup body, impact-resistant tubing, and mounting hardware

• Fuel Level Gauge: 2" hole size (Part # 13701) – Standard US resistance (240-33 Ohms)

• Voltmeter (10-16 VDC): 2" hole size (Part # 13705)

• Water Temperature Gauge (100-250°F): 2" hole size (Part # 13704) – Standard US resistance

• Oil Pressure Gauge (0-80 PSI): 2" hole size (Part # 13702) – Standard US resistance

• Mounting Hardware: Mounting brackets and nuts for each gauge

Note on Compatibility: This gauge set utilizes standard US-resistance values (240 Ohms Empty / 33 Ohms Full for fuel; standard US curves for pressure and temperature). Engine sending units are sold separately.

What is NOT Included

• Engine Senders: Apart from the mechanical speedometer pitot kit, this set does not include any engine sending units or adapters (such as oil pressure senders, water temperature senders, or fuel tank float senders). Those must be purchased separately or matched to your existing US-resistance (240-33 Ohm) senders.

• Gauge Covers: Hard protective covers/caps are not included in this kit.

Specifications

• Manufacturer: Faria Beede Instruments

• Part Number: KTF003

• Series: Chesapeake Black SS

• Application: Gas Inboard Motors / Stern Drives

• Voltage: 12 VDC

• Lens Type: Domed Scratch-Resistant Glass
