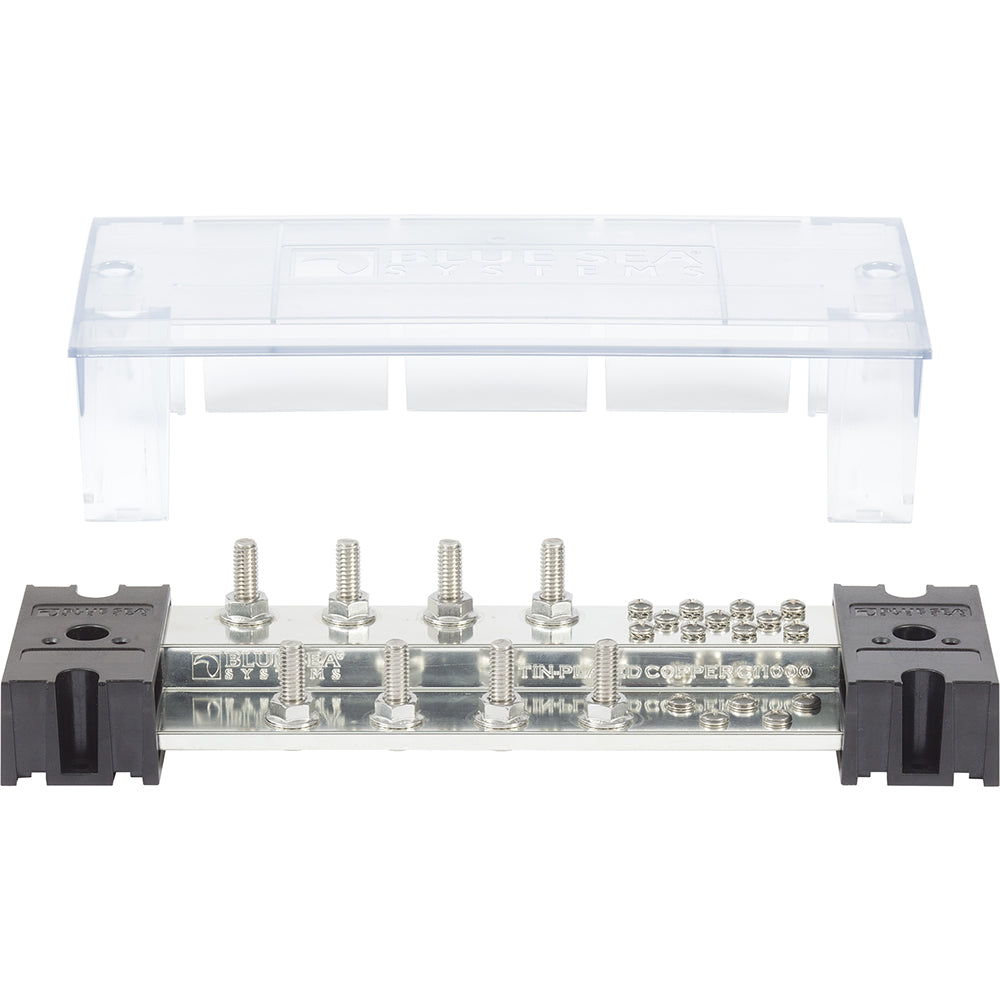

PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 8

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 5/16

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
