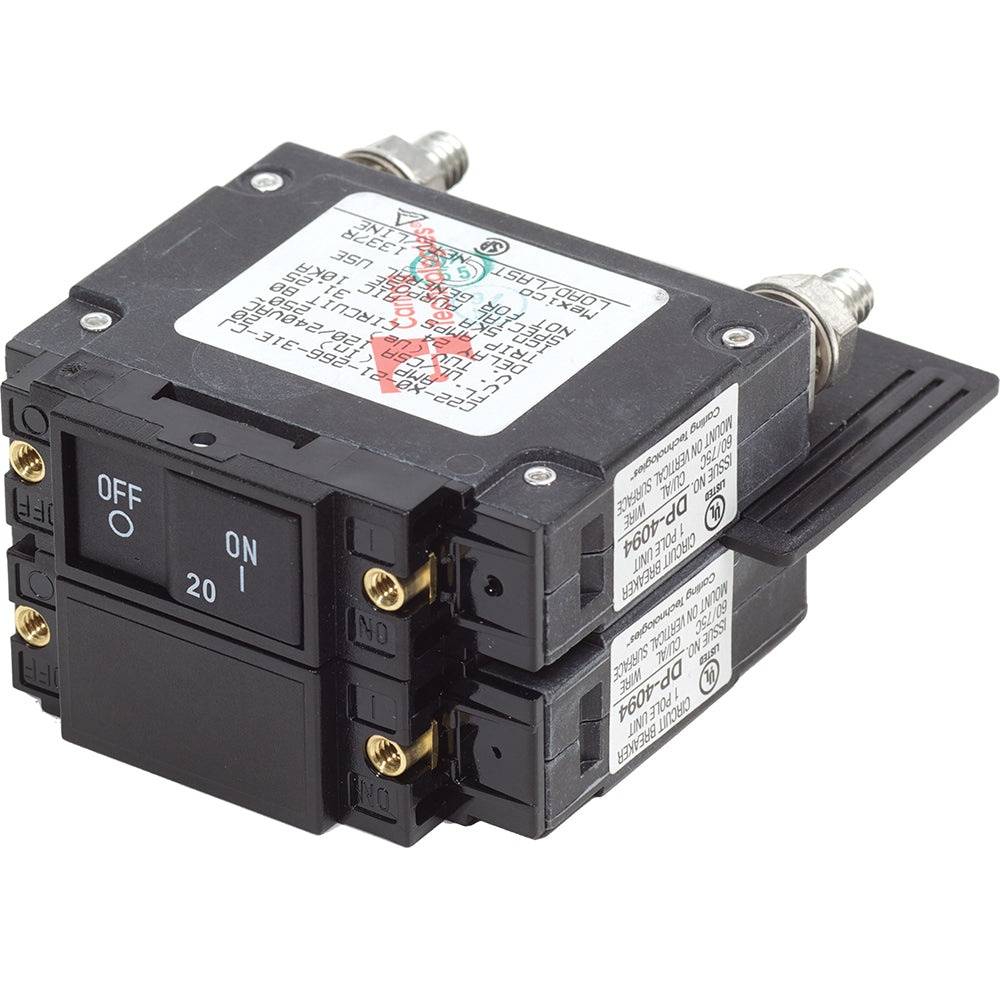

Blue Sea 7463 UL-489 Circuit Breaker - 20A Flat Rocker - 7463

7463 UL-489 Circuit Breaker - 20A Flat Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage: 20A AC
• Actuator Style: Flat Rocker
• Poles: 2
• Maximum Voltage: 240V AC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)
