Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A - 5502100
$64.99
$99.83
Unit price
/
Unavailable
SKU:
64355
Manufacturer Part #: 5502100
Couldn't load pickup availability

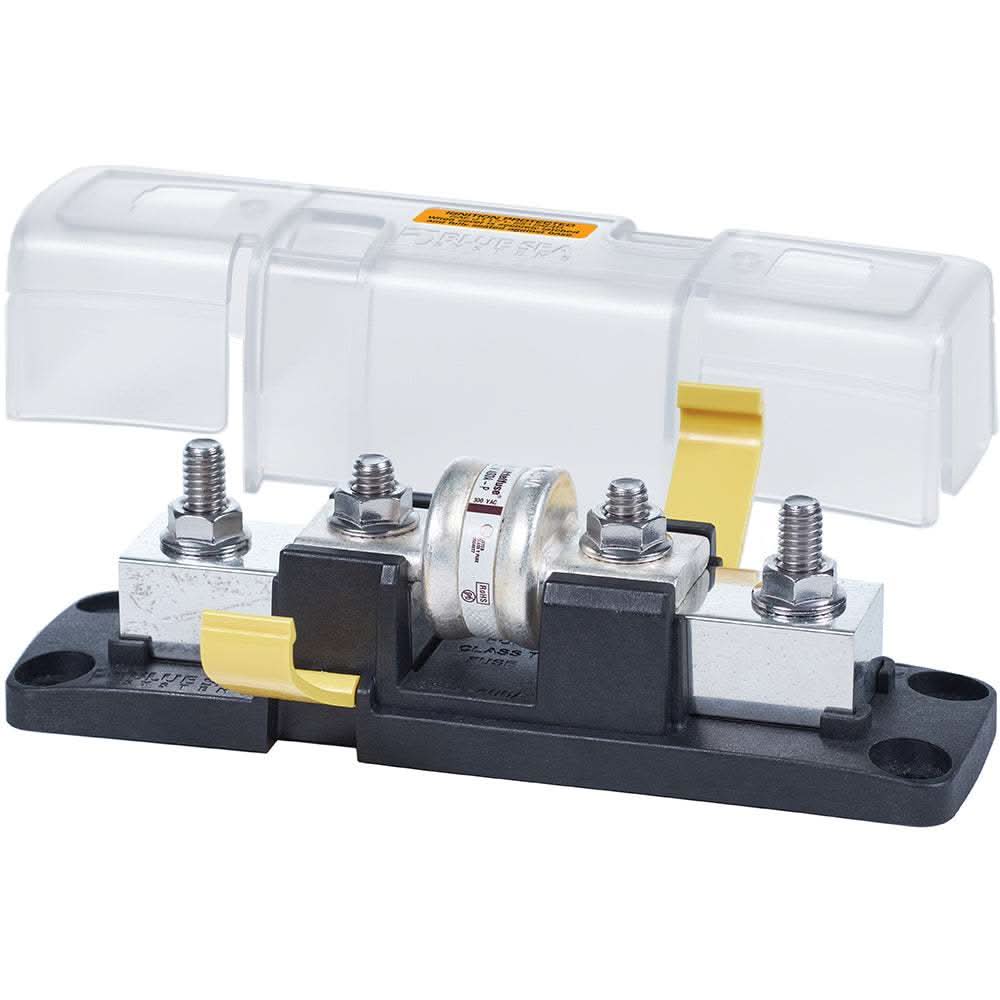

Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
Specifications:
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 400A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 3/8"-16 (M10)
Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A - 5502100 is backordered and will ship as soon as it is back in stock.
