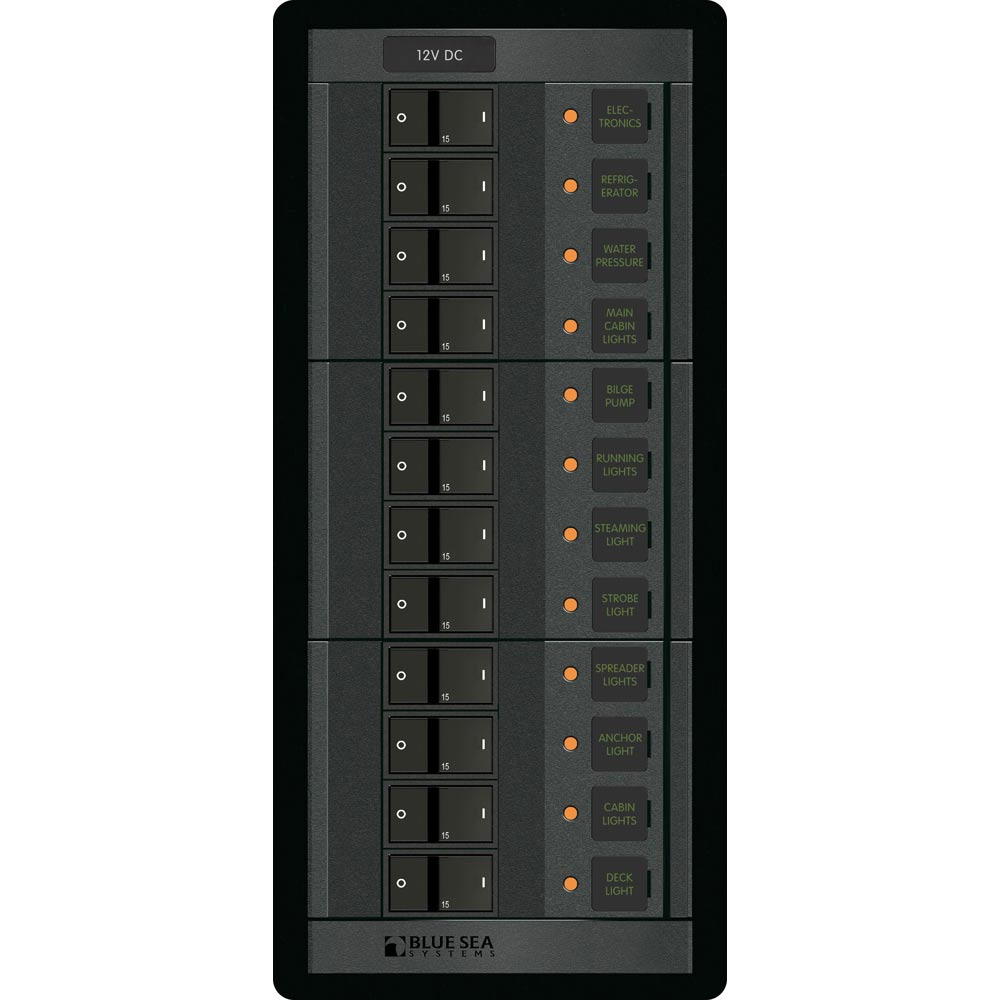

Blue Sea 1223 12V DC 12 Position - 1223

12 Volt DC 12 Position

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions:12

• Nominal Voltage:12V DC

• Maximum Amperage*:100A per bus

• Height:10.75" (273.05mm)

• Width:4.88" (123.95mm)

• Depth:3.00" (76.2mm)

• Weight:4.85lb (2.2kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 1223
UPC : 632085012236
