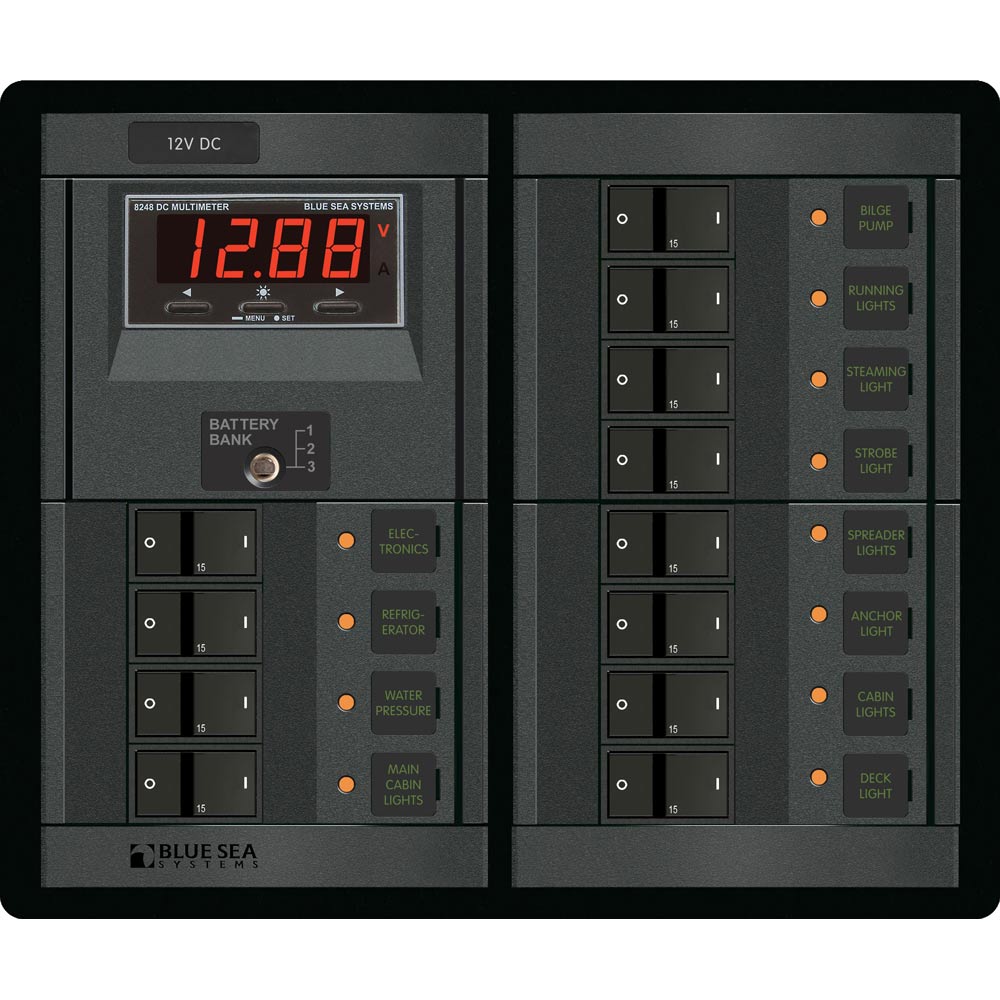

Blue Sea 1217 12V DC 12 Position w/Digital Meter - 1217

12 Volt DC 12 Position w/Digital Meter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions:12

• Nominal Voltage:12V DC

• Maximum Amperage*:100A per bus

• Height:7.75" (196.85mm)

• Width:9.25" (234.95mm)

• Depth:4.00" (101.6mm)

• Weight:5.99lb (2.72kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.


Includes:
(12) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 1217
UPC : 632085012175
