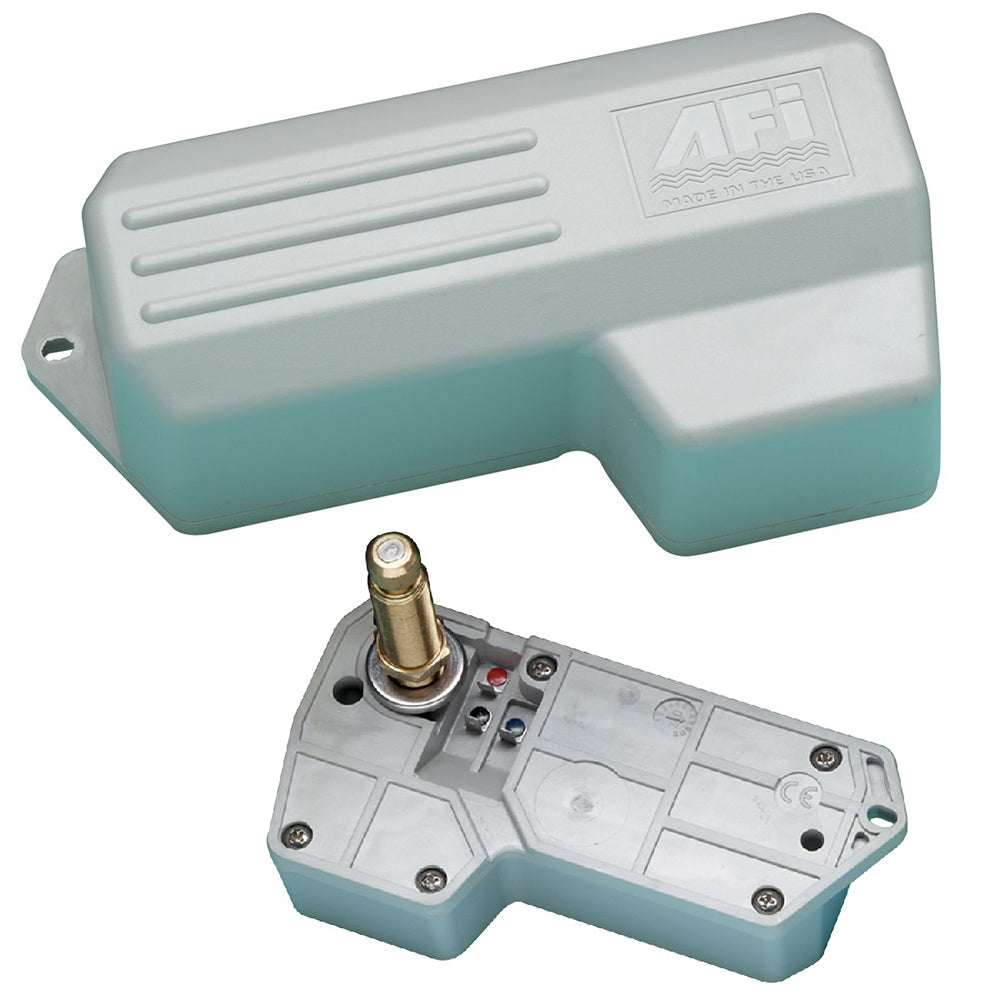

Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80° - 36180
Manufacturer Part #: 36180
Couldn't load pickup availability
Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80°
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.
Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Measures approximately 6.625" L x 3.375"W x 2" D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps+
Product : MARINCO WIPER MOTOR 1000 SERIES 12V 1.5" SHAFT
Manufacturer : Marinco
Manufacturer Part No : 36180
Product : MARINCO WIPER MOTOR 1000 SERIES 12V 1.5" SHAFT
Marinco Wiper Motor 1000 Series - 12V - 1.5" Shaft - 80° - 36180 is backordered and will ship as soon as it is back in stock.
