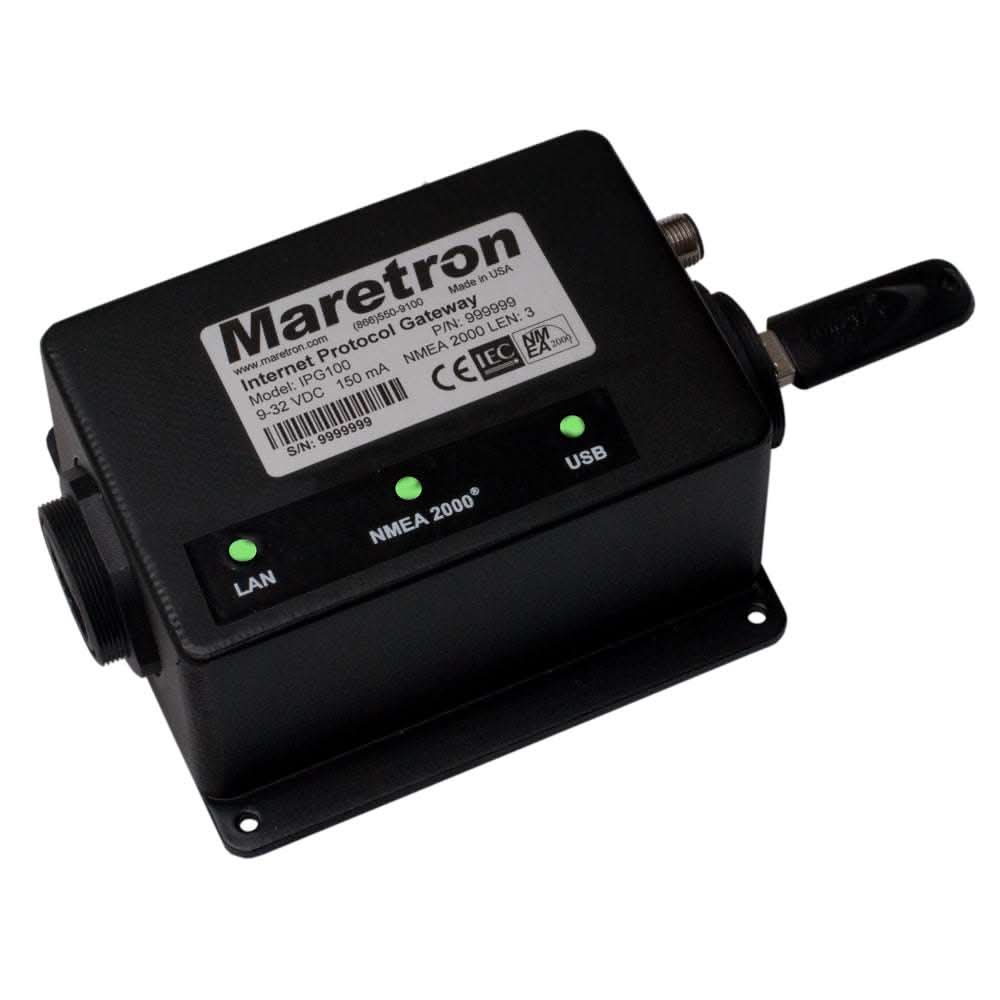

Maretron IPG100 Internet Protocol Gateway - IPG100-01
Manufacturer Part #: IPG100-01
Couldn't load pickup availability
Maretron IPG100 Internet Protocol Gateway – IPG100-01
Unlock seamless connectivity between your vessel’s NMEA 2000 network and modern IP-based devices with the Maretron IPG100 Internet Protocol Gateway (IPG100-01). This advanced gateway bridges your boat’s onboard sensor data to IP networks—enabling remote monitoring, data sharing, and integration with smartphones, tablets, chartplotters, and networked displays.
The IPG100 acts as a translator between the NMEA 2000 marine data backbone and Ethernet-based systems, making key sensor information—such as engine parameters, depth, speed, heading, environmental sensors, tank levels, alarms, and more—accessible on any connected device. It supports seamless integration with Maretron’s mobile and desktop software as well as third-party apps that communicate over standard TCP/IP protocols.
Designed for rugged marine environments, the IPG100 features corrosion-resistant connectors, robust housing, and easy plug-and-play setup. Whether you want to view vessel data over Wi-Fi from a cockpit tablet, integrate with onboard automation systems, or log trip information remotely, the IPG100 provides a flexible and reliable gateway solution.
Key Performance Features
-
Remote Vessel Management: Once connected to the internet via an onboard router or satellite system, the IPG100 links to Maretron’s Real Time Cloud Service. This allows you to check tank levels, battery status, or engine data from anywhere in the world.
-
Versatile Device Support: It enables standard consumer electronics (iOS, Android, Windows) to function as full-featured marine displays. You are no longer limited to fixed, dedicated helm monitors.
-
Plug-and-Play Integration: The gateway features a standard NMEA 2000 Micro-C connector and an RJ-45 Ethernet port, making it compatible with conventional networking hardware like wireless modems and switches.
-
Opto-Isolated Protection: The NMEA 2000 connection is opto-isolated to protect your critical engine and navigation data from electrical interference or ground loops originating from the IP network.
-
USB Expansion: Includes a dedicated USB port specifically for the N2KView Hardware License Key, which is required to authorize remote software clients.
What's In The Box
The IPG100-01 package typically includes:
-
IPG100 Gateway Unit: The main processing hardware with NMEA 2000, Ethernet, and USB ports.
-
Mounting Hardware: Stainless steel screws for secure bulkhead installation.
-
User Manual: Comprehensive guide for network configuration and N2KServer setup.
-
Note: The N2KView License Key (USB Dongle) and N2KView software are usually sold separately and are required for full system functionality.
Technical Specifications
-
Brand: Maretron
-
Model: Internet Protocol Gateway
-
Part Number: IPG100-01
-
Network Interfaces: NMEA 2000 backbone and Ethernet/IP
-
Data Protocol: Translates NMEA 2000 PGNs to IP-accessible formats
-
Power Source: Powered from the NMEA 2000 network
-
Environmental Rating: Marine-ready enclosure and sealed connectors
-
Use Case: NMEA 2000 network to IP/Ethernet data gateway
Benefits
-
Provides real-time vessel data access on IP devices
-
Enables remote monitoring and diagnostics from anywhere on board
-
Simplifies data integration with other network systems
-
Enhances onboard situational awareness and automation
-
Supports future marine network expansion
Applications
-
Displaying engine, tank, and environmental data on tablets or phones
-
Integrating vessel data with onboard Wi-Fi/Ethernet systems
-
Connecting NMEA 2000 sensors to navigation and monitoring software
-
Remote performance logging and diagnostics
-
Smart boat automation and alert systems
Summary for the User
The IPG100 is an essential upgrade for boat owners who want off-vessel monitoring. It transforms your boat's data into a format that can be viewed on your personal devices, providing peace of mind when you are away from the dock.
Installation Tip: For the most reliable remote access, ensure your onboard internet router has a stable power supply and is configured to allow the IPG100 to communicate with the Maretron Cloud.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Maretron
Manufacturer Part No : IPG100-01
UPC : 873804003061
