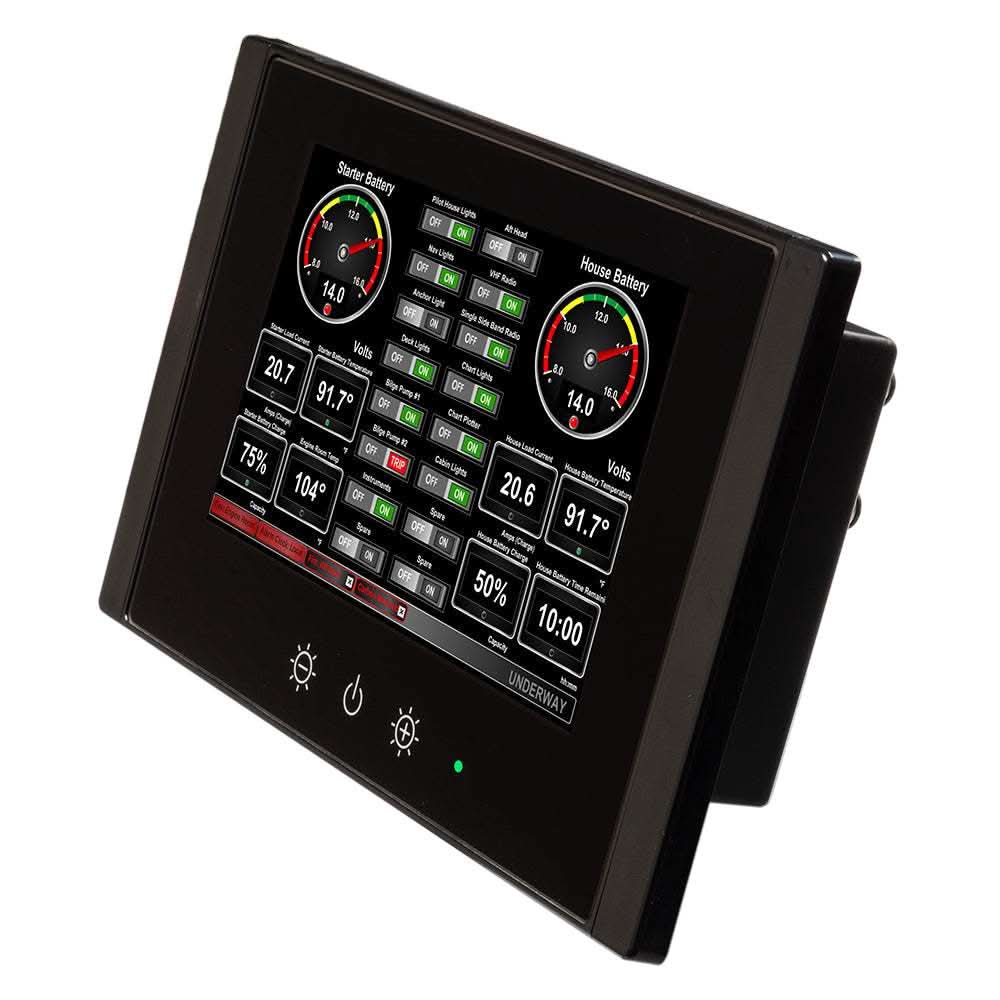

Maretron 8" Vessel Monitoring & Control Touchscreen – TSM810C-01

The Maretron TSM810C-01 is a premium 8" vessel monitoring and control touchscreen that brings advanced visibility and interactive control to your boat’s NMEA 2000® network. Featuring Maretron’s powerful N2KView® software built-in, this marine-rated touchscreen serves as a central hub for monitoring and managing critical system data in real time — from navigation to propulsion, environmental sensors, power systems, alarms, and more. (Defender)

Designed for marine environments, the TSM810C combines a sunlight-readable 8" TFT LCD screen with a durable, waterproof front panel and rugged solid-state construction. Its fan-free design consumes low power while providing silent operation and long-term reliability in the motion of open water. Thanks to dual isolated NMEA 2000® CAN bus connections, you can link this display to single or redundant networks for added system resilience. (Defender)

The touchscreen also offers flexible integration options — including USB ports for keyboards or pointing devices and an Ethernet port for connecting IP cameras, network services, or remote monitoring. Whether installed at the helm or another station onboard, this display gives captains and crew a customizable, intuitive interface for managing vessel operations. (Maretron)

What You Can Monitor & Control

The TSM810C lets you visualize and manage a wide array of vessel functions on one screen, such as:
• AC power and shore / generator status
• Battery systems and distribution
• Engine and transmission parameters
• Fuel management and tank levels
• GPS, heading, speed, and navigation data
• Environmental sensors (wind, weather, water temp)
• Alarms and system diagnostics
• Cameras and auxiliary IP devices

Technical Specifications

• Display: 8" TFT LCD, LED backlit, projected capacitive touchscreen

• Resolution: 800 × 480 (wide 5:3)

• Brightness: ~1350 nits (optically bonded) for excellent daylight readability

• Power: 10-32 V DC (dedicated), 8-32 V DC (NMEA 2000®)

• Network: Dual isolated NMEA 2000® CAN bus ports (M12)

• Ports: 1× USB 2.0, 1× USB 3.0, 1× Ethernet RJ-45

• Operating Temp: Designed for marine ambient conditions

• Mounting: Flush or VESA compatible

• Front IP Rating: IP66 (water jets) / Rear: IP22

Benefits

• Centralized vessel oversight — one touchscreen for everything from navigation to systems stats.

• Custom dashboards & layouts via N2KView® software for tailored visibility.

• Reliable marine durability — waterproof front, fanless cooling, solid-state storage.

• Enhanced situational awareness & control — connect cameras, keyboards, and sensors.

Ideal For

• Cruisers and yachts with integrated NMEA 2000® networks

• Boats up to ~150 ft and commercial vessels

• Captains who want consolidated system control

• Integrating navigation and systems feedback in one interface

Summary for the User

The TSM810C-01 is the ideal choice for boaters who want a dedicated, permanent "brain" for their boat. Unlike a tablet, this is a marine-grade instrument designed to be powered 24/7. It provides a professional, integrated look to any dash while offering the most powerful monitoring capabilities in the Maretron lineup.

Installation Tip: The TSM810C communicates with the NMEA 2000 network via an Ethernet connection to an IPG100 Gateway. Ensure you have a gateway installed on your backbone to feed data to this display.

Manufacturer : Maretron
Manufacturer Part No : TSM810C-01
