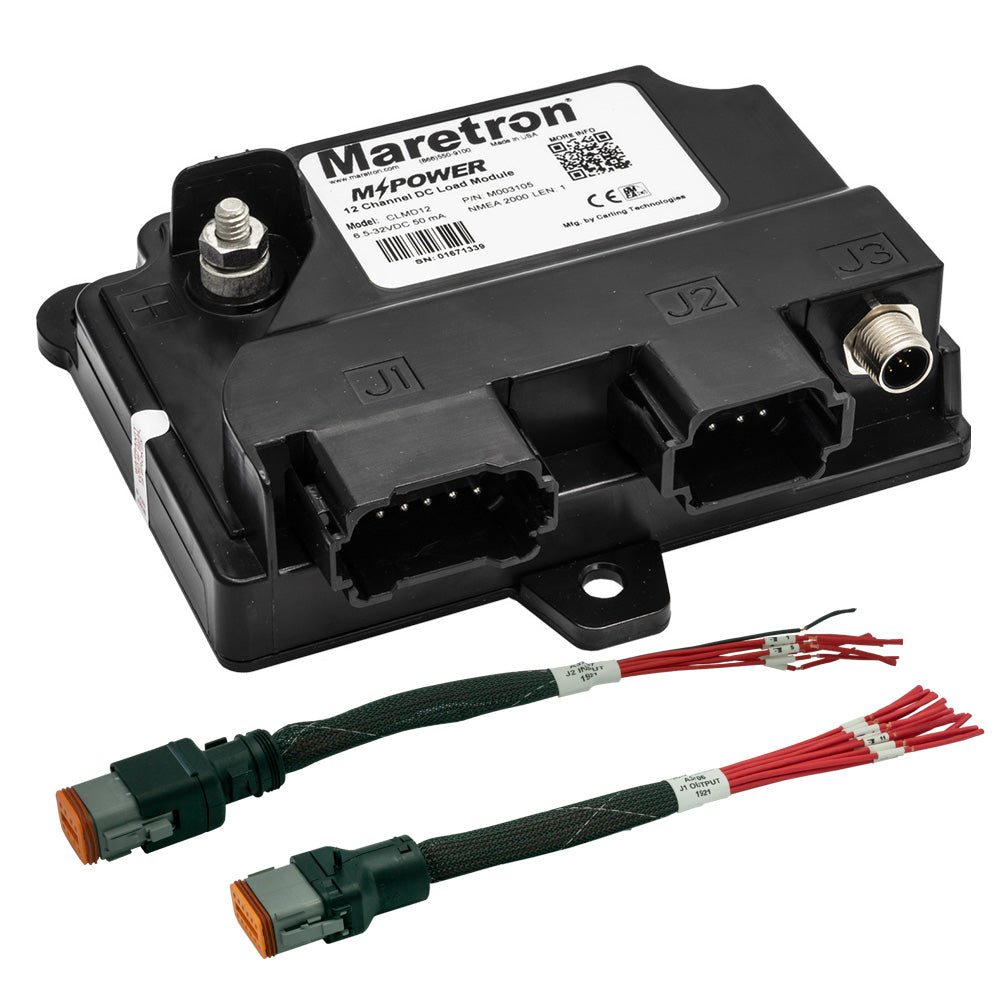

Maretron MPower 12 Channel DC Load Module NMEA 2000 with 12-inch Pigtail Adapter Cable (Part Number: CLMD12-R) - CLMD12-R

Maretron MPower 12 Channel DC Load Module NMEA 2000 with 12-inch Pigtail Adapter Cable (Part Number: CLMD12-R)

The Maretron MPower CLMD12 is a compact, high-performance 12-channel DC load controller designed for vessels of all sizes. This module features a robust NMEA 2000 interface, allowing seamless integration into your marine electrical system. With a total current capacity of 75 amps, it can handle various loads such as lights, pumps, motors, and electronic devices efficiently. The CLMD12 includes twelve electronic circuit breakers, with two capable of handling up to 12 amps, six up to 10 amps, and four up to 5 amps, providing flexible load management. Each breaker can be configured to trip at lower current levels using Maretron's N2KAnalyzer V3 software, offering precise circuit protection tailored to your needs. The module also supports paralleled circuits, enabling expanded load handling for larger systems. Its IP67 rating ensures durability against harsh marine environments, and it is ignition protected for safety onboard. The CLMD12 offers individual circuit current monitoring, providing real-time data to help identify overloaded or underperforming loads, such as burnt-out bulbs or electrical faults. For manual control, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed, offering additional flexibility. The module includes seven configurable hard-wired inputs, which can be used for switching breaker states or monitoring other data points like bilge alarms or hatch positions. Safety features include automatic overcurrent and thermal shutdowns, as well as lockable breakers to prevent accidental actuation. Applications for this versatile module include remote control of navigation and area lighting, alerting for burnt-out bulbs, and dimming control for lighting systems. Its advanced features make it a reliable choice for managing complex electrical loads on marine vessels, ensuring safety, efficiency, and ease of use.

Features:

• NMEA 2000 Interface for seamless marine network integration

• IP67 rated for durability in harsh marine environments

• Ignition protected for safety onboard

• Opto-isolated from NMEA 2000 network to prevent ground loops

• Twelve dimmable electronic circuit breakers (ECBs) for on/off control

• Two breakers capable of handling up to 12 Amps

• Six breakers capable of handling up to 10 Amps

• Four breakers capable of handling up to 5 Amps

• Individual breaker electrical current monitoring

• Configurable Power-Up breaker states (ON, OFF, or previous)

• Breakers can be locked to prevent inadvertent operation

• Seven configurable hard-wired inputs for switches or data signals

• Automatic ECB overcurrent shutdown for protection

• Automatic ECB thermal shutdown for overtemperature protection

BRAND: Maretron

Manufacturer Part Number: CLMD12-R
