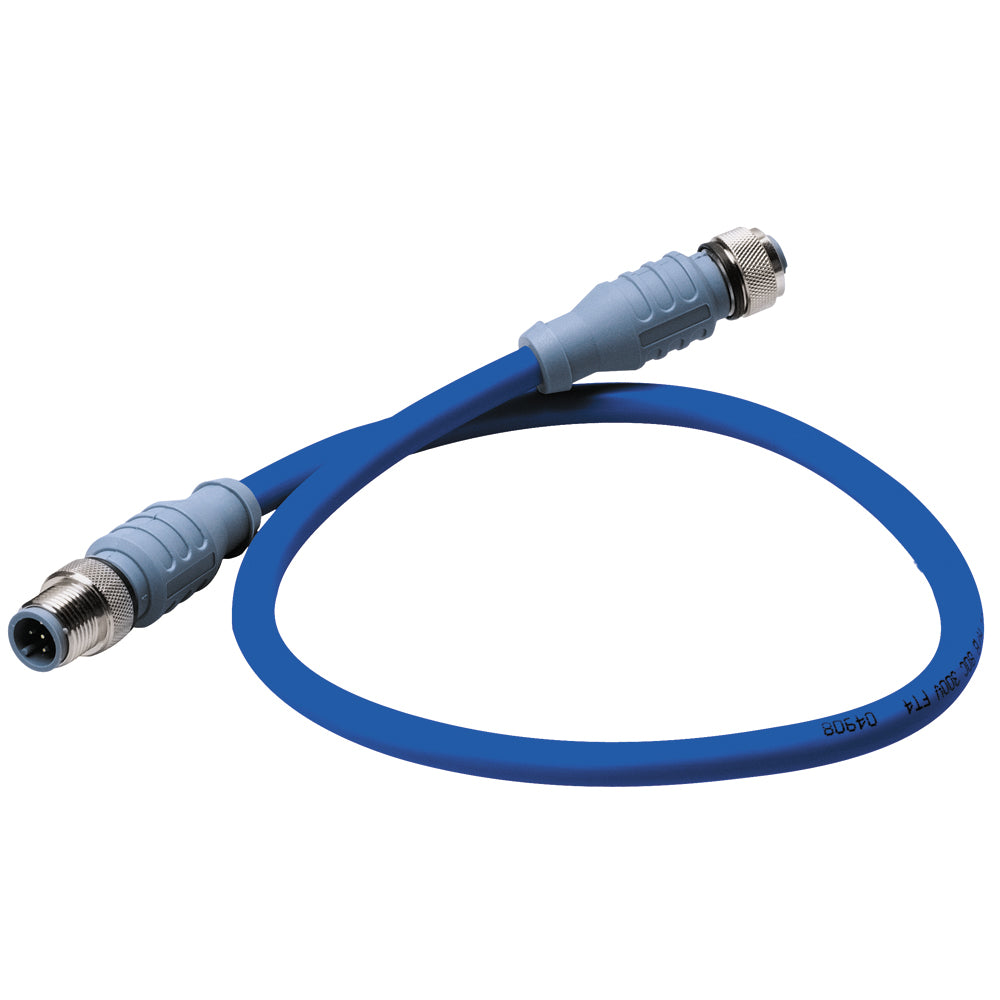

Maretron Mid Double-Ended Cordset - 8 Meter - Blue - DM-DB1-DF-08.0
$47.99
$52.40
Unit price
/
Unavailable
SKU:
47018
Manufacturer Part #: DM-DB1-DF-08.0
Couldn't load pickup availability
Maretron Mid Double-Ended Cordset - 8 M Blue
Mechanical:
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59"
Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V
Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3
Mechanical:
Electrical
Cable
ENVIRONMENTAL
APPROVALS
Maretron Mid Double-Ended Cordset - 8 Meter - Blue - DM-DB1-DF-08.0 is backordered and will ship as soon as it is back in stock.
