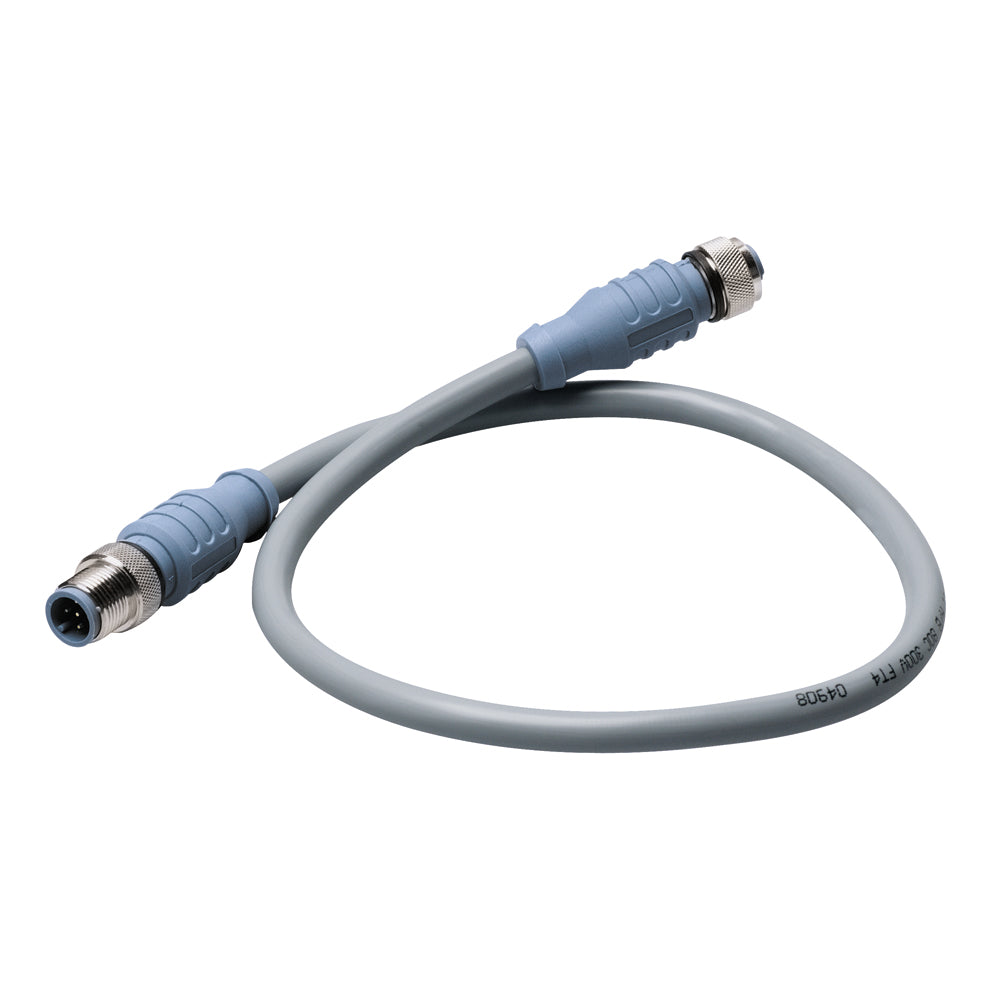

Maretron Micro Double-Ended Cordset 5 Meter - CM-CG1-CF-05.0
$38.99
$39.00
Unit price
/
Unavailable
SKU:
33359
Manufacturer Part #: CM-CG1-CF-05.0
Couldn't load pickup availability
Maretron Micro Double-Ended Cordset 5 Meter - CM-CG1-CF-05.0
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59?Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V
Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
Mechanical
Cable
Environmental
Approvals
Maretron Micro Double-Ended Cordset 5 Meter - CM-CG1-CF-05.0 is backordered and will ship as soon as it is back in stock.
Maretron Micro Double-Ended Cordset 5 Meter - CM-CG1-CF-05.0
$38.99
$39.00
Unit price
/
Unavailable
